AVR Assembler 101






4.96/5 (35 votes)
Learn the basic of the AVR micro controller and the assembly language
- Download shBrushAsm.js.zip - 1.4 KB
- Download AVRAssembler101.zip - 13.6 KB
- Download atmega1280_datasheet.zip - 4.6 MB
The AVR Assembler brush shBrushAsm.js.zip available as a download is a script to be used in conjunction with the Syntaxhighlighter script by Alex Gorbatchev. It has not been thoroughly tested so if you find any problems with it give me a shout.
In order to learn the assembler programming language some knowledge must be known about the hardware we are using. In this tutorial we will start with a brief introduction to the inner workings of the AVR micro controller then move on to pure assembler and finally show how to mix 'C' and assembler languages.
- Introduction
- Memory Configuration
- Accessing Memory
- Program Memory
- Data Memory
- Data Direct
- Data Indirect with Displacement
- Data Indirect
- Data Indirect wiith Pre-decrement
- Data Indirect with Post-increment
- EEPROM Memory
- Input/Output
- The Language
- Mixing languages
- Complete example assembler program
- Conclusion
- References
Introduction
Why on earth would anyone want to program in a low level language like Assembler when there are languages such as C, C++ and others that provide a layer of abstraction that takes all the drudgery out of programming?
- Some people are masochists.
- The code generated by the high level compiler won't fit in MPU's memory space.
- We have a need for speed.
- We are control freaks and need to control every aspect of the applications flow.
There is also another good reason to learn assembler, the more you know about the inner workings of the processor the more capable a programmer you will become. And even if you do decide that you need to write portions of your code in Assembler you are not restricted to just using Assmbler or higher level language we can mix them as long as we observe a few simple rules. For instance we could use 'C' as our main language but write the interrupt routines in assembler.
Memory Configuration

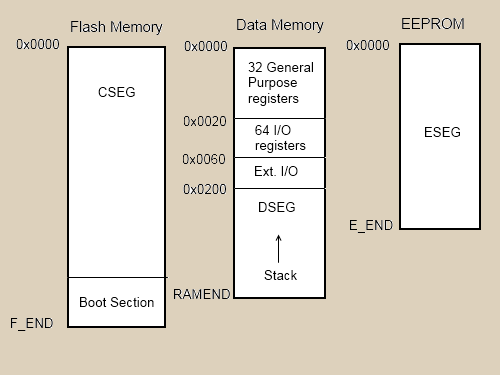

AVR uses a Harvard architecture which is an architecture with separate memories and buses for program and data. Instructions in the program memory are executed with a single level pipelining. This means that while one instruction is being executed, the next instruction is pre-fetched from the program memory. This concept enables most instructions to be executed at every clock cycle. The figure below illustrates the memory map for a typical AVR device. The actual memory configuration will depend on the particular MPU being used, check the data sheet.

Accessing Memory
Because of the disjointed nature of AVR's architecture each memory segment needs to be accessed in a different fashion. Instructions are provided for program and data memory access and memory can be retrieved or writen in the same way that it is accessed in most other processors. EEPROM access will be covered in it's own section because it is a different beast in Atmel and most other micro controllers.
Program Memory
Program Memory should be thought of as read only memory hence there are only two instructions for working with it Load Program Memory (LPM) and Store Program Memory (SPM) and unless you are writing self-modifying code there is really no need to write to Program Memory.
Data Memory
In this section we will cover the many instructions dedicated to working with Data Memory. The information was taken from the ATMega1280 Datasheet since not all processors use these instructions in the same fashion you will need to refer to the Datasheet for the particular processor you are using to be sure these instructions are available on the Microcontroller you are using.
The instructions listed in this section are limited to a 64K data segment and some less but processors that have a larger data space there is a special register, RAMPD that can be used in conjunction with some of the indirect instructiions to access memory beyond the 64K limit. For accessing Program memory above 64K there are also a special registers RAMPX, RAMPY and RAMPZ available.
Data Direct LDS/STS
The LDS instruction loads a single byte of data from the data space to a register and depending on whether it uses an 8 or 16 bit address the Opcode size is either 16-bit or 32-bit respectively. Similar instructions are available to transfer a single byte of data from a register to data space using the STS instruction.

Instructions that use this format are; LDS - Load Direct from Data Space Syntax: LDS Rd,k 0«d«31, 0«k«65535 Example: LDS R0,0x0100 LDS (16 bit) - Load Direct from Data Space Syntax: LDS Rd,k 16«d«31, 0«k«127 Example: LDS R16,0x00 STS - Store Direct to Data Space Syntax: STS k,Rr 0«r«31, 0«k«65535 Example: STS 0x0100,R2 STS (16 bit) - Store Direct to Data Space Syntax: STS k,Rr 16«r«31, 0«k«127 Example: STS 0x00,R2
Data Indirect with Displacement LDD/STD
Loads or stores a single byte of data to or from data memory and a register. As can be seen in the image below an immediate value is added to the value in the Y or Z register to derive at the final address of the desired data byte. On devices that have more than 64K data memory area the RAMPY and RAMPZ registers allow for 24-bit addressing.

LDD - Load Indirect using Y or Z Syntax: LDD Rd,Y+q ;0«d«31, 0«q«63 Example: LDD R4,Y+2 ;Load R4 with loc. Y+2 <br />STD - Store indirect using Y or Z
Syntax: STD Y+q,Rr ;0«d«31, 0«q«63
Example: STD Y+2,R4 ;Store R4 at loc. Y+2
Data Indirect LD/ST
This instruction is similar to the Data Indirect with Displacement except it doesn't use a displacement but instead loads indirectly using the X, Y or Z registers.

LD - Load Indirect using X, Y or Z Syntax: LD Rd,X 0«d«31 LD Rd,Y LD Rd,Z Example: LDI R26,0x20 LD R2,X ;Load R2 with byte at loc. 0x20 LDI R28,0x40 LD R3,Y ;Load R3 with byte at loc. 0x40 LDI R30,0x60 LD R4,Z ;Load R4 with byte at loc. 0x60
Data Indirect with Pre-decrement
Similar to the Data Indirect instruction this instruction decrements the X, Y or Z register before the data is accessed and like the Data Indirect instruction it allows the registers to be used.

LD - Load Indirect using X, Y or Z Syntax: LD Rd,X 0«d«31 LD Rd,Y LD Rd,Z Example: LDI R26,0x20 LD R2,-X ;Load R2 with loc. 0x1F LDI R28,0x40 LD R3,-Y ;Load R3 with loc. 0x3F LDI R30,0x60 LD R4,-Z ;Load R4 with loc. 0x5F
Data Indirect with Post-increment
Similar to the Data Indirect instruction this instruction increments the X, Y or Z register after the data is accessed and like the Data Indirect instruction it allows the registers to be used.

LD - Load Indirect using X, Y or Z Syntax: LD Rd,X 0«d«31 LD Rd,Y LD Rd,Z Example: LDI R26,0x20 LD R2,X+ ;Load R2 with loc. 0x20 LD R2,X ;Load R2 with loc. 0x21 LDI R28,0x40 LD R3,Y+ ;Load R3 with loc. 0x40 LD R3,Y ;Load R3 with loc. 0x41 LDI R30,0x60 LD R4,Z+ ;Load R4 with loc. 0x60 LD R4,Z ;Load R4 with loc. 0x61
EEPROM Memory
Although the program and data memories are fairly straight forward easy to understand and program, the EEPROM is quite another story. In assembly this is not a trivial pursuit and is better done in 'C' where code is provided that handles the reading and writing of EEPROM.
But for those brave soles that are intent on using assembler to read/write to/from EEPROM I have provided (lifted straight from data sheet) code to perform minimal functionality. Refer to the data sheet for your particular device for further information.
Avoid using the lowest EEPROM address, in some instances this lowest address can be trashed and you will lose your data. Since data is writen in the order you declare your variables just declare a bogus variable before any other.
; ; The EEPROM_Write routine ; EEPROM_write: ;Wait for completion of previous write sbic eecr,eepe rjmp EEPROM_write ;Set up the address (r18:r17) to address register out eearh,r18 out eearl,r17 ;Write data (r16) to Data register out eedr,r16 ;Write logical one to eempe sbi eecr,eempe ;Start eeprom write by setting eepe sbi eecr,eepe ret ; ; The EEPROM_Read routine ; EEPROM_Read: ;Wait for the completion of the previous write sbic eecr,eepe rjmp EEPROM_Read ;Set up address (r18:r17) in address register out eearh,r18 out eearl,r17 ;Start eeprom read by writing eere sbi eecr,eere ;Read data from Data register in r16,eedr ret
Input/Output
IO register space is mapped into regular data memory with an offset of 0x20 for most devices meaning that it can be accessed just like any other data memory, this includes the registers for all peripherals such as Timers, USART, Watch Dog Timer, etc..
When used as general I/O ports all ports have read-modify-write functionality and each pin has symmetric capability to drive or sink source. In addition individual pins may be configured as either input or output, have selectable pull-up resistors and have protection diodes to both VCC and GND.
Two special instructions (IN and OUT) are provided for working with I/O registers. An example of how these instructions are used can be viewed in the EEPROM example code.
Register Usage
As a general rule registers used in conjuction with 'C' code follow the general guidelines as listed in the following table. We will be taking a look at these registers when we start mixing languages, they play a very important part in the integration.
r0 | Temporary register - use in interrupts not recommended. |
r1 | Zero register - can be used for temporary data but must be zero'd after use. |
r18-r27, r30-r31 | These are general purpose registers and don't need to be saved when using in conjuction with 'C' code. |
r2-r17, r28-r29 | These are general purpose registers but do need to be saved when using in conjuction with 'C' code. |
Macros
By definition a macro is a group of instructions that you code once and are able to use as many times as necessary. The main difference between a macro and a subroutine is that the macro is expanded at the place where it is used. A macro can take up to 10 parameters referred to as @0-@9 and given as a coma delimited list.
;PUSH_REGS macro ;Example macro that accepts 2 parameters that define the ;registers that are to be pushed onto the stack. .macro PUSH_REGS push @0 push @1 .endmacro ; ;Then to use the PUSH_REGS macro label: ldi R18,0x00 ldi R17,0x02 PUSH_REGS R18,R17 . . ; ;And in reality what you end up with is label: ldi R18,0x00 ldi R17,0x02 push R18 ;macro code push R17 ;macro code . . ;
Macros are generally made up of code that gets executed on a routine basis and are kept in libraries so that they may be included where and as needed.
Mixing Languages
The gcc 'C' compiler uses registers in a very consistent manner to pass parameters to and return values from subrountines. If we observe a few simple rules when mixing languages such as 'C' and assembler the integration of the two languages is fairly straight forward. Only 'C' is referenced in this tutorial but I would imagine that many high level languages that use the gcc compiler can be referenced in a similar manner.
When passing parameters to a subroutine Registers r25 through r8, in that order are used. If more parameters then registers need to be passed to the subroutine the stack is used and is not recommended due to a substantial hit to resources. As an additional note register pairs are used regardless of the size of the parameter being passed. This concept and others will be discussed further in the next two sections. Values returned from a subroutine follow the guide lines shown in the following table.
R24 | 8 bit values |
R24-R25 | 16 bit values |
R24-R22 | 32 bit values |
R24-R18 | 64 bit values |
Calling Assembler subroutine from C
By now you should have a pretty good idea of what to expect so I will demonstrate calling an assembly subroutine from 'C' by providing a couple of examples. Each example will have the 'C' code, followed by the resulting disassembled code and finally the assembler subroutine.
In the first example the assembler subroutine adds two 16 bit numbers passed as parameters iParam1 (R25:R24) and iParam2 (R23:R22) and returns the result (R25:R24) to the main 'C' routine.
//Assembly subroutine declaration - keeps the compiler from //generating a warning concerning implicit declaration. int AsmSubroutine(int iParam1, int iParam2); //This is the main 'C' routine int main() { int iRetVal = 0; //Call to our assembler subroutine iRetVal = AsmSubroutine(1024, 16); }
Resulting disassembled code
iRetVal = AsmSubroutine(1024, 16); 318: 80 e0 ldi r24, 0x00 ; 0 31a: 94 e0 ldi r25, 0x04 ; 4 31c: 60 e1 ldi r22, 0x10 ; 16 31e: 70 e0 ldi r23, 0x00 ; 0 320: 0e 94 ae 01 call 0x35c ; 0x35c <AsmSubroutine> 324: 90 93 01 06 sts 0x0601, r25 328: 80 93 00 06 sts 0x0600, r24
Assembler subroutine code
.section .text ;The global directive declares AsmSubroutine as global for linker. ;The AsmSubroutine label must follow the global directive. .global AsmSubroutine AsmSubroutine: add R25,R23 adc R24,R22 ret .end
In the second example the assembler subroutine adds two 8 bit numbers passed as parameters iParam1 (R24) and iParam2 (R22) and returns the result (R24) to the main 'C' routine.
//Assembly subroutine declaration - keeps the compiler from //generating a warning concerning implicit declaration. unsigned char AsmSubroutine(unsigned char, unsigned char); //This is the main 'C' routine int main() { unsigned char ucRetVal = 0; //Call to our assembler subroutine ucRetVal = AsmSubroutine(32, 16); }
Resulting disassembled code
iRetVal = AsmSubroutine(32, 16); 318: 80 e2 ldi r24, 0x20 ; 32 31a: 60 e1 ldi r22, 0x10 ; 16 31c: 0e 94 aa 01 call 0x354 ; 0x354 <AsmSubroutine> 320: 80 93 00 06 sts 0x0600, r24
Assembler subroutine code
.section .text ;The global directive declares AsmSubroutine as global for linker. ;The AsmSubroutine label must follow the global directive. .global AsmSubroutine AsmSubroutine: add R24,R22 ret .end
As can be seen from the two examples the parameters passed in use a register pair per parameter so in the second example even though we are passing two 8 bit values the compiler puts each 8 bit value in the lower of the register pair.
Calling C subroutine from Assembler
When calling a 'C' subroutine from assembler the same rules and registers apply, load the proper parameters into R25-R18 and expect the results in the corresponding registers. To illustrate this concept we will add two 16 bit numbers as we did in the first example above but after calling the Assembler subroutine from C we will just make a call to a C routine that will add the two numbers and return the result and as you will see the same results will be obtained.
int AsmSubroutine(int, int); int AddCSubroutine(int, int); int main() { int iRetVal = 0; iRetVal = AsmSubroutine(1024, 16); } //Adds to 16 bit numbers. int AddCSubroutine(int p1, int p2) { return p1 + p2; }
If you compare this with the first example above you will notice that they are identical.
iRetVal = AsmSubroutine(1024, 16); 320: 80 e0 ldi r24, 0x00 ; 0 322: 94 e0 ldi r25, 0x04 ; 4 324: 60 e1 ldi r22, 0x10 ; 16 326: 70 e0 ldi r23, 0x00 ; 0 328: 0e 94 b2 01 call 0x364 ; 0x364 <AsmSubroutine> 32c: 90 93 01 06 sts 0x0601, r25 330: 80 93 00 06 sts 0x0600, r24
The assembler subroutine merely calls the 'C' subroutine demonstrating that the same registers are used throughout the process.
.section .text .global AsmSubroutine AsmSubroutine: call AddCSubroutine ret .end
Complete example assembler program
This simple but complete assembler program demonstrates the basic components needed for an assmbler application. The application reads data from program memory and writes it in reverse order into data memory demonstrating how the program and data memories are accessed. The example is well commented so no further explanation is provided.
/* AVR Assembler Tutorial Example Author: Mike Hankey Date: 7/17/2010 Hardware: ATMega1280 Assembler: AVR Assembler 2.0 Purpose: Read msg data from program memory and write it to Data segment in reverse order. Although this is a very simple example of an assmbler program it contains many of the elements that are needed in most real assembler applications. */ .NOLIST .include "m1280def.inc" .LIST /* Macro to set the Stack Pointer to end of ram Input Parameters: none */ .macro SET_STACK ldi r16, LOW(RAMEND) out spl, r16 ldi r16, HIGH(RAMEND) out sph, r16 .endmacro /* Data segment All we can do here is reserve a portion of the data segment for our target string. We cannot initialize data in this segment. We are setting aside 32 bytes (0x20) for our target string. */ .dseg msgd: .byte 0x20 /* Code Segment Use .org to set the base address in code segment where we want the code to begin, in this case 0 or beginning of the segment. The first part of the code segment is reserved for the interrupt/jump table and the first item in the table is the reset vector which we put a jump instruction to the first line of our code.. Since we are not declaring any other interrupts we can ignore the rest of the table and just add a 2nd .org setting the start label or beginning of the code at location 0x20. */ .cseg .org 0 rjmp start /* End of Jump table and start of our code. */ .org 0x20 start: SET_STACK ;Invoke our macro to set stack ptr /* The Z-resister is used to access Program memory. This 16 bit register pair is used as a 16 bit ptr to the Program Memory where the most significant 15 bits select the word address and the LSB is the Low/High bit select therefore we must multiply the address by 2 by shifting left one place. We could have also have just multiplied by 2; ldi ZH,high(msg*2) ldi ZL,low(msg*2) either way is acceptible! */ ldi ZH,high(msg<<1) ;Set Z pointer to message ldi ZL,low(msg<<1) rcall get_length ;call subroutine to get length ldi XH,high(msgd) ;Set X pointer to destination in ldi XL,low(msgd) ; data memory. add XL,r17 ;Add count to X pointer, /* Once we have the length we use it to loop through each item loading it into R24, do a post increment and write the character to the current location pointed to by the X-register pain. We then decrement the X pointer then the counter and if not zero branch to loop and repeat. */ loop: lpm r24,Z+ st X,r24 dec XL dec r17 brge loop ret /* Subroutine to count the length of the string that is pointed to by the Z-register. ZH:ZL Pointer to string R17 Calcualted string length Upon entry we push the initial value of the Z-register for use later. We get the length by loading the byte currently pointed to by the Z-register and doing a post increment. We check the byte and if it is not the terminating zero we increment the count and jump to loop to repeat the sequence of instructions. Upon exit we restore the intial Z-register values. */ get_length: push ZH push ZL ldi r17,0 loop1: lpm r24,Z+ cpi r24,0 breq exit inc r17 rjmp loop1 exit: pop ZL pop ZH ret /* Our meesage string.. */ msg: .db "String to be reversed",0
Conclusion
In this article I have made an attempt to touch on the important aspects of the AVR Assembler language but it is such a broad subject that it would be impossible to cover the entire subject in one setting.
The best way to learn assembler is to go through code and see what others have done or to write a segment of code in C and go into the list file and view the assembler listing. But the bottom line is you have to get your hands dirty.
