Learn about the Android Application Resources



To make the great Application, the great code is not enough because the users interact with the visual part not a code. Everything except the code is called Resources there are many kind of resources such as text, image, animation, etc. In this article you will learn about the resource types and how to use them in your application.


When the resources are another part of the application, you need to know about the basic of application development and UI creation.

The Deals

In the article we will learn by apply the resources to the existing Code/UI. I have provide the Base Project for use to learn this article you can download it from the link below.

The Resources

The Resources is everything of the application except the Java code. On Android Platform there are many kind of Resources such as text, color, layout, dimension, etc. Android provides the specific folders the specific resources type, the root folder of resources is res/ and this folder contains many sub folder for each resource type.

Image 1

The resources and their folder
Directory Resource in Directory
animator The Property Animations in XML file format
anim The View Animations in XML file format
color The Color State List Resource in XML file format
drawable Image files or XML file
layout UI layout files in XML file format
menu Menu definition file in XML file formal
raw Everything else that you need to use in the application
value Simple values such as text, dimensions, color, etc.
xml Another XML file that you want to use in the application such as config file.

The Layout Resources

Image 2

The Layout resource is the file that is a definition of User Interface, you have learned this resource type from the past article (Contest Article #4). The directory that store the layout resources is res/layout.Image 3

This is an example of layout file

<LinearLayout xmlns:android=""

        android:text="What is your name?"
        android:textSize="18dp" />


        android:text="How do you feel today?"

            android:text="Great :)"
            android:layout_height="wrap_content" />
            android:text="Upset :("
            android:layout_height="wrap_content" />
            android:text="Tearful :'("


The Value Resources

The Value Resource is the XML that contain a definition of basic value, such as string, color, and dimension. This resource type is store in a folder res/value, you can create the resource files and name it as you want all value resources can place in a one XML file but not recommended.

To create the value resource, right-click on the res/value folder and select New > Values resource file.

Image 4

Then, enter the resource name.

Image 5

There is no official naming convention for resource files, but I recommend you to name it as <resource_type>_<activity or fragment>_<activity or fragment name>.xml.

For example: I have the Activity name MainActivity, I will create the string value resource for this Activity the name of resource file should be string_activity_main.xml


The String resources provide the text that you can use in both Java code and UI layout.

This is an example of String resources file

    <string name="app_name">AndroidResourcesLessons</string>
    <string name="hello_world">Hello world!</string>
    <string name="action_settings">Settings</string>

In this file there are String resources with name app_name, hello_world, and action_settings. You can use these String resources in the layout enter a text "@string/" and follow by the id of the resource that you want.

        android:textSize="18dp" />

And in the Java you can refer to the String by using the R class instance such as R.string.app_name

TextView helloWorldTextView = (TextView) findViewById(;

Image 6

Naming Convention

No official String resource name naming convention right now, but I reccommend you to the pattern <layout>_<view id> such as activity_main_textview_title to specific the view that use this String or if this String is a common sentence you can also use just name such ok, error_no_connection.

Now, Open the layout activity_values_example.xml and try to convert all hard code String  to String Resource reference.

Note: Please create a new String Resources file with name string_activity_value_example.xml.

Note: Some character can not use in String Resource file you need to replace it with the escape code.

Image 7


When you want to change the color of text in the Layout file, you can use the hard code string of color code but many time you use the same color for many element. When you want to change the color you need to find each element that use this color, so that waste your time.

The Color resource is the answer, you only define the color that you want to use and then refer this resource in any place that you want to use this color.

You can use the same Color resources file for whole application, because the whole app should use the same colors, same style for making the experience consistent. The common Color resources file name is colors.xml.

This is an example of Color resources.

<?xml version="1.0" encoding="utf-8"?>
    <color name="text_dark">#252525</color>
    <color name="text_light">#DEDEDE</color>
    <color name="text_warn">#FF0000</color>

From the XML there are 2 color resources text_dark and text_light, to use them in layout, you just enter the reference "@color/" follow by the Color resource name.

        android:textSize="18dp" />

You can refer the color resurce by using R.color.<color resource name> e.g. R.color.text_warn.

TextView helloWorldTextView = (TextView) findViewById(;

Image 8

Naming Convention

No official Color resource name naming convention right now, but you can use the name that meaningful and indicate its role of the resource such as text_warn is mean color of warning text.

Now, Open the layout activity_values_example.xml and try to color the text or Views that you want.Image 9

Image 10


To size and position the View you can use a hard code value in dp, sp, px units. Same as the Color resources, sometime you want to use same value with many element e.g. the element's margin and padding, you should to make it as resource.

Like the Color you can store the common dimension values in the one file except you want to create a very specific value e.g. set the margin to only one element. The common Dimension resources file name is dimens.xml.

    <dimen name="activity_horizontal_margin">16dp</dimen>
    <dimen name="activity_vertical_margin">16dp</dimen>
    <dimen name="default_margin">8dp</dimen>

To use the dimension resource in the layout file, you just refer it by using @dimen/<dimesion resource name>.

        android:textSize="18dp" />

In the java code you can use R.dimens.<dimesion resource name> to refer the specific dimension resource.


getResources().getDimension() method will return the value in pixel unit.

Naming Convention

No official Dimension resource name naming convention right now, but you can use the name that meaningful and indicate the role of the resource such as default_padding.

Now, Open the layout activity_values_example.xml and try to make the space between the questions.

String Array

You can make the array of String as a resource too. This type of resource should be use for provide a static series of data such as using as Data source for Spinner.

You can place the String array in the same file with String resource.

This is an example of String Array resources.

<string-array name="string_activity_value_example_spinner_color_options">

The example is the String Array for color spinner, you can use it in java code by using R.array.<string array resource name>.

I will use it as the Spinner Adapter data source, Here is my layout:


And this is old Java code:

String[] colors = new String[]{"Red","Yellow","Blue"};

Spinner colorSpinner = (Spinner)findViewById(;
ArrayAdapter<String> adapter = new ArrayAdapter<String>(this, android.R.layout.simple_spinner_item, colors);

Image 11

Then, I replace a String[] hard code with getResources().getStringArray() method.

String[] colors = getResources().getStringArray(R.array.string_activity_value_example_spinner_color_options);

Spinner colorSpinner = (Spinner)findViewById(;

ArrayAdapter<String> adapter = new ArrayAdapter<String>(this, android.R.layout.simple_spinner_item, colors);


Here is a result:

Image 12

The result is same as the hard code String array.

Naming Convention

No official String Array resource name naming convention right now, but I recommend you to the pattern <layout>_<view id> such as activity_main_color_options to specific the view that use this String Array.

The Drawable Resources

Drawable resource is refer to a graphic file that can draw on the screen. Drawable resources can split in to two groups the first is the real image file (.png, .jpg, .gif) and 9-patch file, and the another group is XML definition file such as XML Bitmap, Layer List, etc.


The real image file (.png, .jpg, .gif) , you can place any image file in the drawable directory directly and then you can reference it by using the id e.g. R.drawable.<file name without extension> in the Java code, and @drawable/<file name without extension> in the layout file.

For example: I place the png fileImage 13 name "ic_error.png" , then I can use it as  src of ImageView

    android:src="@drawable/ic_error" />

And in the java code I can get this drawable by using the getResources().getDrawable() method.

Drawable drawable = getResources().getDrawable(R.drawable.ic_error);

Or set it ti ImageView source directly

ImageView errorImageView = (ImageView) findViewById(;

errorImageView .setImageResource(R.drawable.ic_error);

Image 14

Nine Patch

Nine Patch is a PNG image + area mark, Nine Patch allow Android to stretch when the content it bigger than image. Nine Patch is generally used for make a View background image.

Image 15

From the picture above, you will see that when you set the TextView's background to normal bitmap file when the content is overflow the background image will misshapen but this problem not occurs when you use a 9-patch.

Image 16

On the 9-patched png there are 1 pixel extra from each border for using to mark the area the can stretch and content area. The top and left marks are used to defines the stretchable area while the bottom and right marks are used to defines the padding box or content area (if no mark, content will can fit the background).

Android provides a tool for create the nine patch image called draw9patch you can found it at  <android_sdk_path>/tools/

Let's try to build the nine patch, save the picture below.

Image 17

Then open the draw9patch and drag the image file to the draw9patch window

Image 18

Image 19

Drag the horizontal line and vertical line at each border to create the patch

Image 20

Check all options and see the preview on the right of window

Now, save the 9-patched image and add it the project. Open the file activity_drawable_example.xml and try to change the buttons background to the 9-patched file.

Note: You can edit the patch in Android studio by double click on the 9-patch file

Image 21

The Menu Resources

Android provides a menu resource for using to create the menu. On Android 3.0+ the Options Menu is show on the app's ActionBar and there are 2 kind of options menu that are Action Menu and Popup Menu but on the older device there is a menu button on the hardware and when you click it the menu will show on the bottom of the screen. However, there are developers that create the library to bring the ActionBar to the legacy device that library called ActionBarSherlock and now Google bring the ActionBar to the legacy device via the library AppConpat.

Image 22

To create the options menu, you need to create a menu resource in res/menu.

In the base project I have provided you a MenuExampleActivity with menu_example.xml as a menu resource. Let's try to create the menu now!!

Here is our current menu resource XML code

<menu xmlns:android=""
    tools:context="" >
    <item android:id="@+id/action_settings"
        app:showAsAction="never" />

There is a Settings menu in the resource file, when you run the app you will see the menu like this.

Image 23

These are the important attributes of options menu

  • android:id - The id of this menu, without the id you will can access the menu in Java code.
  • android:title - The text that you want to show on this menu.
  • android:orderInCategory - The order of this menu in its category.
  • android:icon - The icon of this menu, will show when the menu is an Action Menu and always show on the old style menu (legacy Android).
  • app:showAsAction / android:showAsAction   - Is this menu an Action Menu, you can set it to always show as Action Menu, or depends on the Action Bar space, or never show as Action Menu.

Note: If your Activity was extended from the ActionBarActivitiy in AppCompat library you need to import an app namespace xmlns:app="" and use the showAsAction proper from app namespace. Or you can add both app:showAsAction and android:showAsAction for make sure that the Action Menu will show.

I suggest you to name the id of menu as action_<name> if it's an Action Menu or menu_<name> if it's a normal Menu.

Now, I want to create the about menu as a popup menu.

<item android:id="@+id/menu_about"

I set the new menu showAsAction attribute to never because I don’t want to show as the ActionMenu

Here is the result:

Image 24

Next, I will create a Refresh Action Menu.

<item android:id="@+id/action_refresh"

This Menu will always show as the Action Menu on the Action Bar.

Image 25

If you not provides the icon for Action Menu it will show the title text instead. Try to add the icon to Refresh Action Menu now.

When you create an Action Menu you should to add the menu icon. Android suggest to use the monochrome image as the menu icon, you must to create the image that simple and has a clear meaning and well known.

I decide to use this icon Image 26 for the refresh menu. Android Studio provides the Image Asset import wizard that help the developer to convert the image into the proper size and color. To use the wizard, right click on the res folder then select New > Image Asset.

Image 27

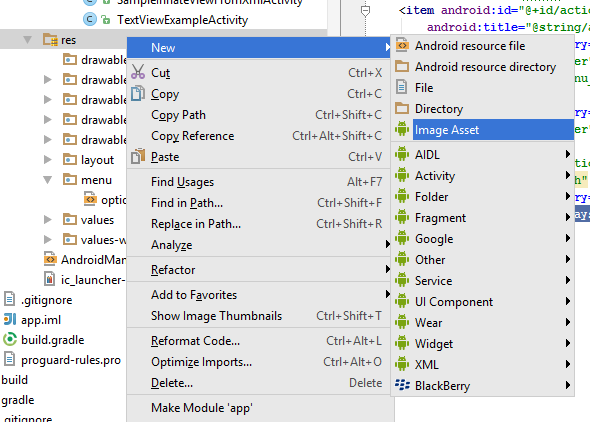

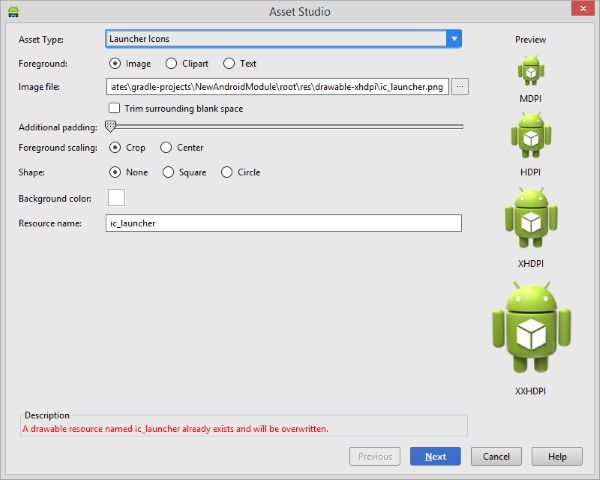

You will see the wizard window

Image 28

There are 3 drawable asset types that you can use this wizard to import, there are Launcher Icons, Action Bar and Tabs Icons, and Notification Icon.

Image 29

We will use the Action Bar and Tab Icons option for importing the menu icon.

Image 30

These are description of the options.

  • Asset Type - Type of asset that you want to create
  • Foreground - You can use your own image, or using the clipart, or text.
    • Image File - If you use your own image, the wizard will let you select the image.
    • Clipart - If you set foreground to clipart, the wizard will let you choose the clipart.
    • Text - If you set foreground to text, you can enter you text here.
    • Font - Set the font of text.
  • Trim surrounding blank space - trim the space around the foreground element.
  • Additional padding - add the space around the foreground element.
  • Theme - You app's theme, if you choose a custom options it will let you choose that color of icon.
  • Resource name - Set the name of this asset.

Note: Resource name should be name as ic_action_<name>

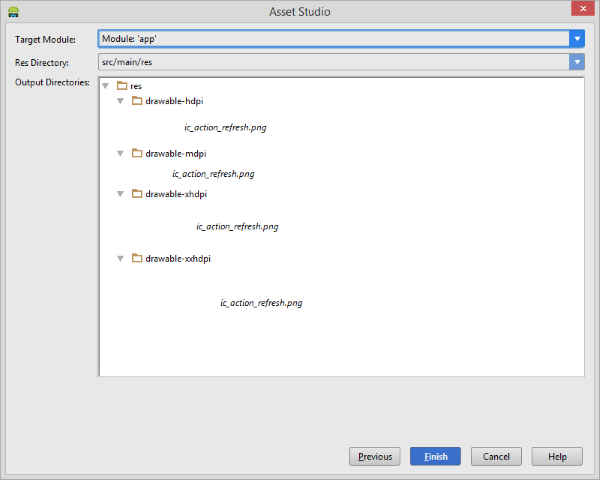

After selected the options, click the next button and you will see the outputs preview.

Image 31

I can't see my image because it color is white Frown | :( Select the Target Module to you app, and select the res directory of you app.

Now, I have a drawable resource name ic_action_refresh. Add it to the menu!!

<item android:id="@+id/action_refresh"

Here is a result:

Image 34

Next, we will access the options menu in Java code and write the code to react the options menu click event.

Open the Activity file you will see the onCreateOptionsMenu() and onOptionsItemSelected() method (create it if not exist)

    public boolean onCreateOptionsMenu(Menu menu) {
        // Inflate the menu; this adds items to the action bar if it is present.
        getMenuInflater().inflate(, menu);
        return true;

    public boolean onOptionsItemSelected(MenuItem item) {
        // Handle action bar item clicks here. The action bar will
        // automatically handle clicks on the Home/Up button, so long
        // as you specify a parent activity in AndroidManifest.xml.
        int id = item.getItemId();
        if (id == {
            return true;
        return super.onOptionsItemSelected(item);

onCreateOptionsMenu() method is used to inflate the options menu to show on the View.

onOptionsItemSelected() method is used to detect the Click event on the menu.

Now, we focus on the onOptionsItemSelected() method and I will show the Toast message for each menu.

public boolean onOptionsItemSelected(MenuItem item) {
    int id = item.getItemId();
    if (id == {
        //do something
        Toast.makeText(this,"Settings menu was clicked",Toast.LENGTH_SHORT).show();
        return true;
    else if (id == {
        //do something
        Toast.makeText(this,"About menu was clicked",Toast.LENGTH_SHORT).show();
        return true;
    else if (id == {
        //do something
        Toast.makeText(this,"Refresh menu was clicked",Toast.LENGTH_SHORT).show();
        return true;
    return super.onOptionsItemSelected(item);

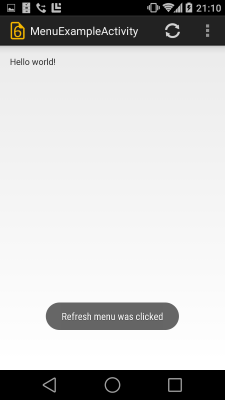

And run the app!!

Image 37 Image 38 Image 39

The Alternative Resources

In the res/ folder you will see that there are some folder that has a same name with a suffix such as drawable, drawable-xhdpi, drawable-mdpi. That is an alternative resources that is used to provide to the specific device such as the device with large screen, the device that run Android 4.4+, etc.

Android provide the resource qualifiers for use to specific that the resource folder is used to provide to the specific device or state.

Create the Alternative resources directory

To create the alternative resources directory, right click on the res/ folder then select New > Android resource directory

Image 40

Image 41

You will see the New Resource Directory window, you can select the resource type that you want to create an alternative resources directory.

There is a lot of qualifier for resources that you can use to create an Alternative Resource Directory. E.g. If yhou want to localize your, app you need to use the Region option. If you want to create the UI fot tablet, you need to use the Screen Size option.

I will show you an example of String alternative resources for the landscape orientation. Select the resource type as values and select the orientation and click the >> button

Image 42

Set the Screen orientation to Landscape, then then click OK button.

Image 43

You will see the values-land in res folder

Try to using the alternative resources now!! In the base project I have created the AlternativeResourcesExampleActivity and its layout file activity_alternative_resources_example.xml. Now, look at the layout file. There is a Greeting TextView.

We will serve the different String resource for the Greeting TextView inlandscapr mode and portrait mode.

First, create the String resource name textview_greeting with the value "Hello, John" in the strings.xml file

<string name="textview_greeting">Hello, John</string>

Second, create the strings.xml resource file in an folder values-land and put the String resource name textview_greeting with the value "Good morning, John".

<string name="textview_greeting">Good morning, John</string>

Finally, set the text of Greeting TextView to String resource textview_greeting.

    android:layout_height="wrap_content" />

Run the app and try to rotate the device.

Image 44

Image 45

Alternative Drawable Resources

In the res/ folder you will see the drawable-xxxx folders, they are an Alternative Drawable Resources for the specific screen density.

Image 46

The picture above show  the comparison of image size in each screen density. The mdpi density is the baseline size where a 1 pixel is equals to a 1 dp.



Example Device





Samsung Galaxy Y (~133)


1px = 0.75dp



HTC Wildfire S (~180)


1px = 1dp



Nexus One (~252)


1px = 1.5dp



Nexus 4 (~318 dpi)


1px = 2dp



Nexus 5 (~445 dpi)


1px = 3dp





1px = 4dp

The table show the relation of density, dpi, scale, pixel per dp, and the example device, you will see that the device density in not only depends on the dpi but it also depends on the manufacturer.

Look at the AlternativeDrawableExampleActivity there are many ImageViews that consume the image resource from different drawable folder. (I have put the images that have same size 128px*128px in all folder with different name)

Try to run it now.

Image 47

You will see that the images that display on your device screen have a different size, because Android will scale down or up the image in each folder to the proper size.

If you place the images in the folder that has higher density than your device screen, Android will scale down them.

On the other hand Android will scale up the images in the folder that has lower density than your device screen.

Note: In the picture I run the application on Nexus 5.

Note: drawable and drawable-mdpi resources will have a same size.

When Android scale down the Images, it will consumes the processor/memory resource. Thus you should to provide all sizes of image if possible.

Now, look at the AlternativeDrawableExample2Activity. I have put the images into the folders drawable-ldpi, drawable-mdpi, drawable-hdpi, and drawable-xhdpi but in this example I resize each image to the proper size by use the multiply factor in the table above and rename it as different name.

Try to run it now.

Image 48

Wow!! Android scale it to the same size and display on the screen automagically.

Another example, the AlternativeDrawableExample3Activity, this activity has only one ImageVIew with set the src to the drawable resource. I have put the scaled (proper size) image into the folders drawable-ldpi, drawable-mdpi, drawable-hdpi, and drawable-xhdpi. All of the image name are same.

Image 49

When there are the same resource name in many resource folder Android will choose the proper resource on by consider the resource qualifiers. Thus is the reason why you should to scale the image resource yourself.

Sometimes you want to add some addition graphic on the high density display only you will can do it by provide the different image for each resource folder but all of images use the same resource name.

Now, on the Android Studio open the design view of activity_alternative_drawable_example3.xml then click the preview device button and select Preview All Screen Size

Image 50

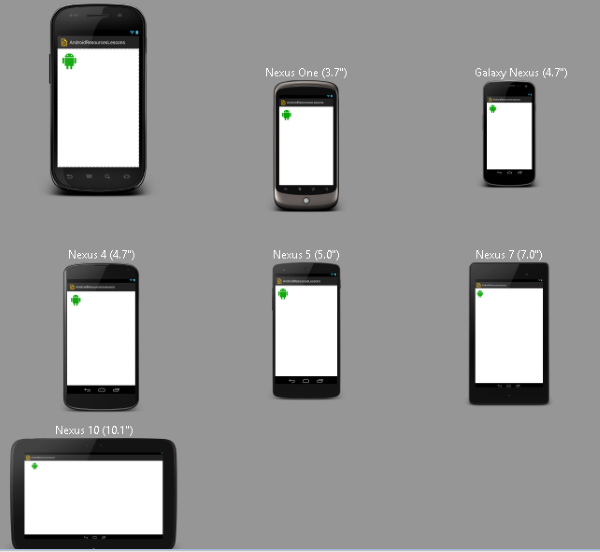

This screen will preview the size of a screen elements on many device, you can use this tool to check you layouts and resources.

The Image resizer tool

I recommends you to design the image files for XHDPI or XXHDPI density becauseyou can scale down the images without losing the quality.

I would like to recommend the tool for resizing image to XHDPI, HDPI, MDPI, and LDPI that tool is Android Resizer Tool you can download it from the xda-developers thread.

How to use it?

Open the tool.

Image 51

Enter number 2 to config it

Image 52

Enter the source images density recommend to use XHDPI (enter 1)

Image 53

Enter the outputs DPI 1, 2, 3, and 4. Then enter the source images folder.

Image 54

Enter the outputs images folder

Image 55

Enter number 1 for convert the images.

Image 56


Image 57

This is an output folder.

Another tool that I would like to recommend is Android Asset Studio it is an online tool for creating theme, icon, etc.

Finish!! now you have learned about Android Resources type, there are many Resources that I haven't said in this article, please try it yourself. Remember that the only way to success is practice, practice, practice, practice, and more practice. Goodluck!!

The Complete Project Repository

Points of Interest

The resources is very important to create the great application that you need to tke care it because the user has interaction with the visual part of an application not a code. After learned this article, please try to learn the other resources type to complete the jigsaw of the great application. Hope you enjoy your Android Developer Life!!


24/08/2014 initial submit

24/08/2014 fix the inner link

25/08/2014 add Alternative Drawable Resources Examples

25/08/2014 add more explaination


This article, along with any associated source code and files, is licensed under The Code Project Open License (CPOL)

Written By
Software Developer vable
Thailand Thailand
Windows Platform, Android, Server-Side and Web Application Developer. I am a Programming Lover. I love to make an application and design it structures.

Comments and Discussions

GeneralMy vote of 4 Pin
Muhammad Shahid Farooq21-Mar-17 0:23
professionalMuhammad Shahid Farooq21-Mar-17 0:23
Generalnice Pin
MikolajKonieczny3-Jan-16 1:18
professionalMikolajKonieczny3-Jan-16 1:18

General General    News News    Suggestion Suggestion    Question Question    Bug Bug    Answer Answer    Joke Joke    Praise Praise    Rant Rant    Admin Admin

Use Ctrl+Left/Right to switch messages, Ctrl+Up/Down to switch threads, Ctrl+Shift+Left/Right to switch pages.
