HTML5 Guitar Tab Player

Rate me:
Please Sign up or sign in to vote.
4.99/5 (70 votes)
8 Nov 2014CPOL8 min read
A jQuery plugin for turning plain text guitar tabs into online playable music

Html5 Tab Player

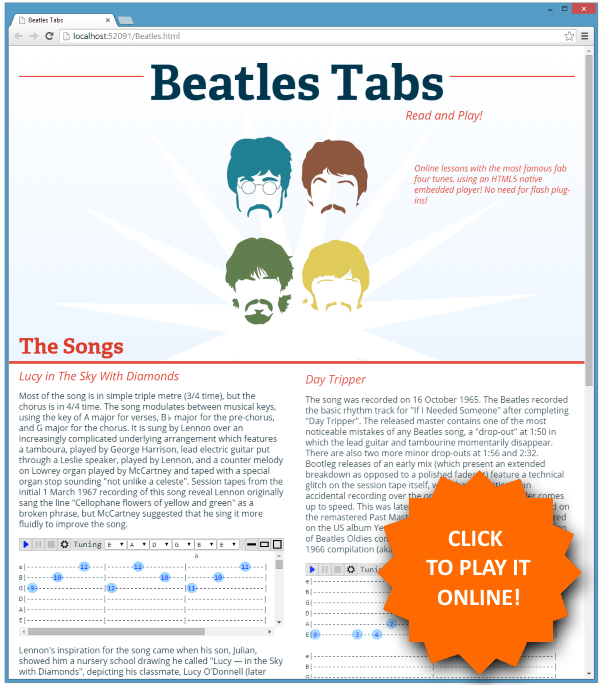

Figure 1. The HTML5 Tab Player - Beatles Demo Page


If you ever played guitar, you probably used tablatures (also called "tabs") sometimes. And if you searched for tabs on the internet, most of the times you must have found the same kind of plain text tablature.

Some websites provide tab players, but in most cases you will have to register a paid, premium account before using the service. And in most cases this service will run in Flash.

But what if you could take those plain text tabs and play them right now? If you like the idea, then this article is for you. HTML5 Tab Player is a jQuery plugin that allows you to easily embed guitar tabs in your web pages, without relying on Flash plug-ins.


For me, combining music and programming in a single article is a dream coming true. Programming is the one that pays the bills, but lately I've been dedicating more of my precious weekend hours to play acoustic guitar.

Image 2

Figure 2. Hey, that's Bob!

The idea of the HTML5 Tab Player jQuery plugin came to me when I was looking for guitar tabs for specific songs on the internet, and suddenly I realized that all of them were plain text. Next I remembered that most programming blogs and programmer-dedicated websides such as Code Project use formatting components that parse and convert plain text code snippets submitted by contributors into more user-readable, well formatted HTML content. That is, the formatting takes into consideration the semantics of the programming language being presented, and then all the keywords of that language are highlighted or coloured accordingly, without need of human intervention.

System Dependencies

The HTML5 Tab Player plug-in runs entirely on the client side, and deploying the accompanying files is enough to get it running:

  • tabplayer.css: the style sheet where you can customize the HTML5 Tab Player appearance.
  • img folder: contains the images for the HTML5 Tab Player toolbar.
  • jQuery-1.9.1.min.js: the jQuery on top of which the plug-in code is built.
  • tabplayer.js: contains all the plug-in functionalities.
  • sounds folder: contains all sound files, each one representing one distinct acoustic guitar note.


Image 3

Figure 3. File dependencies

What Does The Plugin Do (And What it Does Not)

As stated before, idea for this plug-in crossed my mind as I observed websites (like that format plain code into well formated, highligted HTML content. Take a look, for example, at Prettify:

Image 4

Figure 4. Prettify: plain code goes in, pretty code comes out

If you think that most guitar tabs found on the internet are just plain text, and that they are contained inside <pre> tags, they can be seen as code waiting to be formatted. The example below was taken from

Image 5

Figure 5. The Ultimate Guitar Tab website always shows tabs inside <pre> tags

As input, our HTML5 Tab Player takes the following tablature in a <pre> tag. Notice that it requires the lang=tabPlayer attribute. Other attributes, such as bartime and class will be explained later.

Image 6

Figure 6. The unformatted HTML Pre Tag

As a result, the HTML5 Tab Player formats the plain text tablature, hightlighting the notes numbers and creating a toolbar panel just before the tab, which allows the user to play, pause, stop and configure the player.

Image 7

Figure 7. The HTML Pre formatted by HTML5 Tab Player

If the user feels that the tab takes too much space on the web page, he/she can collapse the Tab Player, so that only the toolbar is visible. If you are displaying many tabs at the same time, this can avoid unnecessary cluttered pages:

Image 8

Figure 8. The HTML5 Tab Player in collapsed mode

On the ther hand, sometimes the user may want to see the whole tablature, no matter how large it is. The expand button removes the <pre> tag height limit, and so it is shown in its entirety:

Image 9

Figure 9. The HTML5 Tab Player in full size mode

When the page is ready, the tab is immediately formatted and the user can access the tab player controls. The small blue circles around the numbers in the image below represent the notes being played.

The Tuning setting defines the "open" string notes (guitars usually have 6 strings, and an "open" string mean that you are picking a string with one hand without pressing any fret with the other hand). Most of the songs will be played with the standard "EADGBE" tuning, but you can change the tuning if the song requires you to do so.

Image 10

Figure 10. The plug-in interprets and plays the tablature

The Bar Duration setting defines how long should it take to play each of the tablature bars. The bars are the segments between the column of pipes, as shown in the image below.

Image 11

Figure 11. The player displaying bar duration options

The code

The plugin initializes when the page is completely loaded. The setupTabPlayer method is applied to each and every pre tag containing the tabplayer as the value for the language attribute.


$(function () {


Figure 12. Plugin initialization

Inside the plugin initialization, we keep the notesarray for the 12 semitones, which are the same 7 white keys plus the 5 keys on the piano. These notes are repeated four times in the octaves, as to represent the four octaves used in the plugin.


var octaves = [];
var notes = ['C', 'C#', 'D', 'D#', 'E', 'F', 'F#', 'G', 'G#', 'A', 'A#', 'B'];


Figure 13. The 12 notes

Along with the octaves initialization, we create one audio HTML tag for each note. The audio tag is provided with an id and source file, and is configured for preloading (this ensures that we don't have delays while playing for the first time).

The sounds were obtained from the package uploaded by member Kyster to the website, under the Creative Commons license. Notice that each note has an independent and corresponding ogg file. All notes were recorded from nylon strings played in acoustic guitar, providing a deep and natural sound to our tab player.

Finally, each audio tag is appended to the body of the page, where it remains invisible and in stand-by mode.


function initializeOctaves() {
    for (var i = 1; i <= 4; i++) {
        $(notes).each(function (index, note) {
            var noteName = i + note.replace('#', 'sharp');
            var audio = $('<audio>')
                            id: 'note' + noteName,
                            src: 'tabplayer/sounds/' + noteName + '.ogg',
                            preload: 'auto'


Figure 14. Creating one audio HTML tag for each note

Next, we have the initialization variables that are referenced throughout the code. Notice that, because a single web page can hold any number of tab players, we must ensure that each one has its own set of control variables (tuning, volume, playing status, etc.) so as to not interfere with each other players.

  • tabPlayerId: the ID for the player
  • step: the horizontal position (i.e. the cursor) of the tab as the player search for notes
  • guitarStrings: contains information about the strings
  • interval: the interval object created by setInterval function
  • isPaused: indicates if the player is paused or not
  • volume: not used (for future releases)
  • barTime: indicates how long it takes to complete each bar in the tablature
  • isShowingTuning: indicates if the current configuration is tuning or bar time



initializePlayerVars: function() {
    var me = this;
    me.tabPlayerId =  undefined;
    me.step = 0;
    me.noteSeq = 0;
    me.guitarStrings = [{
        openString: 'e',
        currentNoteIndex: 0
    }, {
        openString: 'B',
        currentNoteIndex: 0
    }, {
        openString: 'G',
        currentNoteIndex: 0
    }, {
        openString: 'D',
        currentNoteIndex: 0
    }, {
        openString: 'A',
        currentNoteIndex: 0
    }, {
        openString: 'E',
        currentNoteIndex: 0
    me.interval = undefined;
    me.isPaused = false;
    me.volume = 1;
    me.barTime = 3000;
    me.isShowingTuning = true;


Figure 15. The plugin variables held for each tab in the page

The octaveNoteIndex property indicates the position of each string inside the octaves array. People acquainted with guitar will notice in the intervals that this follows the standard guitar tuning: 5th fret / 5th fret / 5th fret / 4th fret / 5th fret.


initializeGuitarStrings: function () {
    var me = this;
    me.guitarStrings[0].octaveNoteIndex = 28;
    me.guitarStrings[1].octaveNoteIndex = 23;
    me.guitarStrings[2].octaveNoteIndex = 19;
    me.guitarStrings[3].octaveNoteIndex = 14;
    me.guitarStrings[4].octaveNoteIndex = 9;
    me.guitarStrings[5].octaveNoteIndex = 4;


Figure 16. Configuring the player for standard guitar tuning


initializeAudioChannels: function () {
    var me = this;
    for (a = 0; a < me.channel_max; a++) {                                   // prepare the channels
        this.audiochannels[a] = new Array();
        this.audiochannels[a]['channel'] = new Audio();                     // create a new audio object
        this.audiochannels[a]['finished'] = -1;                         // expected end time for this channel


Figure 17. Initializing audiochannels

The control panel features the buttons necessary to control the player process: play, pause, stop, along with buttons that control the height (minimize, full size and window). Also, the tuning and the bar time drop down lists.

All these HTML elements are created on the fly using jQuery functions.


createControlPanel: function () {
    var me = this;
    var aPlay = $('<a>')
        .click(function () {
    var imgPlay = $('<img>');


    var aPause = $('<a>')
    .click(function () {

    var aStop = $('<a>')
    .click(function () {

    var aSettings = $('<a>')
    .click(function () {

    var aPreMinimize = $('<a>')
    .click(function () {

    var aPreWindow = $('<a>')
    .click(function () {

    var aPreMaximize = $('<a>')
    .click(function () {

    var lblTempo = $('<span>').append('Bar duration (ms)');

    var ddlTempo = $('<select>').addClass('ddlTempo');
    for (var i = 500; i < 5000; i += 100) {
        var option = $('<option>').val(i).html(i);

    var lblTuning = $('<span>').append('Tuning');

    var ddlTuning1 = $('<select>').addClass('ddlTuning1');
    $(ddlTuning1).append('<option note="C" value="0">C</option>');
    $(ddlTuning1).append('<option note="C#" value="1">C#</option>');
    $(ddlTuning1).append('<option note="D" value="2">D</option>');
    $(ddlTuning1).append('<option note="D#" value="3">D#</option>');
    $(ddlTuning1).append('<option note="E" value="4" selected>E</option>');
    var ddlTuning2 = $('<select>').addClass('ddlTuning2');
    $(ddlTuning2).append('<option note="F" value="5">F</option>');
    $(ddlTuning2).append('<option note="F#" value="6">F#</option>');
    $(ddlTuning2).append('<option note="G" value="7">G</option>');
    $(ddlTuning2).append('<option note="G#" value="8">G#</option>');
    $(ddlTuning2).append('<option note="A" value="9" selected>A</option>');
    var ddlTuning3 = $('<select>').addClass('ddlTuning3');
    $(ddlTuning3).append('<option note="A#" value="10">A#</option>');
    $(ddlTuning3).append('<option note="B" value="11">B</option>');
    $(ddlTuning3).append('<option note="C" value="12">C</option>');
    $(ddlTuning3).append('<option note="C#" value="13">C#</option>');
    $(ddlTuning3).append('<option note="D" value="14" selected>D</option>');
    var ddlTuning4 = $('<select>').addClass('ddlTuning4');
    $(ddlTuning4).append('<option note="D#" value="15">D#</option>');
    $(ddlTuning4).append('<option note="E" value="16">E</option>');
    $(ddlTuning4).append('<option note="F#" value="17">F</option>');
    $(ddlTuning4).append('<option note="F" value="18">F#</option>');
    $(ddlTuning4).append('<option note="G" value="19" selected>G</option>');
    $(ddlTuning4).append('<option note="G#" value="20">G#</option>');
    $(ddlTuning4).append('<option note="A" value="21">A</option>');
    var ddlTuning5 = $('<select>').addClass('ddlTuning5');
    $(ddlTuning5).append('<option note="G" value="19">G</option>');
    $(ddlTuning5).append('<option note="G#" value="20">G#</option>');
    $(ddlTuning5).append('<option note="A" value="21">A</option>');
    $(ddlTuning5).append('<option note="A#" value="22">A#</option>');
    $(ddlTuning5).append('<option note="B" value="23" selected>B</option>');
    $(ddlTuning5).append('<option note="C" value="24">C</option>');
    $(ddlTuning5).append('<option note="C#" value="25">C#</option>');
    $(ddlTuning5).append('<option note="D" value="26">D</option>');
    var ddlTuning6 = $('<select>').addClass('ddlTuning6');
    $(ddlTuning6).append('<option note="C" value="24">C</option>');
    $(ddlTuning6).append('<option note="C#" value="25">C#</option>');
    $(ddlTuning6).append('<option note="D" value="26">D</option>');
    $(ddlTuning6).append('<option note="D#" value="27">D#</option>');
    $(ddlTuning6).append('<option note="E" value="28" selected>E</option>');

    var divTabPlayerControls = $('<div>').addClass('tabPlayerControls').attr('tabPlayerId', me.tabPlayerId);
    $(me.el).attr('tabPlayerId', me.tabPlayerId);



    var divTempo = $('<div>').hide().addClass('barTime');

    var divTuning = $('<div>').addClass('tuning');



Figure 18. Adding HTML elements to the toolbar panel at run time

It is possible to predefine the bar time variable by just adding the barTime attribute in the pre tag:


setupBarTime: function() {
    var me = this;
    var barTime = $(me.el).attr('barTime');
    if (barTime) {
        me.barTime = barTime;
        var option = $('div.tabPlayerControls[tabPlayerId=' + me.tabPlayerId + '] select.ddlTempo option[value=' + barTime + ']');
        if (option.length > 0) {
            $(option).prop('selected', true);


Figure 19. The setupBarTime function configures the bar time via attribute

It is possible to predefine the tuning variable by just adding the tuning attribute in the pre tag:


setupTuning: function () {
    var me = this;
    var tuning = $(me.el).attr('tuning');
    if (tuning) {
        var note = '';
        var stringIndex = 0;
        for (var i = tuning.length - 1; i >= 0; i--) {
            note = tuning[i] + note;
            var option = $('div.tabPlayerControls[tabPlayerId=' + me.tabPlayerId + '] select.ddlTuning' + (6 - stringIndex) + ' option[note=' + note + ']');
            if (option.length > 0) {
                $(option).prop('selected', true);
                note = '';


Figure 20. The setupTuning function configures the tuning via attribute

The formatPre function performs an important task in our application: it replaces the note numbers inside the tab with span tags that highlight the notes.


formatPre: function () {
    var me = this;
    var lines = $(me.el).html().split('\n');
    var html = ''

    var lineIndex = 0;
    var tabStripLine = -1;
    $(lines).each(function (index, line) {
        if (line.indexOf('-') >= 0 && line.indexOf('|') >= 0) {
            var isNewTabStrip = false;
            if (tabStripLine == -1) {
                tabStripLine = index;
                isNewTabStrip = true;

            html += line.replace(/(\d+)/gm, function (expression, n1, n2) {
                var noteName = 'note' + octaves[parseInt(me.guitarStrings[lineIndex].octaveNoteIndex) + parseInt(expression)];
                return '<span class="note" title="' + noteName.replace(/\d/, '').replace('note', '') + '" string="' + lineIndex + '" pos="' + n2 + '" tabStripLine="' + tabStripLine + '">' + expression + '</span>';
            }) + '\n';
            if (lineIndex == 6)
                lineIndex = 0;
        else {
            lineIndex = 0;
            html += line + '\n';
            tabStripLine = -1;

    var noteId = 1;
    $($(me.el).find('span.note')).each(function (index, span) {
        $(span).attr({ noteId: noteId++});


Figure 22. The formatPre function highlights the notes

The play_multi_sound function searches for finished channels and use them to play one specific sound.


play_multi_sound: function (s, stringIndex, volume) {
    var me = this;
    for (a = 0; a < me.audiochannels.length; a++) {
        var volume = me.audiochannels[a]['channel'].volume;
        me.audiochannels[a]['channel'].volume = (volume - .2) > 1 ? volume - .2 : volume;

    for (a = 0; a < me.audiochannels.length; a++) {
        thistime = new Date();
        if (me.audiochannels[a]['finished'] < thistime.getTime()) {          // is this channel finished?
            if (document.getElementById(s)) {
                me.audiochannels[a]['finished'] = thistime.getTime() + document.getElementById(s).duration * 1000;
                me.audiochannels[a]['channel'].src = document.getElementById(s).src;
                me.audiochannels[a]['channel'].volume = [0.4, 0.5, 0.6, 0.7, 0.9, 1.0][stringIndex];



Figure 23. The play_multi_sound function

The play function is divided in some internal functions, that parse, organize, calculate which sounds correspond to each note value, and - obviously - tell the audio files to be played accordingly.

The checkStep function finds out how many characters exist in a single bar, and then calculates the interval time allocated for each step in the process.

The playStep function calculates the corresponding audio file and plays it.

The configureInterval controls the player's "heartbeat" and provides the tempo for the music.


play: function () {
    var me = this;
    if (me.isPaused) {
        me.isPaused = false;
    var ddlTempo = $('div.tabPlayerControls[tabPlayerId=' + me.tabPlayerId + '] select.ddlTempo');
    me.barTime = $(ddlTempo).val();

    $(me.guitarStrings).each(function (stringIndex, guitarString) {
        var ddlTuning = $('div[tabPlayerId=' + me.tabPlayerId + '] .ddlTuning' + (6 - stringIndex));
        me.guitarStrings[stringIndex].octaveNoteIndex = ddlTuning.val();
        me.guitarStrings[stringIndex].currentNoteIndex = 0;

    var pre = $(me.el);
    var lines = $(pre).html().split('\n');
    var tabLines = ['', '', '', '', '', ''];
    var lineIndex = 0;
    $(lines).each(function (index, line) {
        if (line.indexOf('-') >= 0 && line.indexOf('|') >= 0) {
            tabLines[lineIndex] = tabLines[lineIndex] + line.trim().substring(1).replace(/(<([^>]+)>)/ig, "");;
            if (lineIndex == 6)
                lineIndex = 0;
        else {
            lineIndex = 0;

    var stepCount = tabLines[0].trim().length

    var checkStep = function () {
        $(tabLines).each(function (index, tabLine) {
            tabLine = tabLine.trim();
            var fretValue = tabLine[step];
            if (index == 0 && (fretValue == '|' || ('EADGBe'.indexOf(fretValue) >= 0))) {

                var sub = tabLine.substring(step + 3);
                var barLength = sub.indexOf('|');
                if (barLength > 0) {
                    step += 1;

    var playStep = function () {
        var stepCharLength = 1;
        var stepHasDoubleDigitNote = false;
        $(tabLines).each(function (index, tabLine) {
            tabLine = tabLine.trim();
            if (!isNaN(tabLine[step]) && !isNaN(tabLine[step + 1])) {
                stepHasDoubleDigitNote = true;
                return false;

        $(tabLines).each(function (index, tabLine) {
            tabLine = tabLine.trim();

            var guitarString = me.guitarStrings[index];
            var fretValue = '';
            if (stepHasDoubleDigitNote) {
                fretValue = (tabLine[step] + '' + tabLine[step + 1]).replace('-', '');
                stepCharLength = 2;
            else {
                fretValue = tabLine[step];

            if (!isNaN(fretValue)) {
                var span = $(me.el).find('span.note[string=' + index + ']:eq(' + me.guitarStrings[index].currentNoteIndex + ')');
                $(span).addClass('played').addClass(fretValue.length == 1 ? 'onedigit' : 'twodigits');
                fretValue = parseInt(span.html());

                var noteName = 'note' + octaves[parseInt(guitarString.octaveNoteIndex) + parseInt(fretValue)];

                me.play_multi_sound(noteName, index, me.volume);

                me.volume = .5;

        return stepCharLength;

    var configureInterval = function (newBarLength) {
        if (me.interval)

        me.interval = setInterval(function () {
            if (!me.isPaused) {
                var stepCharLength = playStep();
                step += stepCharLength;
                if (step >= stepCount) {
        }, me.barTime / me.BAR_LENGTH);

    var step = 0;



Figure 24. The play function, the most important piece of code


Image 12

Figure 12. The HTML5 Tab Player - Classical Demo Page

As you can see, there is so much room for improvement... Also, other music-related components may be built on top of the plug-in (in fact, I wish to publish a tablature composer that I'm thinking of very soon). I hope you enjoyed the HTML5 Tab Player plug-in! Please leave your complaint or support in the comment section below. Let me know what you are thinking.


2014-10-28: First version.


This article, along with any associated source code and files, is licensed under The Code Project Open License (CPOL)

Written By
Instructor / Trainer Alura Cursos Online
Brazil Brazil

Comments and Discussions

GeneralMy vote of 5 Pin
syed shanu18-Aug-15 14:39
professionalsyed shanu18-Aug-15 14:39
GeneralMy vote of 5 Pin
S Houghtelin20-Nov-14 2:02
professionalS Houghtelin20-Nov-14 2:02
GeneralMy vote of 5 Pin
Agent__00713-Nov-14 17:05
professionalAgent__00713-Nov-14 17:05
GeneralRe: My vote of 5 Pin
Marcelo Ricardo de Oliveira15-Nov-14 11:20
mvaMarcelo Ricardo de Oliveira15-Nov-14 11:20
GeneralMy vote of 5 Pin
Florian Rappl8-Nov-14 3:59
professionalFlorian Rappl8-Nov-14 3:59
GeneralRe: My vote of 5 Pin
Marcelo Ricardo de Oliveira9-Nov-14 13:06
mvaMarcelo Ricardo de Oliveira9-Nov-14 13:06
GeneralYour guitar looks spiffy Pin
Kevin Priddle6-Nov-14 8:34
professionalKevin Priddle6-Nov-14 8:34
GeneralRe: Your guitar looks spiffy Pin
Marcelo Ricardo de Oliveira6-Nov-14 11:08
mvaMarcelo Ricardo de Oliveira6-Nov-14 11:08
GeneralMy vote of 5 Pin
iRakeshJha4-Nov-14 4:26
professionaliRakeshJha4-Nov-14 4:26
GeneralRe: My vote of 5 Pin
Marcelo Ricardo de Oliveira6-Nov-14 11:06
mvaMarcelo Ricardo de Oliveira6-Nov-14 11:06
QuestionWork with FireFox? Pin
Stephan Clark4-Nov-14 4:03
professionalStephan Clark4-Nov-14 4:03
AnswerRe: Work with FireFox? Pin
Marcelo Ricardo de Oliveira6-Nov-14 11:06
mvaMarcelo Ricardo de Oliveira6-Nov-14 11:06
Questionanother nice one sir Pin
Sacha Barber1-Nov-14 20:36
MemberSacha Barber1-Nov-14 20:36
AnswerRe: another nice one sir Pin
Marcelo Ricardo de Oliveira3-Nov-14 1:02
mvaMarcelo Ricardo de Oliveira3-Nov-14 1:02
GeneralMy vote of 5 Pin
ColinRBrown31-Oct-14 7:12
professionalColinRBrown31-Oct-14 7:12
GeneralRe: My vote of 5 Pin
Marcelo Ricardo de Oliveira3-Nov-14 1:02
mvaMarcelo Ricardo de Oliveira3-Nov-14 1:02
QuestionI think this is a really good job! Pin
VMAtm31-Oct-14 0:45
MemberVMAtm31-Oct-14 0:45
AnswerRe: I think this is a really good job! Pin
Marcelo Ricardo de Oliveira3-Nov-14 1:01
mvaMarcelo Ricardo de Oliveira3-Nov-14 1:01
GeneralMy vote of 5 Pin
priti@cp30-Oct-14 17:29
professionalpriti@cp30-Oct-14 17:29
GeneralRe: My vote of 5 Pin
Marcelo Ricardo de Oliveira3-Nov-14 1:01
mvaMarcelo Ricardo de Oliveira3-Nov-14 1:01
GeneralMy vote of 5 Pin
Helio Guilherme30-Oct-14 3:32
professionalHelio Guilherme30-Oct-14 3:32
GeneralRe: My vote of 5 Pin
Marcelo Ricardo de Oliveira30-Oct-14 10:52
mvaMarcelo Ricardo de Oliveira30-Oct-14 10:52
GeneralMy Vote 5 Pin
Shemeemsha (ഷെമീംഷ)28-Oct-14 23:43
MemberShemeemsha (ഷെമീംഷ)28-Oct-14 23:43
GeneralRe: My Vote 5 Pin
Marcelo Ricardo de Oliveira30-Oct-14 10:47
mvaMarcelo Ricardo de Oliveira30-Oct-14 10:47
QuestionGreat job! Keep going. Pin
Prashanth Puranik28-Oct-14 22:20
MemberPrashanth Puranik28-Oct-14 22:20

General General    News News    Suggestion Suggestion    Question Question    Bug Bug    Answer Answer    Joke Joke    Praise Praise    Rant Rant    Admin Admin

Use Ctrl+Left/Right to switch messages, Ctrl+Up/Down to switch threads, Ctrl+Shift+Left/Right to switch pages.
