Introduction

This is an article where I will  focus on using Intel Galileo board  with Windows Embedded setup. The whole concept lies on setting up Intel Galileo with Windows embedded from the external SD card and then making necessary  arrangements  for the setup. It will be step by step analysis on how to get going with Windows Embedded OS and Intel  Galileo Board

Background

This is an article which will form basis for the work to follow. This will focus on a simple example using Visual Studio 2013 and running the sketch on Intel Galileo Board. Assumptions are little bit familiarity with C++ Visual Studio Processing language.



Dev Environment for Windows Embedded

Lets get Started

Setting up Intel Galileo board

Tips:-

Windows Embedded is supported for  Intel Galileo Gen1 Board only as of now .The image os Windows Embedded is compliant with Gen 1 board only.

Lets Setup Intel Galileo Board with PC

Things you require First hand

Intel Galileo Board

2 USB cables

PC or Laptop to connect the board.

You need to  download  Intel Galileo Board software from the following link.

https://communities.intel.com/docs/DOC-22226

 You need unzip the Software give a name to the folder where you will keep it.



 You need power on the Gen1 board  the attach the two USB Cables with your PC to get the Intel Galileo recognized you need to go to Device Manager then under  other devices you will find something called Gadget Serial  v2.4 Right click on it and click on update Software























Browse for the  software driver























You  will be found under

C:\<Adruino_folder>\arduino-1.5.3-Intel.1.0.4\drivers

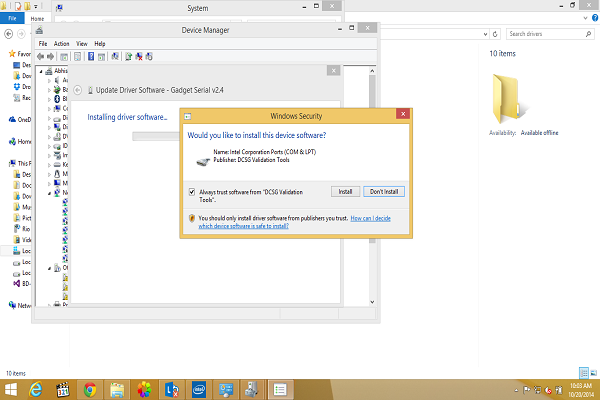

It will ask for an Installation for the device software you need to click on yes

You will get a message that Software is successfully installed

You will be able to find it in ports(COM & LPT)























Setting up Windows Embedded

To get Started you need to register yourself at the following link

https://www.windowsondevices.com/signup.aspx

Do a Signup over there so that you have access to utility software that are needed for Windows Embedded

As you register the next step would be to get the softwares

https://connect.microsoft.com/windowsembeddedIoT/Downloads

As my friend was one of the lucky ones who got the pre imaged Windows embedded images as well as Intel Galileo board so my job was to only download the Windows Developer program for IOT MSI installer

I copied the MSI to my computer























Double click and install it























With it you will see that very good utility program gets installed on your Computer Galileo Watcher. It keeps track of Galileo connected to your network.

You need to setup Telnet Client on your Computer

For that you need to go to Control Panel

















Go to program and features and then turn windows features  on and off





















Now we need to install Telnet Client tick Telnet Client as it installs restart your computer.





















Now as you restart  the computer you will see the Galileo Watcher running





















As you haven't configured Intel Galileo board with the PC you will see nothing

Things you need to do

get one LAN cable

attach it to Galileo port and directly to PC or laptop

Put the  imaged  SD card(which came with Windows embedded installed) to the Galileo  Card Slot

power on Galileo

Now run the Galileo Watcher app in administrator mode





















The Galileo Watcher will now show the Intel Galileo board



It will show MAC Address IP address

Right Click on Galileo Watcher and then open it up in Web browser





















If everything is in order you will get to see the web page for the Intel Galileo



















Start Visual Studio

You will see as you have installed MSI package for Galileo the IOT template

under Visual C++ apps





















We name the app as Galileo Wiring App1 now click OK

As you click Ok a pop up screen will come up you need to press yes to target Galileo v1





















A look at project files























Click on build as Remote Windows Debugger

Now as the build process continues it will ask for Admin privileges of the Intel Galileo the pre-configured

Username is :-administrator  password :-admin

and then it will push the code to Galileo and if everything goes well  you will see LED blinking in the Intel Galileo board

The code for Main.cpp file



#include "stdafx.h"
#include "arduino.h"

int _tmain(int argc, _TCHAR* argv[])
{
    return RunArduinoSketch();
}

int led = 13;  // This is the pin the LED is attached to.

void setup()
{
    // TODO: Add your code here

    pinMode(led, OUTPUT);       // Configure the pin for OUTPUT so you can turn on the LED.
}

// the loop routine runs over and over again forever:
void loop()
{
    // TODO: Add your code here

    digitalWrite(led, LOW);    // turn the LED off by making the voltage LOW
    Log(L"LED OFF\n");
    delay(1000);               // wait for a second
    digitalWrite(led, HIGH);   // turn the LED on by making the voltage HIGH
    Log(L"LED ON\n");
    delay(1000);               // wait for a second
}

You have successfully run the first program on Intel Galileo using Windows Embedded OS
