Creating Tabs Using Multiview and View Controls

Introduction

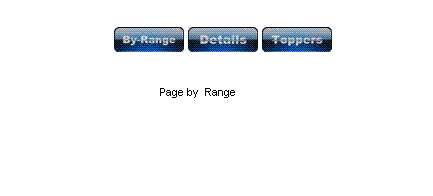

This article discusses the issue of creating tabs using ASP.NET controls (View and Multiview). The layout we will discuss contains three Buttons that are linked to a Multiview container that contains three Views as child controls. We will see how we can customize the simplicity of View and Multiview controls to create flexible and good looking tabs. This is not a fully functional tab, but just a blue print of the concept, you can customize it according to your own needs.

Using the code

The article is written using ASP.NET with C#. The .Aspx page is given blow. Here we have to create three image button controls. After that we create a container in the form of a Multiview server control, inside which we create three nested View controls which we name view1, view2, view3, respectively.

<table border="0" cellpadding="2" cellspacing="3" width="100%">
<tr>
<td align="center">
<asp:ImageButton ID="ImageButton1" runat="server" Width="70px"
   Height="25px" onclick="ImageButton1_Click" ImageUrl="~/View_images/By-Range_n.Png" />

<asp:ImageButton ID="ImageButton2" runat="server" Width="70px"
   Height="25px" onclick="ImageButton2_Click" ImageUrl="~/View_images/Details_n.Png" />

<asp:ImageButton ID="ImageButton3" runat="server" Width="70px"
   Height="25px" onclick="ImageButton3_Click" ImageUrl="~/View_images/Toppers_n.Png"  />
</td></tr>
<tr><td colspan="3"><asp:MultiView ID="MultiView1" runat="server">
<table width="100%" cellpadding="2" cellspacing="5">
<tr><td>
<asp:View ID="View1" runat="server">
By range view page.
</asp:View>
</td>
<td>
<asp:View ID="View2" runat="server"><br />
Detail view page
</asp:View>
</td>
<td>
<asp:View ID="View3" runat="server">
Toppers view page
</asp:View></td></tr></table>
</td></tr></table>
</xmp>

The code for the code behind file is given below.

protected void Page_Load(object sender, EventArgs e)
{
    if (!IsPostBack)
    {
        SetDefaultView();
    }
  	set();
}

protected void set()
{
    ImageButton1.ImageUrl = "View_images/By-Range_n.Png";
    ImageButton2.ImageUrl = "View_images/Details_n.Png";
    ImageButton3.ImageUrl = "View_images/Toppers_n.Png";
}

private void SetDefaultView() // reder view at first page load
{
    MultiView1.ActiveViewIndex = 0;
}

protected void ImageButton1_Click(object sender, ImageClickEventArgs e)
// assign image to pressed button
{
    MultiView1.ActiveViewIndex = 0;
    ImageButton1.ImageUrl = "View_images/By-Range_p.Png";
    GridView1.Visible = false;
}

protected void ImageButton2_Click(object sender, ImageClickEventArgs e)
{
    MultiView1.ActiveViewIndex = 1;
    ImageButton2.ImageUrl = "View_images/Details_p.Png";
}

protected void ImageButton3_Click(object sender, ImageClickEventArgs e)
{
    MultiView1.ActiveViewIndex = 2;
    ImageButton3.ImageUrl = "View_images/Toppers_p.Png";
}

Points of Interest

You can see how simple it is to link a button server control to a Multiview container, which gives a look of multiple pages. With this we do not need to post our page to the server for processing, which increases the page response time.
