Introduction
Regular expressions have been widely popular in languages such as PERL and AWK and have been utilized for pattern matching, text manipulation and text searching. These languages are specifically known for its advanced pattern matching features. .NET regular expressions are based on that of Perl and are compatible with Perl 5 regular expressions.
To begin with, they are not as complex as they look, especially if you start experimenting with them. I would recommend that you download a tool such as Expresso (http://www.ultrapico.com/), to become familiar with regular expressions.
Regular Expression Elements
Some of the commonly used regular expression elements are:
| ^ | Matches start of input |
| $ | Matches end of input |
| . | Matches any character except new line |
| | | OR |
| * | Match the preceding expression 0 or more number of times |
| + | Match the preceding expression 1 or more number of times |
| ? | Match the preceding expression 0 or 1 number of times |
| () | Logical group / sub-expression (capture as auto number group) |
| (?<name>(exp)) | Named capture group |
| (?=exp) | Match any position preceding a suffix exp |
| (?<=exp) | Match any position following a prefix exp |
| (?!exp) | Match any position after which exp is not found |
| (?<!--exp) | Match any position before which exp is not found |
| […] | List of characters to match |
| [^expression] | Not containing any of the specified character |
| {n} or {n. m} | Quantifier (Match exact number or range of instances) |
| (?(exp (yes|no)) | If expression (exp) is true, match yes part else no part |
| \ | Escape character (to match any of the special characters) |
| \w | Match any word character |
| \W | Match any non-word character |
| \s | Match any white space character |
| \S | Match any non-white space character |
| \d | Match any numeric digit |
| \D | Match any numeric digit |
| \b | Match a backspace if in character matching mode ([]). Otherwise match the position at beginning or end of a word |
| \t | Match tab |
| \r | Match carriage return |
| \n | Match line feed |
The following are matching substitutions:
| num | Substitute last substring matched by group number num |
| ${name} | Substitute last substring matched by group name |
| $& | Substitute a copy of entire text itself |
| $` | Substitute all the text of the input string before match |
| $’ | Substitute all the text of the input string after match |
| $+ | Substitute last matched group |
| $_ | Substitute input string |
| $$ | Substitute literal $ |
Regular expressions could also be used to find repeating patterns by making use of backreferencing, using which you can name a pattern found and then use that reference elsewhere in the expression. This naming of patterns is also useful in case we need to parse a string like free form date or time strings.
Some Example Regular Expressions
- Match a word - \btest\b
- Match all 6 letter words - \b\w{6}\b
- Match all 6 digit numbers - \b\d{6}\b
- Match any number \b\d+\b
Instead of giving loads of examples here, I suggest that you download Expresso and check its analyzer view for detailed analysis of the regular expression.
Regular Expressions in .NET
As already discussed, .NET regular expressions are based on that of Perl and are compatible with Perl 5 regular expressions. .NET contains a set of powerful classes that makes it even easier to use regular expressions. The classes are available in the System.Text.RegularExpressions namespace. The following is a list of classes in the namespace:
| Class | Description |
| Capture | Represents the results from a single subexpression capture. Capture represents one substring for a single successful capture. |
| CaptureCollection | Represents a sequence of capture substrings. CaptureCollection returns the set of captures done by a single capturing group. |
| Group | Group represents the results from a single capturing group. A capturing group can capture zero, one, or more strings in a single match because of quantifiers, so Group supplies a collection of Capture objects. |
| GroupCollection | Represents a collection of captured groups. GroupCollection returns the set of captured groups in a single match. |
| Match | Represents the results from a single regular expression match. |
| MatchCollection | Represents the set of successful matches found by iteratively applying a regular expression pattern to the input string. |
| Regex | Represents an immutable regular expression. |
| RegexCompilationInfo | Provides information that the compiler uses to compile a regular expression to a stand-alone assembly. |
How to Validate an Input String in .NET
- Create a
Regex object ‘RegexObj’ - Call
RegexObj.IsMatch (subjectString), which will return a Boolean showing validity of input string
How to Perform Regular Expression Substitution (Search and Replace) in .NET
- Create a
Regex object ‘RegexObj’ - Call
RegexObj.Replace ( subjectString, replaceString ), which will return a Boolean showing validity of input string
How to Parse an Input String in .NET
- Create a
Regex object ‘RegexObj’, make sure to name the expressions - Call
RegexObj.Match ( subjectString ), which will return a list of matches in the input string as per the match regular expression - Iterate through the matches to perform post parsing
Free Form Time Parsing Function in .NET
The following is a utility function that can parse a free format time string. This could be extended to a combined date and time parser along with many more enhancements. If anyone needs further help, feel free to contact me.
private const string TIME_STR = @"^\s?(?"
+ @"(?\d{1,2})" + @"(:(?\d{1,2}))?"
+ @"\s?((?(am|pm)))?"
+ @")\s?$";
static DateTime ParseTime (string strTime)
{
DateTime currTime = DateTime.Now;
DateTime finalTime = DateTime.Today;
Match m;
int hour = 0,
min = 0;
Regex regExTime = new Regex (TIME_STR,
RegexOptions.IgnoreCase
| RegexOptions.CultureInvariant
| RegexOptions.IgnorePatternWhitespace
| RegexOptions.Compiled);
m = regExTime.Match (strTime);
if (m.Success)
{
if (m.Groups["hour"].Success)
hour = Int32.Parse (m.Groups["hour"].Value);
if (m.Groups["min"].Success)
min = Int32.Parse (m.Groups["min"].Value);
if (m.Groups["am_pm"].Success)
hour = ConvertAmPm (m.Groups["am_pm"].Value, hour);
}
else
throw new FormatException ("Invalid time format");
if (hour > 23 || min > 59)
throw new FormatException ("Invalid time format");
finalTime = new DateTime (currTime.Year, currTime.Month,
currTime.Day, hour, min, 0);
return finalTime;
}
private static int ConvertAmPm (string amPm, int hour)
{
int retHour = hour;
amPm = amPm.ToLower();
if (amPm.Equals("am"))
if (hour == 12)
retHour = 00;
else if (amPm.Equals("pm"))
if (hour != 12)
retHour = hour + 12;
else
throw new FormatException ("Invalid amPm flag format");
return retHour;
}

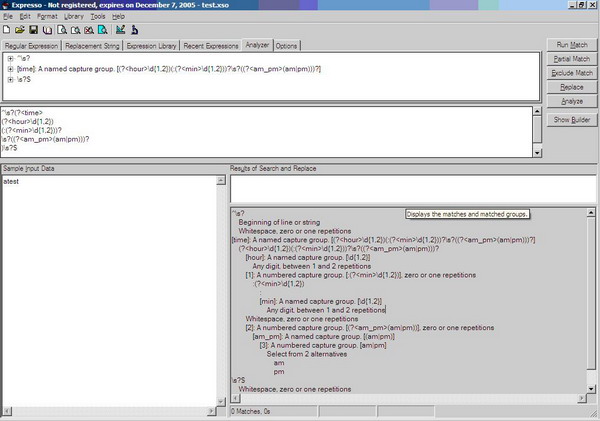

Expresso Analysis of the regular expression used above is shown in the figure below. This should help you understand the details.
