CaptureManager SDK - Capturing, Recording and Streaming Video and Audio from Web-Cams

Rate me:
Please Sign up or sign in to vote.
4.91/5 (212 votes)
11 Dec 2022CPOL63 min read
This article presents my project for capturing of video and audio sources on Windows OS by Microsoft Media Foundation.
In this article, we look at various demo programs showcasing the project. For example: web-cam capturing and viewing via OpenGL rendering, the way of using of Enhanced Video Renderer for rendering of live video via CaptureManager COM server, the way of DirectShow filter development for integrating CaptureManager SDK into 3rd party webcam applications (like Skype or Zoom).

During long time of development of CaptureManager project, I made significant progress and got many questions about implementing it into the other projects, including open source projects. After giving it some thought, I decided to publish the source code of CaptureManager SDK under open source license for free use by the friendly society of software developers. The source code of CaptureManager SDK can be downloaded using this link.

I would be glad to receive your responses about its usefulness, as well as your ideas about improving functionality of SDK and recommendations for other developers by the following links:

Image 1 Image 2 Image 3Image 4

The most interesting demo programs are listed below:

  • WPFVirtualCamera - DirectShow filter for integrating CaptureManager SDK into 3rd party webcam applications (like Skype or Zoom)
  • WPFStreamer (live video and audio streaming on Facebook (SSL encrypted connection: Facebook requires all live video streams to go over RTMPS, or the Real Time-Messaging Protocol (RTMP) on a TLS/SSL connection - this will help protect streaming content via encryption, thereby ensuring a greater level of data integrity) and YouTube sites) - Freeware version.
  • WPFRTSPClient - Freeware version
  • WPFRtspServer - Freeware version

CaptureManager SDK Versions

CaptureManager Help File

Image 5

Introduction

This article presents my project for capturing of video and audio sources on Windows OS by Microsoft Media Foundation.

I have spent much time on resolving different tasks with processing of video and audio data, and researched techniques for capturing of video and audio on Windows family OSs. DirectShow was the main technique for capturing live-video on Windows family OSs for long time. However, since Vista OS Microsoft has introduced a new framework for working with video and audio - Microsoft Media Foundation, and since Windows7 OS, it has features for working with webcam via USB Video Class driver and line audio input, I included that technology into many projects and wrote two articles about it:

Those articles present simple libraries for capturing webcams and grabbing of image frames, but Microsoft Media Foundation is a much more powerful framework. After some thinking, I decided to write a new solution for working with live-video and audio which can be more flexible than my previous solutions, and can take much more power (or force :)) of Microsoft Media Foundation. The solution can compete with Microsoft solution. The solution, which can be called the best anyone has seen before by any developer.

Background

I got an idea to write a new solution for working with webcams on basement of Microsoft Media Foundation when faced with one unusual task. So, the task was not resolved, but I had written some code and had decided to continue development of the solution.

At the beginning, the solution included only few classes and allowed to execute only few functions, but after adding some demands for this solution, I decided to write a simple SDK which allows to make capture configuration for the new tasks easy and to inject a new developed code into it by implementation of the Microsoft Media Foundation's and CaptureManager's interfaces.

As a result, I got this SDK for capturing, recording and steaming of live-video and audio from web-cams only by Microsoft Media Foundation.

Using the Code

CaptureManager SDK Demo Programs

OpenGLWebCamViewerViaCOMServer

This demo program presents only simple configuration of webcam capturing and viewing via OpenGL rendering.

To use CaptureManager, it needs to call the suitable interfaces from CaptureManager COM server. For setting of print output log destination, it needs to get ILogPrintOutControl interface:

C++
// get COM log interface
CComPtrCustom<iclassfactory> lCoLogPrintOut;

HRESULT lhresult = CoGetClassObject
(CLSID_CoLogPrintOut, CLSCTX_INPROC_SERVER, nullptr, IID_PPV_ARGS(&lCoLogPrintOut));

if (FAILED(lhresult))
    return lhresult;

CComPtrCustom<ilogprintoutcontrol> lLogPrintOutControl;

lCoLogPrintOut->LockServer(true);

lhresult = lCoLogPrintOut->CreateInstance(
    nullptr,
    IID_PPV_ARGS(&lLogPrintOutControl));

if (FAILED(lhresult))
    return lhresult;

// set log file for info
lhresult = lLogPrintOutControl->addPrintOutDestination(
    (DWORD)INFO_LEVEL,
    L"Log.txt");

if (FAILED(lhresult))
    return lhresult;

For getting main methods of the CaptureManager, it needs to get ICaptureManagerControl interface:

C++
CComPtrCustom<IClassFactory> lCoCaptureManager;

lhresult = CoGetClassObject
(CLSID_CoCaptureManager, CLSCTX_INPROC_SERVER, nullptr,
 IID_PPV_ARGS(&lCoCaptureManager));

if (FAILED(lhresult))
    return lhresult;

lCoCaptureManager->LockServer(true);

// get ICaptureManagerControl interfrace
CComPtrCustom<ICaptureManagerControl> lCaptureManagerControl;

lhresult = lCoCaptureManager->CreateInstance(
    nullptr,
    IID_PPV_ARGS(&lCaptureManagerControl));

if (FAILED(lhresult))
    return lhresult;

The topology of this demo program is presented in the next schema:

Image 6

You can get this demo program from the below link:

EVRWebCapViewerViaCOMServer

This demo program presents the way of using of Enhanced Video Renderer for rendering of live video via CaptureManager COM server.

This code allows to easily integrate this CaptureManager SDK into already created Windows application - it needs only handler on element of GUI which is used as webcam display. This code controls resizing of GUI element and modify renderer for changing of video size and proportion.

You can get this demo program from the below link:

CaptureManagerToCSharpProxy

This demo program presents the way of linking CaptureManager.dll with C# project. In this project, CaptureManagerSDK is wrapped by C# class CaptureManager. This class hides direct working with COM interface and marshaling of image data from unmanaged code. For flexibility of solutions, the class uploads CaptureManager.dll directly into the process and gets COM objects WITHOUT calling of COM's infrastructure - it allows to use CaptureManager COM server WITHOUT any registration in system.

You can get this demo program from the following link:

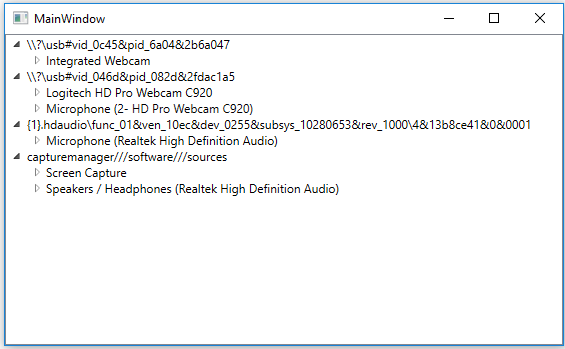

WPFSourceInfoViewer

This demo program presents the way of collecting information from sources and presenting it in the readable form. Information from the sources is presented in the form of XML document. There are some reasons for using of XML format for transferring information from COM server:

  1. Simple structure - Microsoft Media Foundation uses a huge amount of GUID constant and types which you need to know for understanding of the info, but in this solution, all of them are presented into the friendly form.
  2. Easy transfer from COM server
  3. Easy parsing - XPath expression allows to get almost any needed information and present it, it is easier than working with static defined classes and lists of info.
  4. In most cases, user needs to read which features are supported by source and select one of it.
  5. XML document is easily integrated source into code of different presentation models (for instance - MVVM)

Image 7

This demo program can be got from the below links:

WPFWebViewerCall

This demo program presents the way of viewing live video from webcam via COM Sever on C# - WPF by calling of video frames from WPF thread. This code gets XML document from CaptureManager and pares it for getting some information: name of device, type of data stream and list of supported resolutions. The code launches grabbing of video frames via ISampleGrabber interface and works in sync mode.

Image 8

You can get this demo program from the below links:

WPFWebViewerCallback

This demo program presents the way of viewing live video from webcam via COM Sever on C# - WPF by calling of video frames from CaptureManager thread. This code gets XML document from CaptureManager and pares it for getting some information: name of device, type of data stream and list of supported resolutions. The code registers the update method into the class with ISampleGrabberCallback interface and injects this class into COM Server. While CaptureManager gets a new video frame, it calls WPF update method and posts a message to update of frame. In this case, the thread of WPF is not overloaded by grabbing task.

Image 9

This demo program can be got from the below links:

WPFWebViewerEVR

This demo program presents the way viewing live video from webcam via COM Sever on C# - WPF by using of Enhanced Video Renderer from CaptureManager thread. This code gets XML document from CaptureManager and pares it for getting some information: name of device, type of data stream and list of supported resolutions. The code gets EVR node from CaptureManager by setting of HWND of the integrated WindowForms panel. In this case, all working with video frames is executed behind the WPF thread.

Image 10

This demo program can be got from the below links:

WPFRecorder

This demo program presents the way of working with CaptureManager SDK for capturing, encoding and recording / broadcasting video - audio from web cameras, microphones, desktop screens and speakers via COM Sever on C# - WPF.

Image 11

Code of this demo program presents the correct algorithm of working with CaptureManager SDK via COM Server interfaces. The final point of data stream can be file sink or byte stream sink. The last one is a more interesting opportunity than simply saving into the file. In this demo program, byte stream sink is implemented in the form of TCP Server with Loopback address and http port: 8080. A similar implementation can be found in the demo program on C++, but this one has one significant difference - in this demo program, the TCP Server is implemented in C#-.NET Framework. CaptureManager SDK is written in C++ and uses Windows Media Foundation on C, however, there is good news - CaptureManager SDK needs implementation of Windows Media Foundation interface IMFByteStream for streaming of bytes. Implementation C interface IMFByteStream on C# does not need any specific Windows Media Foundation function - it needs defining interfaces: IMFByteStream, IMFAsyncCallback, IMFAsyncResult; and enum constants:

  • MFAsyncCallbackQueue
  • MFASync
  • MFByteStreamSeekingFlags
  • MFByteStreamSeekOrigin
  • MFByteStreamCapabilities
  • UnmanagedNameAttribute

Implementation of those interfaces can be found in file NetworkStreamSink.cs, but I would like to point your attention on the next moments:

  1. In IMFByteStream interface, there are four implemented methods:
    • GetCapabilities
    • Write
    • BeginWrite
    • EndWrite

    In the first one, the code sets type of implementation of IMFByteStream interface - writeable, but not seekable. Method Write is used for sync writing data into the stream, while methods BeginWrite, EndWrite are used for async writing. However, there are some important moments: method Write is called once at the start - it writes the head of metadata streams: type of encoder, amount of streams, names of streams and other metadata. Async writing needs to execute the methods in the next order: BeginWrite, argument IMFAsyncCallback pCallback.Invoke, EndWrite, but calling of methods BeginWrite, EndWrite can be locked by the same mutex. It means that argument IMFAsyncCallback pCallback.Invoke must be executed in the separated thread - for example, by ThreadPool.QueueUserWorkItem.

  2. In the implementation of TCP Server, I have used async calling BeginAcceptTcpClient, and writing head data at the start of each connection - it allows to connect any amount of client to the media stream server.
    C#
    public void Start()
    {
    try
    {
    tcpListener = new TcpListener(Configuration.IPAddress, Configuration.Port);
    tcpListener.Start();
    tcpListener.BeginAcceptTcpClient(
    new AsyncCallback(callBack),
    tcpListener);
    }
    catch (Exception e)
    {
    }
    }

    /// <summary>
    /// Stops the WebServer thread
    /// </summary>

    public void Stop()
    {
    try
    {
    tcpListener.Stop();
    foreach (var item in mClientBag)
    {
    item.Value.Client.Close();
    item.Value.Client.Dispose();
    item.Value.Close();
    }
    tcpListener.Server.Dispose();
    }
    catch (Exception e)
    {
    }
    }

    private void callBack(IAsyncResult aIAsyncResult)
    {
    TcpListener ltcpListener = (TcpListener)aIAsyncResult.AsyncState;
    if (ltcpListener == null)
    return;
    TcpClient lclient = null;
    try
    {
    lclient = ltcpListener.EndAcceptTcpClient(aIAsyncResult);
    }
    catch (Exception exc)
    {
    return;
    }
    if (lclient != null && lclient.Client.Connected)
    {
    StreamReader streamReader = new StreamReader(lclient.GetStream());

    // Read full request with client header
    StringBuilder receivedData = new StringBuilder();
    while (streamReader.Peek() > -1)
    receivedData.Append(streamReader.ReadLine());
    string request = GetRequest(receivedData.ToString());
    if (!SuportedMethod(request))
    {
    SendError(StatusCode.BadRequest, "Only GET is supported.", lclient);
    lclient.Client.Close();
    lclient.Close();
    }
    else
    {
    Socket socket = lclient.Client;
    if (socket.Connected)
    {
    SendHeader(StatusCode.OK, lclient);
    lock (this)
    {
    if (mHeaderMemory != null)
    {
    int sentBytes = socket.Send(mHeaderMemory);
    }
    mClientBag[lclient] = lclient;
    }
    }
    }
    }
    ltcpListener.BeginAcceptTcpClient(
    new AsyncCallback(callBack),
    ltcpListener);
    }
  3. The head includes MIME type of byte stream, which allows to use in the future release the same solution for any type of media container - ASF, MP4, MKV.
    C#
    private void SendHeader(string mimeType, long totalBytes,
                            StatusCode statusCode, TcpClient aTcpClient)
    {
    StringBuilder header = new StringBuilder();
    header.Append(string.Format("HTTP/1.1 {0}\r\n", GetStatusCode(statusCode)));
    header.Append(string.Format("Content-Type: {0}\r\n", mimeType));
    header.Append(string.Format("Accept-Ranges: bytes\r\n"));
    header.Append(string.Format("Server: {0}\r\n", Configuration.ServerName));
    header.Append(string.Format("Connection: close\r\n"));
    header.Append(string.Format("Content-Length: {0}\r\n", totalBytes));
    header.Append("\r\n");

    SendToClient(header.ToString(), aTcpClient);
    }

This demo program can be obtained from the below links:

QtMinGWDemo

This demo program presents the way of working with CaptureManager SDK for capturing, encoding and recording / broadcasting live video and audio from web cameras, microphones, desktop screens and speakers via COM Sever on Qt framework. On Windows OS, there is a version of Qt for Visual Studio Compiler, but this demo presents using of CaptureManager SDK with Qt version for MinGW Compiler. Of course, this demo can be recompiled for Visual Studio Compiler, but version for MinGW Compiler shows flexibility of this SDK and compatibility with many other compilers. This demo includes code for capturing live video from web cameras and viewing by calling of samples, by callback of view update code from CaptureManager SDK inner thread or by direct drawing image via HWND of widget.

Image 12

Another example in this demo presents a way for connection of sources, encoders and sinks into the one pipe line of processing. This demo presents way for recording video and audio into the file and real code for writing of network stream broadcasting into the Internet code by Qt framework QTcpServer and QTcpSocket classes.

Image 13

You can get this demo program from the following link:

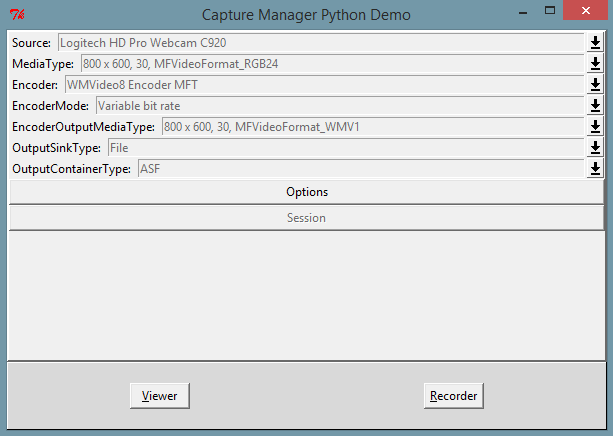

CaptureManagerSDKPythonDemo

This demo program presents the way of working with CaptureManager SDK for capturing of live video from web cameras in Python application on Windows OS. CaptureManager is built with using of Microsoft Media Foundation on Desktop Windows OSs and COM technology. As any COM server, CaptureManager can be integrated into the project via direct calling interfaces or type library. However, dynamic type programming languages have some problems with correct using type libraries. For resolving such problems, I included IDispatch and wrote implementation for many classes, but some projects need working with pointers on massive of memory and it could be a problem with dynamic types. For simplifying the solution, I implemented IDispatch interface only for limited functionality. This demo program presents functionality for selections of sources, encoders and rendering video via HWND and saving into the file.

Image 14

Image 15

This demo program can be downloaded from the below link:

WPFWebCamShot

This demo program presents the way of working with CaptureManager SDK for capturing single frame from video stream. CaptureManager SDK includes new mode for SampleGrabberCallSinkFactory - PULL.

This mode differs from SYNC and ASYNC modes. SYNC and ASYNC modes work in continuous mode - they send a request for the next sample after receiving the current one in automatic mode without blocking. It leads queue of requests and samples like in the image:

Image 16

This type is useful for presenting of video, but the task of capturing the single frame is faced with the next difficulty - 99 percents of frames are captured, decoded and delivered to the sink, but customer's code does not take it from sink. This task can be in reality - for example, taking single frame each one second while camera produces 30 frames per second - it this case, CPU wastes time and power on 29 frames which will throw out into the garbage. For such task new mode - PULL can be more useful. The sink sends request only while customer's code calls for the new single frame:

Image 17

It allows to utilize CPU power more effectively only for one task. The new mode can be useful also for many projects of image recognition - such projects usually process frames with frame rate low than can be produced by cameras, but video pipeline will spend much CPU power on frames, which will not be processed. PULL mode allows release some CPU power from video pipeline for other parts of program.

This demo program can be downloaded from the links below:

WPFWebCamSerialShots

This demo program presents the way of working with CaptureManager SDK for capturing the last serial frames from video stream. CaptureManager SDK 1.2.0 includes new type of stream control node - sample accumulator node:

It includes two sample accumulator nodes on 5 and 10 samples which collect/accumulate 5 or 10 LAST SAMPLES. The idea is that in the real world, taking of photo does not get executed in the moment of viewing of event. Human reaction on event, process of pressing on take photo button, sending event from hardware layer into layer of customer's code and requesting of the single frame take some time - from 500 ms till 1 second. It leads to loss of the important moment which was the reason of taking of photo. Sample accumulator nodes can compensate such time delay by accumulating the last samples in video stream. These samples can be gotten by PULL mode of SampleGrabberCallSinkFactory. It sends the request:

Image 18

and receives the last samples:

Image 19

It can be useful for resolving some problems, but accumulation of samples needs memory buffer which can be expanded fast - for example, for keeping of 10 last samples of RGB32 image of 1080p format it needs about 60 MByte - one second accumulation in such video can need about 200 MByte or more. Of course, it is possible to create a sample accumulator with different schema - for example, one by third - it means keeping only each third sample from video stream.

You can get this demo program from the below links:

CaptureManagerToJavaProxy

This demo program presents the way of linking CaptureManager.dll with Java VM. This project presents Java wrapper of COM CaptureManager via calling JNI functions. It includes CaptureManagerToJavaProxy framework for reflection Java code on C code of CaptureManagerNativeProxy.dll. CaptureManagerToJavaProxy framework includes code for calling native code from JAR - it allows build runnable JAR file with packed CaptureManagerNativeProxy.dll and CaptureManager.dll. This project uses Microsoft Media Foundation - it limits Java projects ONLY Windows OSs since from Windows 7.

This proxy program can be got from the below links:

CaptureManagerSDKJavaxDemo

This demo program presents the way of working with web camera on WindowsOSs via Java VM. This demo program allows present live video from web camera via Javax.swing GUI framework. It allows to get HWND descriptor of GUI component and use EVR for rendering without marshaling images via Java VM JNI - it allows safe CPU power:

Image 20

In addition, this demo program includes functionality for recording video from web camera into the ASF video file:

Image 21

You can test this demo program by compiling runnable JAR file or downloading CaptureManagerSDKJavaxDemo.jar.zip which contains CaptureManagerSDKJavaxDemo.jar. It could be an important point your attention on architecture of VM - x86 and x86-64. In most situations, Java compiled code can be executed on both architectures. However, CaptureManagerToJavaProxy calls native code via JNI - it leads to the next problems: Native DLL with JNI for x86 cannot be uploaded into x86-64 Java VM, and Native DLL with JNI for x86-64 cannot be uploaded into x86 Java VM. These problems are resolved by finding of Java VM architecture at runtime and uploading CaptureManagerNativeProxy.dll of the suitable architecture into the Java VM. It means that JAR includes TWO CaptureManagerNativeProxy.dll and TWO CaptureManager.dll.

Image 22

I think that you will find it is very suitable - of course, it is workable ONLY on WindowsOSs since Windows 7.

This demo program can be downloaded from the below links:

WindowsFormsDemo

This demo program presents the way of working with web camera on WindowsOSs on WindowsForms GUI.

Image 23

This demo program allows present live video from web camera via WindowsForms GUI framework. It allows get HWND descriptor of GUI component and use EVR for rendering without marshaling data via C# - it allows safe CPU power:

Image 24

This demo shows how to select different types of sources. At the present time, CaptureManager supports three source types:

  • Webcam
  • Screen DirectShow
  • Crossbar

These sources are different, and it is possible to have connected some of these source type devices at the same time. It leads to need a solution for flexible selecting the suitable group of source type. The next code of generating XPath query implements such functionality in this demo:

C#
string lXPath = "//*[";

if(toolStripMenuItem1.Checked)
{
    lXPath += "Source.Attributes/Attribute
    [@Name='MF_DEVSOURCE_ATTRIBUTE_SOURCE_TYPE_VIDCAP_CATEGORY']
    /SingleValue[@Value='CLSID_WebcamInterfaceDeviceCategory']";
}

if (toolStripMenuItem2.Checked)
{
    if (toolStripMenuItem1.Checked)
        lXPath += "or ";

    lXPath += "Source.Attributes/Attribute
    [@Name='MF_DEVSOURCE_ATTRIBUTE_SOURCE_TYPE_VIDCAP_HW_SOURCE']
    /SingleValue[@Value='Software device']";
}

if (dSCrossbarToolStripMenuItem.Checked)
{
    if (toolStripMenuItem1.Checked || toolStripMenuItem2.Checked)
        lXPath += "or ";

        lXPath += "Source.Attributes/Attribute
        [@Name='MF_DEVSOURCE_ATTRIBUTE_SOURCE_TYPE_VIDCAP_CATEGORY']
        /SingleValue[@Value='CLSID_VideoInputDeviceCategory']";
}

lXPath += "]";

In addition, this demo includes code for recording video and audio from media sources:

Image 25

This demo program can be obtained from the below links:

WaterMarkInjectorDemo

This demo program presents the way of working of custom Microsoft Media Foundation Transform with CaptureManager. This demo program allows 'inject' image into the live video via special custom Microsoft Media Foundation Transform which works like 'effect filter'.

Image 26

Image 27

You can get this demo program from the below link:

TextInjectorDemo

This demo program presents the way of working of custom Microsoft Media Foundation Transform with CaptureManager. This demo program allows 'inject' text string into the live video via special custom Microsoft Media Foundation Transform which works like 'effect filter' and change its content.

Image 28

Image 29

The text string content can be changed from application side in continuous mode with displaying result immediately. In this demo program, it is done by the following code:

C++
wchar_t ltext[MAXBYTE];

/* program main loop */
while (!bQuit)
{
	/* check for messages */
	if (PeekMessage(&msg, NULL, 0, 0, PM_REMOVE))
	{
		/* handle or dispatch messages */
		if (msg.message == WM_QUIT)
		{
			bQuit = TRUE;
		}
		else
		{
			TranslateMessage(&msg);
			DispatchMessage(&msg);
		}
	}

	_itow_s(++lFrameCount, ltext, 10);

	lITextWriter->writeText(ltext);

	Sleep(200);
}

You can get the demo program from the below link:

WPFImageViewer

This demo program presents the way of working with ICaptureProcessor, IInitilaizeCaptureSource, ICurrentMediaType, ISourceRequestResult interfaces of CaptureManagerToCSharpProxy. This demo program implements ICaptureProcessor interface in ImageCaptureProcessor class - this class allows 'inject' customized data into the capture session. ICaptureProcessor interface has the following methods:

  • void initilaize(IInitilaizeCaptureSource IInitilaizeCaptureSource)
  • void pause()
  • void setCurrentMediaType(ICurrentMediaType aICurrentMediaType)
  • void shutdown()
  • void sourceRequest(ISourceRequestResult aISourceRequestResult)
  • void start(long aStartPositionInHundredNanosecondUnits, ref Guid aGUIDTimeFormat)
  • void stop()

Method void initilaize(IInitilaizeCaptureSource IInitilaizeCaptureSource) must set in IInitilaizeCaptureSource argument XML text string with the description of capture source - this data is obtained from image info. Method void setCurrentMediaType(ICurrentMediaType aICurrentMediaType) allows select correct stream index and correct media type. Method void sourceRequest(ISourceRequestResult aISourceRequestResult) is executed by CaptureManage SDK for getting of raw data in format which is defined in XML text string with the description. The format of such XML document has the following form:

XML
<!--?xml version='1.0' encoding='UTF-8'?-->
<presentationdescriptor streamcount="1">
	<presentationdescriptor.attributes title="Attributes of Presentation">
		<attribute description="Contains the unique symbolic link for a
         video capture driver." guid="{58F0AAD8-22BF-4F8A-BB3D-D2C4978C6E2F}"
         name="MF_DEVSOURCE_ATTRIBUTE_SOURCE_TYPE_VIDCAP_SYMBOLIC_LINK"
         title="The symbolic link for a video capture driver.">
			<singlevalue value="ImageCaptureProcessor">
		</singlevalue></attribute>
		<attribute description="The display name is a human-readable string,
         suitable for display in a user interface."
         guid="{60D0E559-52F8-4FA2-BBCE-ACDB34A8EC01}"
         name="MF_DEVSOURCE_ATTRIBUTE_FRIENDLY_NAME"
         title="The display name for a device.">
			<singlevalue value="Image Capture Processor">
		</singlevalue></attribute>
	</presentationdescriptor.attributes>
	<streamdescriptor index="0" majortype="MFMediaType_Video"
     majortypeguid="{73646976-0000-0010-8000-00AA00389B71}">
		<mediatypes typecount="1">
			<mediatype index="0">
				<mediatypeitem description="Width and height of a video frame,
                 in pixels." guid="{1652C33D-D6B2-4012-B834-72030849A37D}"
                 name="MF_MT_FRAME_SIZE" title="Width and height of the video frame.">
					<value.valueparts>
						<valuepart title="Width" value="Temp_Width">
						<valuepart title="Height" value="Temp_Height">
					</valuepart></valuepart></value.valueparts>
				</mediatypeitem>
				<mediatypeitem description="Approximate data rate of the
                 video stream, in bits per second, for a video media type."
                 guid="{20332624-FB0D-4D9E-BD0D-CBF6786C102E}"
                 name="MF_MT_AVG_BITRATE"
                 title="Approximate data rate of the video stream.">
					<singlevalue value="33570816">
				</singlevalue></mediatypeitem>
				<mediatypeitem description="The major type defines the
                 overall category of the media data."
                 guid="{48EBA18E-F8C9-4687-BF11-0A74C9F96A8F}"
                 name="MF_MT_MAJOR_TYPE" title="Major type GUID for a media type.">
					<singlevalue guid="{73646976-0000-0010-8000-00AA00389B71}"
                     value="MFMediaType_Video">
				</singlevalue></mediatypeitem>
				<mediatypeitem description="Default surface stride,
                 for an uncompressed video media type.
                 Stride is the number of bytes needed to go from one row of pixels
                 to the next." guid="{644B4E48-1E02-4516-B0EB-C01CA9D49AC6}"
                 name="MF_MT_DEFAULT_STRIDE" title="Default surface stride.">
					<singlevalue value="Temp_Stride">
				</singlevalue></mediatypeitem>
				<mediatypeitem description="Specifies for a media type
                                            whether the samples have a fixed size."
                               guid="{B8EBEFAF-B718-4E04-B0A9-116775E3321B}"
                               name="MF_MT_FIXED_SIZE_SAMPLES"
                               title="The fixed size of samples in stream.">
					<singlevalue value="True">
				</singlevalue></mediatypeitem>
				<mediatypeitem description="Frame rate of a video media type,
                                            in frames per second."
                               guid="{C459A2E8-3D2C-4E44-B132-FEE5156C7BB0}"
                               name="MF_MT_FRAME_RATE" title="Frame rate.">
					<ratiovalue value="10.0">
						<value.valueparts>
							<valuepart title="Numerator" value="10">
							<valuepart title="Denominator" value="1">
						</valuepart></valuepart></value.valueparts>
					</ratiovalue>
				</mediatypeitem>
				<mediatypeitem description="Pixel aspect ratio for a
                 video media type." guid="{C6376A1E-8D0A-4027-BE45-6D9A0AD39BB6}"
                 name="MF_MT_PIXEL_ASPECT_RATIO" title="Pixel aspect ratio.">
					<ratiovalue value="1">
						<value.valueparts>
							<valuepart title="Numerator" value="1">
							<valuepart title="Denominator" value="1">
						</valuepart></valuepart></value.valueparts>
					</ratiovalue>
				</mediatypeitem>
				<mediatypeitem description="Specifies for a media type
                 whether each sample is independent of the other samples
                 in the stream." guid="{C9173739-5E56-461C-B713-46FB995CB95F}"
                 name="MF_MT_ALL_SAMPLES_INDEPENDENT" title="Independent of samples.">
					<singlevalue value="True">
				</singlevalue></mediatypeitem>
				<mediatypeitem description="Specifies the size of each sample,
                                            in bytes, in a media type."
                               guid="{DAD3AB78-1990-408B-BCE2-EBA673DACC10}"
                               name="MF_MT_SAMPLE_SIZE"
                               title="The fixed size of each sample in stream.">
					<singlevalue value="Temp_SampleSize">
				</singlevalue></mediatypeitem>
				<mediatypeitem description="Describes how the frames in a
                                            video media type are interlaced."
                               guid="{E2724BB8-E676-4806-B4B2-A8D6EFB44CCD}"
                               name="MF_MT_INTERLACE_MODE"
                               title="Describes how the frames are interlaced.">
					<singlevalue value="MFVideoInterlace_Progressive">
				</singlevalue></mediatypeitem>
				<mediatypeitem description="The subtype GUID defines a
                               specific media format type within a major type."
                               guid="{F7E34C9A-42E8-4714-B74B-CB29D72C35E5}"
                               name="MF_MT_SUBTYPE"
                               title="Subtype GUID for a media type.">
					<singlevalue guid="{Temp_SubTypeGUID}">
				</singlevalue></mediatypeitem>
			</mediatype>
		</mediatypes>
    </streamdescriptor>
</presentationdescriptor>

Temp_SubTypeGUID defines image format, Temp_SampleSize is byte size of image, Temp_Stride is stride in byte or 0 for compressed formats, Temp_Width and Temp_Height are pixel width and height of image.

Image 30

You can download this demo program from the below links:

WPFIPCameraMJPEGViewer

This demo program presents the way of working with ICaptureProcessor, IInitilaizeCaptureSource, ICurrentMediaType, ISourceRequestResult interfaces of CaptureManagerToCSharpProxy. This demo program implements ICaptureProcessor interface in IPCameraMJPEGCaptureProcessor class - this class allows 'inject' MJPEG frames from IP camera. This class connects to the selected web camera by HTTP web socket and redirect the received data into the capture session.

ICaptureProcessor interface has the below methods:

  • void initilaize(IInitilaizeCaptureSource IInitilaizeCaptureSource)
  • void pause()
  • void setCurrentMediaType(ICurrentMediaType aICurrentMediaType)
  • void shutdown()
  • void sourceRequest(ISourceRequestResult aISourceRequestResult)
  • void start(long aStartPositionInHundredNanosecondUnits, ref Guid aGUIDTimeFormat)
  • void stop()

Method void initilaize(IInitilaizeCaptureSource IInitilaizeCaptureSource) must set in IInitilaizeCaptureSource argument XML text string with the description of capture source - this data is got from image. Method void setCurrentMediaType(ICurrentMediaType aICurrentMediaType) allows select correct stream index and correct media type. Method void sourceRequest(ISourceRequestResult aISourceRequestResult) is executed by CaptureManage SDK for getting of raw data in format which is defined in XML text string with the description.

Image 31

This demo program can be got from the following links:

WPFViewerEVRDisplay

This demo program presents the way of working with IEVRMultiSinkFactory and IEVRStreamControl interfaces of CaptureManagerToCSharpProxy. This demo program shows way for creating of the EVR sink from Direct3DSurface9 interface. WPF allows present DirectX texture as regular image via System.Windows.Interop.D3DImage class. However, the demand for compatibility on wide range Windows OSs allows use only old DirectX technique - DirectX9. This code creates render target texture of Direct3DSurface9 interface and CaptureManager uses this texture a destination surface. This solution allows to easily integrate the rendering result with the WPF GUI components.

Image 32

This demo program shows how to use scaling and setSrcPosition method of IEVRStreamControl interface for effective implementation of zooming and defining Region Of Interest (ROI) and controlling them.

Image 33

setSrcPosition method has arguments Left, Right, Top, Bottom which define corners of ROI Rectangle in relative value from 0.0f to 1.0f. This demo uses Screen Capture source for correct working without accessible USB cameras.

Image 34

This demo program can be got from the following links:

WPFMultiSourceViewer

This demo program presents the way of working with IEVRMultiSinkFactory and IEVRStreamControl interfaces of CaptureManagerToCSharpProxy. This demo program shows a way for creating two EVR sinks and controlling them.

Image 35

This demo shows how connect them with different capture sessions and control of destination: size, position, scale, flush. This demo uses Screen Capture sources for correct working without accessible USB cameras.

Image 36

You can get this demo program from the following links:

WPFIPCameraMJPEGMultiSourceViewer

This demo program presents the way of working with ICaptureProcessor, IInitilaizeCaptureSource, ICurrentMediaType, ISourceRequestResult, IEVRMultiSinkFactory and IEVRStreamControl interfaces of CaptureManagerToCSharpProxy. This demo program shows a way for creating of two EVR sinks, controlling them and connecting them with two instances of IPCameraMJPEGCaptureProcessor class.

Image 37

You can get this demo program from the following links:

EVRVieweingAndRecording

This demo program presents the way of working with CaptureManager SDK for capturing of live video and audio from sources, encoding them and recording them into the file with preview of live video. Connecting of components is presented on the next schema:

Image 38

Demo program has console interface:

Image 39

This demo program can be got from the below link:

WPFVideoAndAudioRecorder

This demo program presents the way of working with CaptureManager SDK for capturing of live video and audio from sources, encoding them and recording them into the file with preview of live video. Connecting of components is presented on the next schema:

Image 40

Demo program has WPF GUI and allows to control more correctly:

Image 41

Image 42

Image 43

This demo program can be got from the following links:

NativeMediaFoundationPlayer

This demo program presents the way of working with CaptureManager SDK for rendering video from media file by connecting it to the code of MediaFoundation player. The original video renderer of MediaFoundation has a limited functionality and can be used for simple programs, but for more complex solutions, it needs development of a renderer with the needed functionality. CaptureManager version 1.7.0 Freeware has supporting video rendering with the next functionality:

  1. MultiSink video rendering - it means that it is possible to render more than one video stream on the one video context. Each video rendering sink has independent control from others.
  2. It can use one of three video contexts:
    1. Handler on window which is rendering target:

      Image 44

    2. DirectX9 Texture - render target texture which can be used for texturing of mesh for final rendering:

      Image 45

    3. DirectX9 SwapChain - render target texture from swap chain of DirectX9 renderer:

      Image 46

  3. It allows control position, size and background color of rendering.

This demo program can be obtained from the following link:

WPFMediaFoundationPlayer

This demo program presents the way of working with CaptureManager SDK for rendering video from media file by connecting it to the code of MediaFoundation player.

Image 47

This demo program has WPF interface and show how correct create group of MediaFoundation players with CaptureManager MultiSink video renderers. It supports CaptureManager version 1.7.0 Freeware:

Image 48

Image 49

This demo program can be got from the following link:

UnityWebCamViewer

This demo program presents the way of working with CaptureManager SDK in Unity Game Development SDK on Windows OSs. CaptureManager SDK is included into the Unity Game Development SDK by plugin which allows move pointer of DirectX9 Rendering Texture into the C++ code for setting it like rendering target. C# code of the Unity Game Development SDK gets text string from CaptureManager SDK and displays information about sources.

Image 50

This demo program can be got from the following links:

WPFMultiSourceRecorder

This demo program presents the way for recording of video and audio data from many sources into the one file. CaptureManager supports flexible management of connection of many sources to many sinks. ASF sink implements Windows OS supporting of ASF Microsoft media format - special format for Microsoft platforms with many features. This demo program allows test one of these features - multi stream recording. It is possible select many sources for recording. Moreover, these sources can include more than one video source. It allows record synchronized video from many live video sources into the one media file.

Image 51

Schema of source connection has the next view:

Image 52

VideoLAN player can open such multi video stream file:

Image 53

This demo program can be got from the following links:

WPFScreenViewer

This demo program presents the way for modify "Screen Capture" source by adding of "normalize" mode. CaptureManager has functionality for capturing image from the screen of display. CaptureManager supports multi-display outputs and can create live video stream from "Screen Capture" source with two modes: regular and normalize. "Regular" mode is mode by default for "Screen Capture" source - it takes image from displays as-is - without any post processing:

"Landscape" image is taken in normal view:

Image 54

"Flipped Landscape" image is taken as image rotated on 180 degrees:

Image 55

"Portrait" image is taken as image rotated on 90 degrees:

Image 56

"Flipped Portrait" image is taken as image rotated on 270 degrees:

Image 57

It is done for keeping of the maximum quality of video encoding.

"Normalize" mode allows overcome problem with different proportion of screens by executing of image post processing operations. At the present moment, it supports one normalize - "Landscape" - " --normalize=Landscape" - it normalizes any image to the one type of orientation - top in upper part of image, bottom in lower part of image. it can be done in code:

C#
if ((bool)mNormalizeChkBtn.IsChecked)
    lextendSymbolicLink += " --normalize=Landscape";

Enabling this mode leads to the next result:

"Landscape" image is taken in normalize post processing:

Image 58

"Flipped Landscape" image is taken in normalize post processing:

Image 59

"Portrait" image is taken in normalize post processing:

Image 60

"Flipped Portrait" image is taken in normalize post processing:

Image 61

You can get this demo program from the following links:

WPFScreenRecorder

This demo program presents the way for setting of the "Screen Capture" source's options.

Image 62

"Cursor" option's extension is expanded by new attribute "Shape" - it has the following values:

  • "Rectangle" - shape of filling is rectangle
  • "Ellipse" - shape of filling is ellipse

Image 63

It allows to set the rectangle shape of back image:

Image 64

or ellipse shape of back image:

Image 65

"Clip" option allows define "Region Of Interest" on the desktop screen and clip it to the output video stream:

Image 66

XML of the new option has the form:

XML
<Option Type='Clip' >
    <Option.Extensions>
        <Extension Left='0' Top='0' Height='100' Width='100' />
    </Option.Extensions>
</Option>

This demo program can be got from the following links:

WPFWindowScreenRecorder

This demo program presents the way for setting of the "Screen Capture" source's options for capturing screen view of the selected application's window.

Image 67

Selecting of the source application window is started by click on "Select by click" button - it initializes Windows OS API for getting HWND handler of window which is under mouse pointer - the name of window which is under of the mouse pointer is displayed under "Select by click" button:

Image 68

Catching of the HWND handler of the window is done by pressing of "L" keyboard button. It allows to get size of the catching window and select frame rate:

Image 69

After selection of the window, it is possible apply "Screen Capture" source's options for setting of the cursor back mask and clipping region of interest:

Image 70

Setting of HWND of the source screen view window is done by adding argument "--HWND" to "Screen Capture" symbolic link:

C#
lextendSymbolicLink += " --HWND=" + m_CurrentHWND.ToInt32().ToString();

This demo program can be downloaded from the following links:

UnityScreenRecorder

This demo program presents the way of working with ICaptureProcessor interface of CaptureManager SDK in Unity Game Development SDK on Windows OSs. CaptureManager SDK is included into the Unity Game Development SDK by plugin which allows capture game engine's rendered screen and record it into the output video file.

Image 71

This demo program supports two mode of working:

First mode - capture and render image for checking functionality of the correct working of the capture processor:

Image 72

Second mode - recording with the selection of encoder and output format file:

Image 73

This demo program can be obtained from the following links:

UnityVideoAndAudioRecorder

This demo program presents the way of viewing and recording video and audio from external sources in Unity Game Development SDK on Windows OSs.

Image 74

This demo program can be got from the following links:

WPFViewerTrigger

This demo program presents the way of using of the Switcher node. This code uses two output nodes for getting images from the source: EVR and Sample Grabber. Sample Grabber takes sample with 1 second timing and checks average brightness in sample - if this value is more or equal threshold, then Switcher node is set into turn on and EVR gets samples with 30 fps. If this value is less threshold, then Switcher node is set into turn off and EVR gets nothing. This schema has the next view:

Image 75

The result demo has the next view:

Image 76

This demo program can be downloaded from the below links:

WPFPauseResumeRecording

This demo program presents the way of using of the Switcher node. Switcher is set in recording stream and allows pause/resume this video stream while EVR preview stream still work in independent continue mode.

Image 77

Image 78

Image 79

This demo program can be downloaded from the below links:

WPFHotRecording

This demo program presents the way of using of the Switcher node for attaching and detaching of the recording stream to the source at runtime WITHOUT stopping of the source. ISwitcherControl interface has commands for flexible changing configuration of the Switcher node.

Image 80

Such solution can be useful for task of recording media files with the fixed size - while size of the current recording media file reaches the threshold value then the current file is detached and the new one is attached to the recording stream.

Image 81

In this demo program, the Switcher nodes (for video and audio streams) are created WITHOUT recording media file - it is possible. The new recording media file is attached by clicking on "Start recording" button. The old one (if it exists) is detached.

This demo program can be downloaded from the links below:

WPFAreaScreenRecorder

This demo program presents the way of using of the Screen Capture Source. Some time ago, I needed screen recorder application and tried to develop a simple application which can cover almost 99% functionality of the other similar applications, but use only CaptureManager SDK. It has a simple interface:

Image 82

It has clipping by "elastic band rectangle":

Image 83

It generates filename by current date:

Image 84

It has configuration for showing and hiding cursor icon and back image mask:

Image 85

It has configuration for video encoder with setting compression quality:

Image 86

It has configuration selection output file format and selection directory for storing the recorded video files:

Image 87

Current configurations can be saved and reset to the default values.

You can get this demo program from the following links:

InterProcessRenderer

These demo programs present the way of using of the DirectX9 texture shared handler for sharing of the rendering context between two processes. They include WPFInterProcessClient and InterProcessRenderer projects.

Direct3D9Ex allows create DirectX9 texture with the shared handler:

C#
private Direct3DSurface9 GetSharedSurface(Direct3DDevice9Ex device)
{
    return device.CreateRenderTarget(
           m_width,
           m_height,
           Format, // D3DFMT_A8R8G8B8
           0,
           0,
           0  // UNLOCKABLE
           );
}

Each Direct3DSurface9 has Handle property which can be used for the rendering target in another process.

Such solution allows to separate user interface process and capture-rendering process:

C#
mOffScreenCaptureProcess = new Process();

mOffScreenCaptureProcess.StartInfo.FileName = "InterProcessRenderer.exe";

mOffScreenCaptureProcess.EnableRaisingEvents = true;

mOffScreenCaptureProcess.Exited += mOffScreenCaptureProcess_Exited;

mPipeProcessor = new PipeProcessor(
    "Server",
    "Client");

mPipeProcessor.MessageDelegateEvent += lPipeProcessor_MessageDelegateEvent;

mOffScreenCaptureProcess.StartInfo.Arguments =
    "SymbolicLink=" + aSymbolicLink + " " +
    "StreamIndex=" + aStreamIndex + " " +
    "MediaTypeIndex=" + aMediaTypeIndex + " " +
    "WindowHandler=" + mVideoPanel.Handle.ToInt64();

mOffScreenCaptureProcess.StartInfo.UseShellExecute = false;

try
{
    mIsStarted = mOffScreenCaptureProcess.Start();

    HeartBeatTimer.Start();
}
catch (Exception)
{
    mIsStarted = false;
}

This demo programs can be got from the below links:

WPFDeviceInfoViewer

This demo program presents the way for grouping of the video and audio sources by unique device id. Each device in Windows OS has a unique device id for identifying each one. This demo program displays this id and groups devices according to this id.

Image 88

This solution can be useful for task with many video and audio USB sources from one vender - this code allows group video and audio sources according to belong of the real USB device.

You can get this demo program from this link:

WPFWebViewerEVRHandler

This demo program presents the way of using of the DirectX9 texture shared handler for rendering. The current generation of Windows OS has functionality for sharing of the rendering texture between different versions of DirectX.

You can get this demo program from the below links:

DShowPlayer

This demo program presents the way for using of CaptureManager SDK with DirectShow player as a Video Renderer in C++ project of Window application. This demo program uses DirectShow for playing video in C++ code, and CaptureManager's EVRMultiSink output node:

C++
HRESULT hr = S_OK;

IBaseFilter *pEVR = NULL;

//hr = AddFilterByCLSID(pGraph, CLSID_EnhancedVideoRenderer, &pEVR, L"EVR");

unsigned long lPtrOutputNodeAmount = 0;

CaptureManagerLoader::getInstance().getMaxVideoRenderStreamCount
                                    (&lPtrOutputNodeAmount);

std::vector<CComPtrCustom<IUnknown>> lOutputNodes;

CaptureManagerLoader::getInstance().createRendererOutputNodes(
    hwnd,
    nullptr,
    1,
    lOutputNodes);

if (!lOutputNodes.empty())
{
    lOutputNodes[0]->QueryInterface(IID_PPV_ARGS(&pEVR));
}

CHECK_HR(hr = pGraph->AddFilter(pEVR, L"EVR"));

You can get the demo program from the below link:

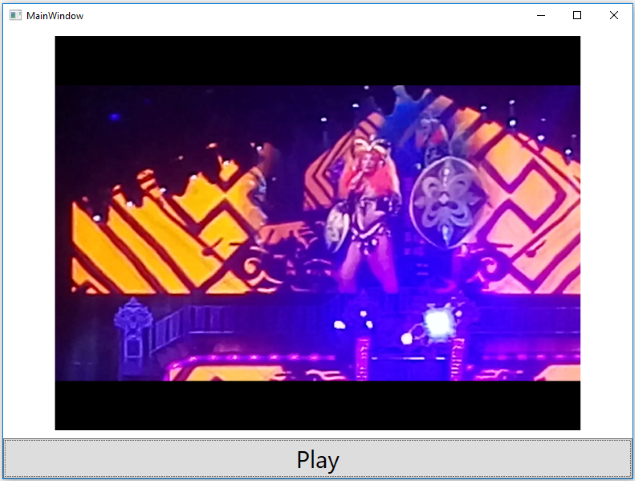

WPFDirectShowPlayer

This demo program presents the way for using of CaptureManager SDK with DirectShow player as a Video Renderer in WPF application. This demo program uses DirectShowLib C# NuGet for playing video in C# code, and CaptureManager's EVRMultiSink output node:

C#
List<object> lOutputNodesList = new List<object>();

lCaptureManagerEVRMultiSinkFactory.createOutputNodes(
    IntPtr.Zero,
    mEVRDisplay.Surface.texture,
    1,// lMaxVideoRenderStreamCount,
    out lOutputNodesList);

if (lOutputNodesList.Count == 0)
    return;

IBaseFilter lVideoMixingRenderer9 = (IBaseFilter)lOutputNodesList[0];

var h = m_pGraph.AddFilter(lVideoMixingRenderer9, "lVideoMixingRenderer9");

Version for DirectShow has only software implementation of renderer.

Image 89

This demo program can be got from the following links:

WPFRtspServer

This demo program presents the way for using of CaptureManager SDK in RTSP streaming service. This demo program is based on GitHub project SharpRTSP - C# version of a RTSP handling library for development of the RTSP communication server and client.

CaptureManager SDK has functionality for getting raw data from the video and audio sources - demo program WPFWebViewerCallback presents the way for getting of RGB32 images for displaying. However, this SDK allows get any raw data from the SDK pipeline - ever of the encoded video and audio data. This demo program defines output node for video stream:

C#
ISampleGrabberCallback lH264SampleGrabberCallback;

aISampleGrabberCallbackSinkFactory.createOutputNode(
    MFMediaType_Video,
    MFVideoFormat_H264,
    out lH264SampleGrabberCallback);

object lOutputNode = lEVROutputNode;

if (lH264SampleGrabberCallback != null)
{
    uint ltimestamp = 0;

    lH264SampleGrabberCallback.mUpdateEvent += delegate
        (byte[] aData, uint aLength)
    {
        if (s != null)
        {
            ThreadPool.QueueUserWorkItem((object state) =>
            {
                s.sendData(aIndexCount, ltimestamp, aData);

                ltimestamp += 33;
            });
        }
    };

and for audio stream:

C#
ISampleGrabberCallback lAACSampleGrabberCallback;

aISampleGrabberCallbackSinkFactory.createOutputNode(
    MFMediaType_Audio,
    MFAudioFormat_AAC,
    out lAACSampleGrabberCallback);

if (lAACSampleGrabberCallback != null)
{
    lAACSampleGrabberCallback.mUpdateFullEvent += delegate
        (uint aSampleFlags, long aSampleTime,
         long aSampleDuration, byte[] aData, uint aLength)
    {
        if (s != null)
        {
            ThreadPool.QueueUserWorkItem((object state) =>
            {
                s.sendData(aIndexCount,
                          (uint)aSampleTime / 100000, aData);
            });
        }
    };

Combination of this SDK with code of the SharpRTSP allows create workable version of the RTSP Video and Audio Streaming Server:

Image 90

For supporting of the wide spread decoder, CaptureManager allows encode video into the H264 and H265 (HEVC) video formats:

Image 91

You can get the demo programs from the following links:

WPFRTSPClient

This demo program presents the way for using of CaptureManager SDK in RTSP streaming service. This demo program is based on GitHub project SharpRTSP - C# version of a RTSP handling library for development of the RTSP communication server and client.

CaptureManager SDK has functionality for capturing raw data from an external source. This source can be encoded data - in this example, the source is a test server with H264 video encoded stream:

Image 92

You can get the demo programs from the following links:

WPFStreamer

This demo program presents the way for using of CaptureManager SDK in RTMP (Real-Time Messaging Protocol (RTMP) was initially a proprietary protocol developed by Macromedia for streaming audio, video and data over the Internet, between a Flash player and a server. Macromedia is now owned by Adobe, which has released an incomplete version of the specification of the protocol for public use) streaming services (Facebook (RTMPS), YouTube and others). This demo program is based on librtmp - C version of a RTMP handling library for development of the RTMP streaming client.

Image 93

You can get the demo programs from the following links:

WPFMixer

This demo program presents the way for using mixing functionality of CaptureManager SDK. New SDK interfaces:

  • IMixerNodeFactory
  • IVideoMixerControl
  • IAudioMixerControl

allow to combine many video streams into the one video stream and many audio streams into the one audio stream. Interface IMixerNodeFactory creates a list of topology input nodes with the one output node. Interface IVideoMixerControl allows control video mixing of each source:

  • setPosition - set position of the input video stream on the back reference video stream
  • setSrcPosition - set region in input video stream
  • setZOrder - set Z order of mixer
  • setOpacity - set opacity of input video stream
  • flush - clear video input stream buffer
C#
public interface IVideoMixerControl
{
    bool setPosition(object aPtrVideoMixerNode,
        /* [in] */ float aLeft,
        /* [in] */ float aRight,
        /* [in] */ float aTop,
        /* [in] */ float aBottom);

    bool setSrcPosition(object aPtrVideoMixerNode,
        /* [in] */ float aLeft,
        /* [in] */ float aRight,
        /* [in] */ float aTop,
        /* [in] */ float aBottom);

    bool setZOrder(object aPtrVideoMixerNode,
        /* [in] */ UInt32 aZOrder);

    bool setOpacity(object aPtrVideoMixerNode,
        /* [in] */ float aOpacity);

    bool flush(object aPtrVideoMixerNode);
}

Interface IAudioMixerControl allows control mixing audio stream with the reference back audio stream: setRelativeVolume - set volume of the audio stream to relative for reference back audio stream = (input audio stream * aRelativeVolume) + (reference back audio stream * (1.0 - aRelativeVolume)).

C#
public interface IAudioMixerControl
{
    bool setRelativeVolume(object aPtrAudioMixerNode, float aRelativeVolume);
}

Image 94

You can get the demo programs from the following links:

WPFGIFtoVideo

This demo program presents the way for recording animated gif images into the video file by CaptureManager SDK. For injection decoded GIF frames demo program uses implemented interface ICaptureProcessor.

Image 95

This demo program can be downloaded from the below links:

AudioCaptureProcessor

This demo program presents the way for recording output from system audio mixed into the audio file by CaptureManager SDK. Audio data is a type of data which needs low latency for correct recording - CaptureManager SDK has optimized media processing pipeline and can capture audio data with high quality.

You can get this demo program from the link below:

WPFStreamingAudioRenderer

This demo program presents the way for playing audio stream from webcamera into the system audio renderer by CaptureManager SDK.

Image 96

This demo program can be downloaded from the below links:

WPFVirtualCamera

This demo program presents the way for creating DirectShow filter of "Virtual Camera" - special software media component of Windows OS which is recognized by webcam applications (like Skype or Zoom) as a real webcamera device. Such solution allows to integrate C# code of video processing by CaptureManager SDK into the video processing pipeline of 3rd party webcam applications.

However, this demo program shows a more complex product - this demo is divided into two projects: C# DirectShow filter and WPF/C# Out-of-process COM Server. This magic is possible by using of Windows OS cross-process rendering technique of DirectX 11.

After compiling this demo, there are two base files in Bin folder:

  • WPFVirtualCameraServer.exe - Out-of-process COM Server
  • VirtualCameraDShowFilter.dll - In-process DirectShow filter

Image 97

For installing this demo into the target Windows OS, it needs to execute install.bat script file.

For uninstalling this demo from the Windows OS, it needs to execute uninstall.bat script file.

So, because DirectShow filter is part of Windows OS COM infrastructure, there is a need to generate and register TLB (type library) files - VirtualCameraDShowFilter.tlb, WPFVirtualCameraServer.tlb.

Image 98

This generation and registration are executed in script install.bat. After executing install.bat, this software emulation of video camera will be displayed as "Virtual Camera" in list of accessible web cameras:

Image 99

At the same moment, Windows OS launches background process WPFVirtualCameraServer for processing and rendering video:

Image 100

How does it work?! While webcam application recognizes VirtualCameraDShowFilter.dll as a real video source, this DLL calls Windows OS to create one instance of COM VirtualCameraServer by ProgID="WPFVirtualCameraServer.VirtualCameraServer". Because COM VirtualCameraServer is registered as a LocalServer32, the target Windows OS will create process WPFVirtualCameraServer with automatic cross-process marshaling data between WPFVirtualCameraServer process and process of webcam application.

Image 101

VirtualCameraDShowFilter.dll will communicate with WPFVirtualCameraServer process via IVirtualCameraServer interface which has only one method - get_DirectX11TextureHandler:

C#
[ComVisible(false)]
[Guid("EEE2F595-722F-4279-B919-313189A72C36")]
[InterfaceType(ComInterfaceType.InterfaceIsDual)]
public interface IVirtualCameraServer
{
    IntPtr get_DirectX11TextureHandler(out int retVal);
}

Method get_DirectX11TextureHandler returns DirectX11 Texture Shared Handler which allows to share DirectX 11 Texture between processes (you can get more information at ID3D11Device::OpenSharedResource).

WPFVirtualCameraServer process activity is presented in taskbar as icon Image 102 . Double click Left Button of mouse pointer on this icon shows WPF UI for controlling cross-process rendering - position and size of rendering:

Image 103

One click Right Button of mouse pointer on icon of WPFVirtualCameraServer process shows context menu of choosing video sources - default video source is Screen Capture.

Image 104

This solution allows to duplicate one real video source to many webcam applications:

Image 105

Schema of process interacting timeline shows lifecycle of WPFVirtualCameraServer process relating to 3rd party webcam applications:

Image 106

This demo program can be obtained from here Image 107.

WPFWebViewerEVRLog4net

This demo program presents the way for log4net framework into the project with CaptureManager SDK. For implementing such functionality, the new interface ILogPrintOutCallback has been added.

MIDL
[
    object,
    uuid(251E71F6-8C02-475F-B300-216D560426B2),
    oleautomation,
    helpstring("Interface for processing callback of log.")
]
interface ILogPrintOutCallback : IUnknown
{
    [
        helpstring("Method for callback invoking.")
    ]
    HRESULT invoke(
        [in] DWORD aLevelType,
        [in] BSTR aPtrLogString);
};

In project, this new interface in implemented in the following way:

C#
LogManager.getInstance().WriteLogDelegateEvent += (aLogLevel, aPtrLogString)=>
{
    switch (aLogLevel)
    {
        case CaptureManagerToCSharpProxy.WrapClasses.LogLevel.INFO_LEVEL:
            log.Info(aPtrLogString);
            break;
        case CaptureManagerToCSharpProxy.WrapClasses.LogLevel.ERROR_LEVEL:
            log.Error(aPtrLogString);
            break;
        default:
            break;
    }
};

You can get this demo program from the following links:

CaptureManager SDK Versions

Version 1.0.0

Capture Manager SDK v1.0.0 – open release. I include interfaces with the stable definition:

via class CoLogPrintOut – interface ILogPrintOut

via class CoCaptureManager – interface ICaptureManagerControl:

method createControl – creates the main control objects with interfaces:

  • ISourceControl,
  • ISinkColtrol,
  • IEncoderControl,
  • ISessionControl,
  • IStreamControl;

method createMisc – creates a miscellaneous object with interfaces:

  • IMediaTypeParser
  • IStrideForBitmap
  • IVersionControl

via object with interface ISourceControl:

  • IWebCamControl

via object with interface ISinkControl:

  • IFileSinkFactory
  • ISampleGrabberCallSinkFactory
  • IEVRSinkFactory
  • ISampleGrabberCallbackSinkFactory
  • IByteStreamSinkFactory

via object with interface ISession:

  • ISessionCallback

via object with interface ISampleGrabberCallSinkFactory:

  • ISampleGrabberCall

via object with interface ISampleGrabberCallbackSinkFactory:

  • ISampleGrabberCallback

These interfaces do the below work:

  • ILogPrintOut – it manages writing of log information
  • ICaptureManagerControl – it manages creating of all capturing controls and miscellaneous objects
  • ISourceControl – it manages and creates sources of video and audio signals
  • ISinkColtrol – it manages and creates sinks of video and audio streams
  • IEncoderControl – it manages and creates video and audio encoders
  • ISessionControl – it creates object for management of recording session
  • IStreamControl – it creates object for controlling of media streams
  • IMediaTypeParser – it creates text representation of media type in XML format
  • IStrideForBitmap – it computes stride of memory for the specific bitmap format
  • IVersionControl – it manages information about current version of CaptureManager
  • IWebCamControl – it manages options of web camera
  • IFileSinkFactory – it creates media sink nodes which are linked with media file
  • ISampleGrabberCallSinkFactory – it creates media sink for grabbing of one sample by direct calling object with interface ISessionCallback
  • ISampleGrabberCall – it manages grabbing of one sample
  • ISampleGrabberCallbackSinkFactory – it creates media sink for grabbing of one sample by calling object with interface ISampleGrabberCallback from CaptureManager inner thread
  • ISampleGrabberCallback – it manages grabbing of one sample from CaptureManager inner thread
  • IEVRSinkFactory – it creates media sink for rendering of video stream
  • IByteStreamSinkFactory – it creates media sink nodes which are linked with customised byte stream object with interface IMFByteStream
  • ISession – it manages the recording session
  • ISessionCallback – it manages the result state of current recording session from CaptureManager inner thread

The definitions of these interfaces are presented in SDK files and in CaptureManagerToCSharpProxy project. For effective marshalling information via border of unmanaged-managed code, CaptureManager uses eight simple XML documents with the below structures:

XML
<!--?xml version="1.0" ?-->
<!--XML Document of sources-->

These documents contain information about sources, encoders, sinks, stream controls. Most types and GUID are taken from Microsoft Media Foundation MSDN: Microsoft Media Foundation, but there are some rules for definition of nodes in these XML documents:

  • SingleValue - node for presenting only one value - name, integer, type
  • RatioValue - node for presenting of value in float point format with Numerator and Denominator
  • Value.ValueParts - node for storing collection of ValuePart nodes with the same type. Examples of parsing of these XML documents can be found in code of WPF examples.

Version 1.1.0 with HEVC(H265) encoder

CaptureManager SDK v1.1.0 – open release. This release includes the following changes:

  • Add supporting of automating registration CaptureManager as COM server with Type Library
  • Add supporting of dynamic language Python 2.7
  • Add supporting of HEVC(H265) encoder in Windows 10: Download HEVCEncoder_Windows10

Version 1.2.0 Beta

CaptureManager SDK v1.2.0 – beta release. This release includes the following changes:

  • Deleted old functionality of working with CaptureManager via library linking. Old demo programs are moved in old demos.
  • Lazy binding of Microsoft Media Foundation functions.
  • Replaced web camera properties functionality from DirectShow on DeviceIoControl.
  • Added resizing in EVR.

Lazy binding of functions is implemented by loading of Microsoft Media Foundation libraries at runtime. Functions which cannot be found in Microsoft Media Foundation libraries are replaced by stub functions. It allows prevent crushing of applications by using of unsupported functions of Microsoft Media Foundation libraries.

Using of DeviceIoControl for changing of web camera properties allows to resolve a problem with delay of web camera driver initialization. It allows to expand a workable set of web camera properties by: "Amount of digital zoom", "Upper limit for the amount of digital zoom", "Power line frequency".

Resizing in EVR resolves problem with unchanging image size of rendered video. The new implementation controls current image size of renderer GUI and changes image size and position for keeping proportion of video.

Version 1.2.0

CaptureManager SDK v1.2.0 – release. This release includes the following changes:

  • Deleted old functionality of working with CaptureManager via library linking. Old demo programs are moved in old demos.
  • Lazy binding of Microsoft Media Foundation functions.
  • Replaced web camera properties functionality from DirectShow on DeviceIoControl.
  • Added resizing in EVR.
  • Added PULL mode in SampleGrabberCallSinkFactory - the new mode which allows to take a single sample.
  • Added sample accumulator nodes for storing of 5 or 10 last samples in media stream.

Lazy binding of functions is implemented by loading of Microsoft Media Foundation libraries at runtime. Functions which cannot be found in Microsoft Media Foundation libraries are replaced by stub functions. It allows prevent crushing of applications by using of unsupported functions of Microsoft Media Foundation libraries.

Using of DeviceIoControl for changing of web camera properties allows resolve problem with delay of web camera driver initialization. It allows expand workable set of web camera properties by "Amount of digital zoom", "Upper limit for the amount of digital zoom", "Power line frequency".

Resizing in EVR resolves problem with unchanging image size of rendered video. The new implementation controls current image size of renderer GUI and changes image size and position for keeping proportion of video.

Version 1.3.0 Beta with DirectShow Crossbar capture

CaptureManager SDK v1.3.0 – beta. This release includes the following changes:

  • Add supporting of video capturing via DirectShow Crossbar technique for the next inputs:
    • Composite
    • SVideo
    • USB
    • 1394 (FireWire)

On MSDN - Audio/Video Capture in Media Foundation, you can find that "Video capture devices are supported through the UVC class driver and must be compatible with UVC 1.1". It means that Microsoft Media Foundation can capture video only from devices with supporting of UVC driver - USB Video Class driver. It is usually USB web cameras - other types of video capture devices are not supported. From my experience, I can say that the target platform of Microsoft Media Foundation is WindowsStore applications. WindowsStore applications are originally targeted on portable devices like "Pad" - "Surface" - such devices DO NOT have external ports for connecting of capturing cards. They can work only with embedded web cameras which are connected via inner USB ports. I think that it is a correct idea, but I have got many questions about using of CaptureManager with capture cards which support DirectShow Crossbar and answered that it is impossible. However, it is not the full answer - the full answer is that it is possible to see capture card which supports DirectShow Crossbar via Microsoft Media Foundation functionality, but captured video is not accessible. After some research, I found the way to get access for such capture cards. Info for working with capture card can be selected from XML string of sources via checking of attributes nodes of Source with name 'MF_DEVSOURCE_ATTRIBUTE_SOURCE_TYPE_VIDCAP_CATEGORY': "Source.Attributes/Attribute[@Name='MF_DEVSOURCE_ATTRIBUTE_SOURCE_TYPE_VIDCAP_CATEGORY']

/SingleValue[@Value='CLSID_VideoInputDeviceCategory']" - Microsoft Media Foundation defines CLSID_WebcamInterfaceDeviceCategory - {E5323777-F976-4F5B-9B55-B94699C46E44} for device with UVC supporting and CLSID_VideoInputDeviceCategory - {860BB310-5D01-11D0-BD3B-00A0C911CE86} for DirectShow capture devices. It allows easy select only DirectShow video capture devices. Input connection of DirectShow according to physical type can be selected by choosing of the suitable media type - each media type node has child MediaTypeItem node with name DirectShowPhysicalType - {09FCAE6B-8F00-4C0A-BBCA-C6820B576C99}. It allows to group the meda types according physical type of input connection.

XML
<MediaTypeItem Name="DirectShowPhysicalType"
 GUID="{09FCAE6B-8F00-4C0A-BBCA-C6820B576C99}"
 Title="Physical type of input pin of Crossbar."
 Description="Physical type of input pin of Crossbar.">
  <SingleValue Value="PhysConn_Video_Composite" />
  </MediaTypeItem>

Version 1.3.0 with DirectShow Crossbar Capture

CaptureManager SDK v1.3.0. This release includes the following changes:

  • Add supporting of video capturing via DirectShow Crossbar technique for the below inputs:
    • Composite
    • SVideo
    • USB
    • 1394 (FireWire)
  • COM ThreadingModel has been changed from Apartment on Both.

Version 1.4.0 Beta

CaptureManager SDK v1.4.0 – beta. This release includes the following changes:

  • Add supporting for changing of cursor presenting in Screen Capture source: make cursor invisible and add drawing additional image for current cursor's image:

Image 108

This functionality is got by adding " --options=" into the symbolic link. Options is set by XML format:

XML
<!--?xml version='1.0' encoding='UTF-8'?-->
<Options>
    <Option Type="Cursor" Visiblity="True">
        <Option.Extensions>
            <Extension Fill="0x7055ff55" Height="100" Type="BackImage" Width="100"/>
        </Option.Extensions>
    </Option>
</Options>

Selection of cursor option is done by "Type='Cursor'" attribute. Attribute "Visiblity='True'" makes current type - Cursor visible, and attribute "Visiblity='False'" sets current type - Cursor invisible - it allows capture screen without drawing of cursor. XML node "Option.Extensions" allows add extensions. At the present time, Screen capture source supports the next extexnsion:

"<Extension Type='BackImage' Height='100' Width='100' Fill='0x7055ff55' />"

Attribute "Type='BackImage'" defines drawing before cursor's image 'marker' image:

Image 109

Size of 'BackImage' is defined by attributes "Height='100' Width='100'", color is defined by attribute "Fill='0x7055ff55'" with ARGB format. In code, it can be implemented in this way:

C#
string lextendSymbolicLink = lSymbolicLink + " --options=" +
    "<?xml version='1.0' encoding='UTF-8'?>" +
        "<Options>" +
            "<Option Type='Cursor' Visiblity='True'>" +
                "<Option.Extensions>" +
                    "<Extension Fill='0x7055ff55' Height='100'
                      Type='BackImage' Width='100'>" +
                    "</Extension> +
                    </Option.Extensions>" +
            "</Option>" +
        "</Options>";

Version 1.4.0

CaptureManager SDK v1.4.0. This release includes the following changes:

  • Added supporting for changing of cursor presenting in Screen Capture source: made cursor invisible and added drawing additional image for current cursor's image.
  • Added supporting for using of custom Microsoft Media Foundation Transform for implementation custom effects (for example - WaterMarkInjectorDemo, TextInjectorDemo).

Version 1.5.0

CaptureManager SDK v1.5.0. This release includes the following changes:

  • Add supporting of multidisplay outputs on:

    Image 110

  • Add supporting of DirectShow software filters.

Version 1.6.0

Capture Manager SDK v1.6.0. This release includes the below changes:

  • Add IEVRMultiSinkFactory, IEVRStreamControl interfaces: IEVRMultiSinkFactory allows create two separated Topology Nodes for the one rendering context - HWND of Window, Direct3DSurface9 or IDXGISwapChain. IEVRStreamControl allows control of rendering result - position rendering, Z-order rendering, flushing of stream buffer, filters and features.
  • IInitilaizeCaptureSource, ICurrentMediaType, ISourceRequestResult, ICaptureProcessor interfaces: IInitilaizeCaptureSource receives configuration of Capture Processsor. ICurrentMediaType contains info of the selected Media Type. ISourceRequestResult receives raw data in format which is defined in IInitialazeCaptureSource. ICaptureProcessor controls the capturing process.

CaptureManager has implementation of multisink rendering via sharing context. This solution is different from common implementation of Microsoft Media Foundation. Original solution uses 'Session' pattern - working with sources, decoders, encoders and sinks in the one session. As a result, it leads to synchronization of many stream pipelines from the one session and they can be controlled by one command `Start`, `Stop`, `Pause`. It works fine in case of playing of one video file. Microsoft Media Foundation has function for creating one source from many others - MFCreateAggregateSource - it allows to implement effect `Picture in Picture` for rendering two and more video files. However, it has limitations - it is workable only in context of the one session - it means that all sources of the session started, stopped and paused at the same time.

Image 111

It can be OK for playing of video from files, but what to do in the situation of sources with different latency - for two sources - one from local webcam and another from IP camera by HTTP. Another problem - if we want to stop only one source, the code stops ALL sources in the session. The solution of these problems can be using of DIFFERENT INDEPENDENT sessions for each source, but common implementation of Microsoft Media Foundation DOES NOT allow to share video rendering sink via many sessions. CaptureManager resolves such problems by adding one level abstraction - while common implementation of Microsoft Media Foundation creates ONE Video Rendering Media Sink from the one video context, CaptureManager creates Many Video Rendering Media Sinks from Controller which shares the one video context.

Image 112

Additional level allows manage rendering more flexible. Demo program for testing of such functionality can be found from WPFMultiSourceViewer. CaptureManager Freeware supports maximum 2 rendering sinks from the one rendering context. MultiRendering presented in `Sink Factories` by new `Sink Factory` node:

XML
<sinkfactory guid="{10E52132-A73F-4A9E-A91B-FE18C91D6837}"
 name="EVRMultiSinkFactory" title="Enhanced Video Renderer multi sink factory">
  <value.valueparts>
   <valuepart description="Default EVR implementation"
    guid="{E926E7A7-7DD0-4B15-88D7-413704AF865F}"
    maxportcount="2" mime="" title="Container format" value="Default">
  </valuepart>
  </value.valueparts>
</sinkfactory>

Rendering can be controlled by IEVRStreamControl interface:

  • setPosition method allows positioning of rendering on the shared rendering context in relative values from 0.0f to 1.0f.
  • getPosition method allows get positioning of rendering on the shared rendering context in relative values from 0.0f to 1.0f.
  • setZOrder method allows set rendering order of stream from 0 to max rendering sinks.
  • getZOrder method allows get rendering order of stream from 0 to max rendering sinks.
  • flush method allows clear rendering buffer of the rendering sink.
  • setSrcPosition method allows set rectangle in the input stream for selection of Region Of Interest.
  • getSrcPosition method allows get rectangle in the input stream for selection of Region Of Interest.
  • getCollectionOfFilters method allows get XML string with list of filters for current rendering sink.
    XML
    <!--?xml version="1.0" ?-->
    <!-- XML Document of render stream filters -->
      <filters>
        <filter currentvalue="" max="" min="" step="" title="">
      </filter></filters>
  • setFilterParametr method allows set filter for current rendering sink.
  • getCollectionOfOutputFeatures method allows get XML string with list of output features for rendering context:
    XML
    <!--?xml version="1.0" ?-->
    <!-- XML Document of render stream output features -->
    <features>
    <feature title="Background Color">
    <color>
    <channel currentvalue="0" index="1" max="255" min="0" step="1" title="Red">
    <channel currentvalue="0" index="2" max="255" min="0" step="1" title="Green">
    <channel currentvalue="0" index="3" max="255" min="0" step="1" title="Blue">
    </channel></channel></channel></color>
    </feature>
    </features>

  • setOutputFeatureParametr method allows set output feature for rendering context;

    CaptureManager has functionality for capturing data from custom Capture Processor. It includes ICaptureProcessor interface for implementing custom CaptureProcessor class. The needed configuration is set in argument of initialize method with IInitilaizeCaptureSource interface. The selected configuration is set in argument of setCurrentMediaType method with ICurrentMediaType interface. The needed data is requested in sourceRequest method by argument with ISourceRequestResult interface. It allows to develop solutions for capturing of raw data WPFImageViewer or WPFIPCameraMJPEGViewer.

Version 1.7.0

CaptureManager SDK v1.7.0. This release includes the following change:

  • Added CaptureManager Video Renderer Factory which is compatible with MediaFoundation player. It supports IEVRMultiSinkFactory, IEVRStreamControl interfaces via additional sink factory:
XML
<SinkFactory Name="CaptureManagerVRMultiSinkFactory"
 GUID="{A2224D8D-C3C1-4593-8AC9-C0FCF318FF05}"
 Title="CaptureManager Video Renderer multi sink factory">
<Value.ValueParts>
<ValuePart Title="Container format" Value="Default"
 MIME="" Description="Default EVR implementation"
 MaxPortCount="2" GUID="{E926E7A7-7DD0-4B15-88D7-413704AF865F}" />
 </Value.ValueParts>
</SinkFactory>

Add the new demo programs listed below:

CaptureManager Video Renderer Factory can be used for implementing of video sink for rendering video from media file in many solutions.

Version 1.8.0

CaptureManager SDK v1.8.0. This release includes the following changes:

  • Added "normalize" mode for the "Screen Capture" source
  • Added IRenderingControl interface for controlling of rendering on target process
  • Added "Shape" attribute for "Cursor" option of "Screen Capture" source
  • Added "Clip" type option of "Screen Capture" source

Add the new demo programs listed below:

The "Screen Capture" source supports capture of screen as-is - it means that the rotated image is got as it is created by computer - rotated. However, in some situations, it may need to get image in some specific orientation of image, for example, get "Portrait" orientated screen in "Landscape" form. For this purpose, the "Screen Capture" source supports mode "normalize" for post processing of the current image to the needed orientation: " --normalize=Landscape".

The "Screen Capture" source supports additional shape of the back image - "Ellipse", and the new option "Clip":

Image 113

The new IRenderingControl interface is created from ICaptureManagerControl::createMisc method and expands controlling of the rendering process. IRenderingControl interface has the following signature:

C++
MIDL_INTERFACE("1CBCAF1C-1809-41DE-A728-23DBF86A6170")
IRenderingControl : public IDispatch
{
public:
    virtual /* [id][helpstring] */ HRESULT STDMETHODCALLTYPE enableInnerRendering(
        /* [in] */ IUnknown *aPtrEVROutputNode,
        /* [in] */ BOOL aIsInnerRendering) = 0;

    virtual /* [id][helpstring] */ HRESULT STDMETHODCALLTYPE renderToTarget(
        /* [in] */ IUnknown *aPtrEVROutputNode,
        /* [in] */ IUnknown *aPtrRenderTarget,
        /* [in] */ BOOL aCopyMode) = 0;

};

Method enableInnerRendering allows switch rendering model in the CaptureManager. Method renderToTarget allows execute rendering to the target texture from user rendering thread.

The reason to include a new interface for controlling of rendering is cased by thread-safe of DirectX. In the previous versions of CaptureManager rendering executed in the context of the inner thread of CaptureManager. In most situations, such a way for rendering does not lead to problems - in the demo programs the DirectX9 device is created with support of multithreading and DirectX11device is thread-safe by default. However, I was faced with the problem of rendering while have started modify UnityWebCamViewer demo project for including of DirectX11 rendering. After some search in code, I found that ID3D11Device::CreateDeferredContext return error DXGI_ERROR_INVALID_CALL - according to this link - "if the device was created with the D3D11_CREATE_DEVICE_SINGLETHREADED value, CreateDeferredContext returns DXGI_ERROR_INVALID_CALL." It means that Unity engine does not support updating texture from none rendering thread. IRenderingControl interface allows switch from multithreading rendering to single thread rendering mode. By default, CaptureManager has multithreading rendering which can be switched to single thread rendering by method enableInnerRendering with FALSE state of aIsInnerRendering. Method renderToTarget allows render to target in context of the single rendering thead - for target can be used rendering texture with interface IDirect3DTexture9 for DirectX9 or with interface ID3D11Texture2D for DirectX11. Argument aCopyMode must be set to FALSE for DirectX9. For DirectX11, argument aCopyMode can be TRUE or FALSE - it depends from type of rendering texture. DirectX11 allows create TYPELESS texture formats for flexibility converting of types. However, DirectX11 Video processor supports only UNORM types of rendering texture. Unity engine creates rendering texture with TYPELESS texture formats - it leads creating of errors. Argument aCopyMode with TRUE allows create additional texture with UNORM type and use this texture for target of rendering and copy from this texture to the original rendering texture with TYPELESS texture format. This operation is executed in the context of GPU very fast.

There is a CaptureManager help file which you can download from here.

Image 114

Version 1.9.0

CaptureManager SDK v1.9.0. This release includes the following changes:

  • Add "HWND" mode for the "Screen Capture" source.

Add the new demo programs:

Version 1.10.0

CaptureManager SDK v1.10.0. This release includes the following changes:

  • Added ISwitcherNodeFactory interface for pause/resume of the media stream
  • Added ISwitcherControl interface for controlling (pause, resume, detach, attach) media streams

Add the new demo programs:

Version 1.11.0

CaptureManager SDK v1.11.0. This release includes the following changes:

  • Added DirectX11 Texture Capture
  • Changed Screen Capture output format from RGB32 to NV12

Version 1.12.0

CaptureManager SDK v1.12.0. This release includes the following changes:

  • Added CM_DEVICE_LINK attribute with unique device id
  • Supports DirectX9Ex texture shared handler

Add the new demo programs listed below:

Version 1.13.0

CaptureManager SDK v1.13.0. This release includes the following changes:

  • Added supporting of DirectShow Video Renderer

Added the new demo programs listed below:

Version 1.14.0

CaptureManager SDK v1.14.0. This release includes the following changes:

  • Added H.264/MPEG-4 AVC video stream encoder (from 256 kbit/c to 64 kbit/c)
  • Added H.265/MPEG-4 HEVC video stream encoder (64 kbit/c)
  • Added AAC audio stream encoder (96 kbit/c)
  • Added video stream decoder

Add the following new demo programs:

Version 1.15.0

CaptureManager SDK v1.15.0. This release includes the following changes:

  • Add fast SSE2/SSSE3/SSE4.2 copy

Version 1.16.0

CaptureManager SDK v1.16.0. This release includes the following changes:

  • Added interfaces for mixing video and audio streams:
    • IMixerNodeFactory
    • IVideoMixerControl
    • IAudioMixerControl

Added the new demo programs listed:

Version 1.17.0

CaptureManager SDK v1.17.0. This release includes the following changes:

  • Expanded H264 and H265 video encoder bitrate upto 2^25 (33,554,432)

Version 1.18.0

Capture Manager SDK v1.18.0. This release includes the following changes:

  • Added Audio Renderer

Add the new demo program:

Version 1.19.0

Capture Manager SDK v1.19.0. This release includes the following changes:

  • Added supporting of H264 webcam

Version 1.19.1

CaptureManager SDK v1.19.1. This release includes the below changes:

  • Fixed bug with pull mode
  • Fixed bug with open camera already in use

Version 1.20.0

CaptureManager SDK v1.20.0. This release includes the following change:

  • Added async/await invoking model

Version 1.21.0

CaptureManager SDK v1.21.0. This release includes the following change:

  • Replace DirectX9 rendering on DirectX11 rendering.

Added the new demo program:

Version 1.22.0

CaptureManager SDK v1.22.0. This release includes the following changes:

  • Add the new interface ILogPrintOutCallback.

Add the new demo program:

Points of Interest

Previously, I wrote that there was one unusual task which was the reason to start development of CaptureManager. The task included recording live-video of industrial process from two sources and recording of data from two sensors. I have started to write a new solution for Microsoft Media Foundation and thought of using Microsoft ASF format due to the existence of MFMediaType_Binary Major Type. However, after some time, I found that implementation of Microsoft ASF format for Microsoft Media Foundation for recording supports only MFMediaType_Video, MFMediaType_Audio, and MFMediaType_Script. It was the main reason for stopping to resolve that task.

Updates

First update on 21/08/2015

  • improved quality of the AudioLoopback capture;
  • resolved problem with synchronization of the Screen Capture Source - GDIScreenCapture and AudioLoopback;
  • added new Media Types for Screen Capture Source - GDIScreenCapture with the next frame rates: 20 fps, 25 fps and 30 fps;
  • added into Screen Capture Source - GDIScreenCapture supporting for capturing of cursor and drawing it into the captured video.

Second update on 31/08/2015

  • fixed losing of samples in the AudioLoopback capture;
  • added new Media Types for Screen Capture Source - GDIScreenCapture with the next frame rates: 1 fps, 5 fps and 10 fps;
  • added supporting of WM Speech Encoder DMO;
  • added supporting of WMVideo9 Screen Encoder MFT - FOURCC "MSS2";
  • added version of CaptureManager SDK for x64 Windows OS.

Third update on 14/09/2015

  • added new Screen Capture Source - DirectX9ScreenCapture with the next frame rates: 1 fps, 5 fps, 10 fps, 15fps, 20 fps, 25 fps, 30 fps;
  • added library CaptureManagerProxy.dll for calling CaptureManagerSDK descriptors in "C" style;
  • added supporting of 3rdParty MediaSink solutions - RecordInto3rdPartyMediaSink;
  • added demo program for capturing of screen in DirectX9 video games - ScreenCaptureWithDirect3D9APIHooks;

Fourth update on 30/09/2015

Fifth update on 13/11/2015

Sixth update on 07/03/2016

  • first stable release 1.0.0;
  • implemented supporting of all SDK functionality in COM Server;
  • wrote new COM Server interface;
  • stopped development of C interface;
  • replaced GDIScreenCapture and DirectX9ScreenCapture on the Screen Capture;
  • included full support of play, pause, stop and close functionality;
  • updated code of demo programs for presenting of working with CaptureManagerSDK via COM on C#-WPF:
  • added new demo program for demonstration of functionality of recording and network streaming media content:

Seventh update on 21/03/2016

  • added demo program for working with CaptureManager SDK in Qt framework programs on MinGW compiler: QtMinGWDemo

Eighth update on 12/04/2016

  • added demo program for working with CaptureManager SDK in Windows Store application.

Ninth update on 13/06/2016

Stable release 1.1.0:

  • added supporting of automating registration CaptureManager as COM server with Type Library;
  • added supporting of dynamic language Python 2.7;
  • added supporting of HEVC(H265) encoder in Windows 10: Download HEVCEncoder_Windows10;

Tenth update on 01/08/2016

Beta release 1.2.0:

  • deleted old functionality of working with CaptureManager via library linking. Old demo programs are moved in old demos.
  • did lazy binding of Microsoft Media Foundation functions;
  • replaced web camera properties functionality from DirectShow on DeviceIoControl;
  • added resizing in EVR.

Eleventh update on 05/09/2016:

Release 1.2.0:

  • deleted old functionality of working with CaptureManager via library linking. Old demo programs are moved in old demos.
  • did lazy binding of Microsoft Media Foundation functions;
  • replaced web camera properties functionality from DirectShow on DeviceIoControl;
  • added resizing in EVR.
  • added PULL mode in SampleGrabberCallSinkFactory - the new mode which allows to take a single sample;
  • added sample accumulator nodes for storing of 5 or 10 last samples in media stream;
  • added four new demo programs:

Twelfth update on 03/10/2016

Beta release 1.3.0:

  • added supporting of video capturing via DirectShow Crossbar technique for the next inputs:
    • Composite
    • SVideo
    • USB
    • 1394 (FireWire)

Thirteenth update on 19/12/2016

Added two new demo programs for Java programing language:

Fourteenth update on 02/01/2017

  • added NuGet CaptureManager SDK package - package for NET 4.0 projects. It is based on CaptureManagerToCSharpProxy, but there is a one difference - package includes CaptureManager.dll as embedded resource. It allows unpack CaptureManager.dll into the Temp folder at Runtime and upload it into the application process. It is simpler than register CaptureManager.dll as COM server module in system - it does not need admin privileges. This package supports both CaptureManager.dll for x86 and x64 arch CPU and select the suitable at Runtime.

Fifteenth update on 09/01/2017

Release 1.3.0. This release includes the below changes:

  • added supporting of video capturing via DirectShow Crossbar technique for the next inputs:
    • Composite
    • SVideo
    • USB
    • 1394 (FireWire)
  • COM ThreadingModel has been changed from Apartment on Both.

Sixteenth update on 16/01/2017

Added the new demo program for on WindowsFroms GDI with supporting of source type selecting:

Beta release 1.4.0 - Version 1.4.0 Beta:

  • Added supporting for changing of cursor presenting in Screen Capture source: made cursor invisible and added drawing additional image for current cursor's image.

The seventeenth update on 06/02/2017:

Added the new demo programs:

Release 1.4.0 - Version 1.4.0. This release includes the following changes:

  • added support for changing of cursor presenting in Screen Capture source: made cursor invisible and added drawing additional image for current cursor's image.
  • added supporting for using of custom Microsoft Media Foundation Transform for implementation custom effects.

Download CaptureManager SDK v1.4.0

Eighteenth update on 13/03/2017

Release 1.5.0 - Version 1.5.0. This release includes the below changes:

  • added supporting of multidisplay outputs;
  • added supporting of DirectShow software filters.

Nineteenth update on 01/05/2017

Added the new demo programs:

Release 1.6.0 - Version 1.6.0. This release includes the following changes:

  • Added IEVRMultiSinkFactory, IEVRStreamControl interfaces: IEVRMultiSinkFactory allows create two separated Topology Nodes for the one rendering context - HWND of Window, Direct3DSurface9 or IDXGISwapChain. IEVRStreamControl allows control of rendering - position rendering, Z-order rendering, flushing of stream buffer, filters and features.
  • IInitilaizeCaptureSource, ICurrentMediaType, ISourceRequestResult, ICaptureProcessor interfaces: IInitilaizeCaptureSource receives configuration of Capture Processsor. ICurrentMediaType contains info of the selected Media Type. ISourceRequestResult receives raw data in format which is defined in IInitilaizeCaptureSource. ICaptureProcessor controls the capturing process.

Twentieth update on 10/07/2017

Added the new demo programs listed below:

Release 1.7.0 - Version 1.7.0. This release includes the following changes:

  • Added CaptureManager Video Renderer Factory which is compatible with MediaFoundation player.

Download CaptureManager SDK v1.7.0

Twenty-first update on 31/07/2017

Added the new demo programs:

Twenty-second update on 21/08/2017

Added the new demo programs:

Twenty-third update on 23/10/2017

Released 1.8.0 - Version 1.8.0. This release includes the below changes:

  • added "normalize" mode for the "Screen Capture" source;
  • added IRenderingControl interface for controlling of rendering on target process;
  • added "Shape" attribute for "Cursor" option of "Screen Capture" source;
  • added "Clip" type option of "Screen Capture" source.

Added the new demo programs:

Twenty-fourth update on 15/01/2018

Release 1.9.0 - Version 1.9.0. This release includes the following changes:

  • added "HWND" mode for the "Screen Capture" source

Added the new demo programs:

Twenty-fifth update on 05/03/2018

Added the new demo programs:

Twenty-sixth update on 09/04/2018

Release 1.10.0 - Version 1.10.0. This release includes the below changes:

  • added ISwitcherNodeFactory interface for pause/resume of the media stream;
  • added ISwitcherControl interface for controlling (pause, resume, detach, attach) media streams.

Added the new demo programs:

Twenty-seventh update on 13/08/2018

Release 1.11.0 - Version 1.11.0. This release includes the below changes:

  • added DirectX11 Texture Capture
  • changed Screen Capture output format from RGB32 to NV12

Twenty-eighth update on 01/10/2018

Release 1.12.0 - Version 1.12.0. This release includes the below changes:

  • added CM_DEVICE_LINK attribute with unique device id;
  • supported DirectX9Ex texture shared handler.

Added the new demo programs:

The twenty-ninth update on 19/11/2018:

Release 1.13.0 - Version 1.13.0. This release includes the following changes:

  • added supporting of DirectShow Video Renderer.

Add the new demo programs:

The thirtieth update on 11/02/2019:

Release 1.14.0 - Version 1.14.0. This release includes the following changes:

  • added H.264/MPEG-4 AVC video stream encoder (from 256 kbit/c to 64 kbit/c)
  • added H.265/MPEG-4 HEVC video stream encoder (64 kbit/c)
  • added AAC audio stream encoder (96 kbit/c)
  • added video stream decoder

Added the new demo programs:

The thirty-first update on 15/04/2019:

Release 1.15.0 - Version 1.15.0. This release includes the following changes:

  • added fast SSE2/SSSE3/SSE4.2 copy.

The thirty-second update on 06/07/2020:

Release 1.16.0 - Version 1.16.0. This release includes the following changes:

  • added interfaces for mixering video and audio streams:
    • IMixerNodeFactory
    • IVideoMixerControl
    • IAudioMixerControl

Added the new demo programs:

The thirty-third update on 20/07/2020:

  • published source code of CaptureManager SDK under open source license. The source code can be downloaded from this link.

The thirty-fourth update on 16/11/2020:

Release 1.17.0 - Version 1.17.0. This release includes the following change:

  • expanded H264 and H265 video encoder bitrate upto 2^25 (33,554,432)

The thirty-fifth update on 01/02/2021:

Release 1.18.0 - Version 1.18.0. This release includes the following change:

The thirty-sixth update on 12/04/2021:

Release 1.19.0 - Version 1.19.0. This release includes the below change:

  • added supporting of H264 webcam

The thirty-seventh update on 06/09/2021:

Release 1.19.1 - Version 1.19.1. This release includes the below change:

  • fixed bug with pull mode
  • fixed bug with open camera already in use

The thirty-eighth update on 06/12/2021:

Release 1.20.0 - Version 1.20.0. This release includes the below change:

  • added async/await invoking model

The thirty-ninth update on 04/07/2022:

Release 1.21.0 - Version 1.21.0. This release includes the following change:

  • replaced DirectX9 rendering on DirectX11 rendering

Add the new demo programs:

The fortieth update on 12/12/2022:

Release 1.22.0 - Version 1.22.0. This release includes the following changes:

  • added the new interface ILogPrintOutCallback

Add the new demo programs:

History

  • 11th August, 2015: Version 1
  • 21st August, 2015: Update
  • 31st August, 2015: Update
  • 13th November, 2015: Update
  • 7th March, 2016: Update
  • 21st March, 2016: Update
  • 12th April, 2016: Update
  • 13th June, 2016: Update
  • 1st August, 2016: Update
  • 5th September, 2016: Update
  • 3rd October, 2016: Update
  • 19th December, 2016: Update
  • 2nd January, 2017: Update
  • 9th January, 2017: Update
  • 16th January, 2017: Update
  • 6th February, 2017: Update
  • 13th March, 2017: Update
  • 1st May, 2017: Update
  • 10st July, 2017: Update
  • 31st July, 2017: Update
  • 21st August, 2017: Update
  • 23rd October, 2017: Update
  • 15th January, 2018: Update
  • 5th March, 2018: Update
  • 9th April, 2018: Update
  • 13th August, 2018: Update
  • 1st October, 2018: Update
  • 19th November, 2018: Update
  • 11th February, 2019: Update
  • 15th April, 2019: Update
  • 6th July, 2020: Update
  • 20th July, 2020: Update
  • 16th November, 2020: Update
  • 1st February, 2021: Update
  • 12th April, 2021: Update
  • 6th September, 2021: Update
  • 6th December, 2021: Update
  • 4th July, 2022: Update
  • 12th December, 2022: Update

License

This article, along with any associated source code and files, is licensed under The Code Project Open License (CPOL)


Written By
Software Developer
Australia Australia
This member has not yet provided a Biography. Assume it's interesting and varied, and probably something to do with programming.

Comments and Discussions


QuestionExample for IByteStreamSinkFactory + IMFByteStream Pin
igor_manowar21-Jan-23 21:41
igor_manowar21-Jan-23 21:41
AnswerRe: Example for IByteStreamSinkFactory + IMFByteStream Pin
Evgeny Pereguda21-Jan-23 23:22
Evgeny Pereguda21-Jan-23 23:22
GeneralMy vote of 5 Pin
DenisMelo12-Dec-22 13:11
DenisMelo12-Dec-22 13:11
GeneralMy vote of 5 Pin
DenisMelo12-Dec-22 13:09
DenisMelo12-Dec-22 13:09
QuestionI don't see any video for WPFRTSPClient project. Pin
mail4johnv25-Nov-22 6:40
mail4johnv25-Nov-22 6:40
QuestionCaptureManager SDK NetStandard Pin
Ladislav Heller7-Nov-22 4:08
Ladislav Heller7-Nov-22 4:08
QuestionDrawing and measuring onto the video feed image Pin
Member 1576532926-Sep-22 5:31
Member 1576532926-Sep-22 5:31
AnswerRe: Drawing and measuring onto the video feed image Pin
Evgeny Pereguda27-Sep-22 1:30
Evgeny Pereguda27-Sep-22 1:30
GeneralRe: Drawing and measuring onto the video feed image Pin
Member 1576532927-Sep-22 4:31
Member 1576532927-Sep-22 4:31
GeneralRe: Drawing and measuring onto the video feed image Pin
Evgeny Pereguda27-Sep-22 4:40
Evgeny Pereguda27-Sep-22 4:40
QuestionMy Vote of 5 Pin
Member 113486376-Sep-22 12:38
Member 113486376-Sep-22 12:38
BugCaptureManagerSDK v1.21.0 does not build on VS 2022 v17.3.3 Community Pin
Member 113486373-Sep-22 20:00
Member 113486373-Sep-22 20:00
AnswerRe: CaptureManagerSDK v1.21.0 does not build on VS 2022 v17.3.3 Community Pin
Evgeny Pereguda4-Sep-22 6:16
Evgeny Pereguda4-Sep-22 6:16
GeneralRe: CaptureManagerSDK v1.21.0 does not build on VS 2022 v17.3.3 Community Pin
Member 113486374-Sep-22 9:45
Member 113486374-Sep-22 9:45
AnswerRe: CaptureManagerSDK v1.21.0 does not build on VS 2022 v17.3.3 Community Pin
Evgeny Pereguda4-Sep-22 13:22
Evgeny Pereguda4-Sep-22 13:22
GeneralRe: CaptureManagerSDK v1.21.0 does not build on VS 2022 v17.3.3 Community Pin
Member 113486376-Sep-22 12:34
Member 113486376-Sep-22 12:34
GeneralMy vote of 5 Pin
R.T.Rose12-Jul-22 14:39
R.T.Rose12-Jul-22 14:39
QuestionCapture card not recognized Pin
Daniele Alberto Galliano10-May-22 10:29
professionalDaniele Alberto Galliano10-May-22 10:29
AnswerRe: Capture card not recognized Pin
Evgeny Pereguda11-May-22 0:59
Evgeny Pereguda11-May-22 0:59
GeneralRe: Capture card not recognized Pin
Daniele Alberto Galliano16-May-22 8:41
professionalDaniele Alberto Galliano16-May-22 8:41
QuestionHow to flipped video on recording Pin
Member 1333875913-Apr-22 20:46
Member 1333875913-Apr-22 20:46
AnswerRe: How to flipped video on recording Pin
Evgeny Pereguda14-Apr-22 0:47
Evgeny Pereguda14-Apr-22 0:47
QuestionWPFStreamer - create live score in the top corner Pin
adrie197523-Mar-22 23:21
adrie197523-Mar-22 23:21
AnswerRe: WPFStreamer - create live score in the top corner Pin
Evgeny Pereguda23-Mar-22 23:59
Evgeny Pereguda23-Mar-22 23:59
GeneralRe: WPFStreamer - create live score in the top corner Pin
adrie197524-Mar-22 2:01
adrie197524-Mar-22 2:01

General General    News News    Suggestion Suggestion    Question Question    Bug Bug    Answer Answer    Joke Joke    Praise Praise    Rant Rant    Admin Admin

Use Ctrl+Left/Right to switch messages, Ctrl+Up/Down to switch threads, Ctrl+Shift+Left/Right to switch pages.
