Grab and Parse HTML Data Through POST in C#

, 16 Oct 2015
Rate this:
Please Sign up or sign in to vote.
The article introduces a complete C# solution to grab Html data through POST request from remote server and extract fields from the Html source through parsing its DOM structure.

Introduction

It is a fundamental skill to extract data from formatted or unformatted data sources and make further processing. A typical case is, access a website, grab Html pages and get some useful information. The basic steps to accomplish this are:

  1. Create http request to grab html data
  2. Extract information from HTML code
  3. Process dump data to local database for further processing

Background

There are two fundamental ways to retrieve data from Internet through HTTP: GET and POST. Most websites support GET method to return data. You can simply initiate a GET request by entering the URL in browsers. However, some websites considering security issues or length restriction of request parameters only accept POST method to return data.

For instance, MSDN blog search form supports POST requests:

Another example is tracking the status of deliveries. Due to the reason of dealing with sensitive data, carriers either provide public web services to allow users to retrieve data, or only provide online query by submitting a form using POST. In order to grab the information, we have to simulate a POST request and parse the returned Html data to extract the details.

Using the Code

In this tutorial, you grab tracking event logs from speedy.ca. Here are the steps:

  1. Create an ASP.NET Web Forms project
  2. Add a web form with two textboxes, one button, two labels and a gridview. You will use gridview to display the results.

  3. Double click button and implement event handler:
    protected void btpParse_Click(object sender, EventArgs e)
    {
        String website = txtWebsite.Text;
        String param = txtParam.Text;
        String htmlData = GrabHtmlData(website, param); // to be implemented
        if (htmlData != null)
        {
            lblGrabResult.Text = "Size of html data: " + htmlData.Length + " characters";
            List<EventLog> logs = ParseData(htmlData); // to be implemented
            lblParseResult.Text = "Count of items: " + logs.Count;
            // bind results to gridview
            gvParseResult.DataSource = logs;
            gvParseResult.DataBind();
        }
        else
        {
            lblGrabResult.Text = "Failed to grab html data";
        }
    }

    Here, you define a class EventLog to save event logs.

    public class EventLog
    {
        public DateTime EventDate { get; set; }
        public String EventName { get; set; }
        public String EventLocation { get; set; }
        public override string ToString()
        {
            return EventDate + " " + EventName + " " + EventLocation;
        }
    }
  4. Implement GrabHtmlData() and ParseData() methods.

    1. Grab Html Data

    There are multiple ways to send POST request. You could use 3rd-party tools such as Fiddler, Postman to create POST requests. You can also create POST requests programmatically. In C#, WebRequest and WebClient classes from System.Net namespace allow you to do this.

    Way1 to get Html Data - via HttpWebRequest

    // create http request
    HttpWebRequest request = WebRequest.CreateHttp(website) as HttpWebRequest;
    // set post
    request.Method = "POST";
    request.KeepAlive = false;
    request.ContentType = "application/x-www-form-urlencoded";
    // add post data
    string postData = "pro=" + param;
    byte[] byteArray = Encoding.UTF8.GetBytes(postData);
    request.ContentLength = byteArray.Length;
    using (Stream stream = request.GetRequestStream())
    {
        stream.Write(byteArray, 0, byteArray.Length);
    }
    // get response
    var response = request.GetResponse() as HttpWebResponse;
    using (var stream = response.GetResponseStream())
    {
        StreamReader reader = new StreamReader(stream);
        return reader.ReadToEnd();
    }

    Way2 to get Html Data - via WebClient

    private string GrabHtmlDatabyWebClient(string website, string param)
    {
        using (var client = new WebClient())
        {
            // create post parameters
            var values = new NameValueCollection();
            values["pro"] = param;
            // get response
            var response = client.UploadValues(website, values);
            return Encoding.Default.GetString(response);
        }
    }

    2. Parse Html data

    There are multiple ways to extract data from Html document in C#.

    Way1 - via HtmlDocument

    .NET contains HtmlDocument, HtmlElement and HtmlNodeCollection classes (under System.Windows.Forms namespace) to parse Html page. HtmlDocument provides basic DOM methods like GetElementById() and GetElementsByTagName().

    e.g. Find and print all links inside a table:

    <table>
        ...
        <div class="photoBox">
            <a href="/user_details?userid=9HuMj3ePDGWR7vs3kLfZGg">
            <img width="100" height="100" alt="Photo of Terry"

    		src="http://s3-cdn.azure.com/photo/uiBlab5eTCJJuUrpdauA/ms.jpg">
            </a>
        </div>
        ...
    </table>

    Sample code to parse html segment:

    String htmlData = ..;
    // load html data
    HtmlDocument doc = new HtmlDocument();
    doc.LoadHtml(htmlData);
    // locate "table" node
    HtmlNodeCollection col = doc.DocumentNode.SelectNodes("//table");
    foreach (HtmlNode node in col)
    {
        // find all links
        String link = node.Attributes["href"].Value;
        Console.WriteLine(link);
    }

    Similarly, .NET also provides XmlDocument class and XmlNode to parse XML document.

    Way2 - via Regular Expression

    The regular expressions language is designed to identify character patterns. It is generally used to implement search, read, replace and modify text. With regular expressions, you can perform very sophisticated and high-level operations on strings:

    • Validate text input such as emails, passwords and phone numbers
    • Parse textual data into more structured forms, e.g., extract links, pictures, titles from html page
    • Process patterns of text in a document, e.g., count repeated words and replace words

    Of course, you can use methods in System.String and System.Text.StringBuilder to accomplish these tasks, but it requires fair amount of C# code. You can use regular expressions to achieve these through just a couple of lines.

    Steps
    1. Instantiate a System.Text.RegularExpressions.Regex object
    2. Pass in the string to be processed
    3. Pass in a regular expression
    4. Start match and process returned groups

    For example:

    string htmlData = ...;
    // this regular expression matches <div class="adxTOCTitleMycenNews">
    // <a href="http://www.example.com">News title...</a>
    // define a backreference "title" in the pattern
    string pattern = @"<[dD][iI][vV]\sclass=[\""\']?adxTOCTitleMycenNews[\""\']?>
    		<[aA]\shref=[\""\']?[^>]*>(?<title>[^<]*)<\/[aA]>";
    // create regex object
    Regex r = new Regex(pattern);
    // find match
    MatchCollection mc = r.Matches(htmlData);
    //parse the news title
    foreach (Match m in mc)
    {
        GroupCollection gc = m.Groups;
        Console.WriteLine("News title: " + gc["title"].Value);
    }

    However, Regex is less efficient in extracting data from Html Data. In read world, HTML document might be mal-formed, various and even include empty tags such as <br>, <br/>. It is complicated to write an appropriate Regex to identify target html tags. For instance, considering the different formats of <input/>, <input type=text name=firstName value=> and <input type="text" name="firstName" value=""/>, it is a challenging job to write a Regex to consider all the cases.

    Way3 - via third-party libraries

    Html Agility Pack (HAP) is a HTML parser that builds a read/write DOM. HAP enhances internal .NET HtmlDocument. It allows you to parse HTML files in a convenient way. HAP also supports Linq to Objects. The major benefit is, the parser is very tolerant with "real world" malformed HTML (i.e., lacking proper closing tags or capitalized tags). HAP goes through page content and builds document object model that can be later processed. Once the document is loaded, you can start parsing data through loop the nodes.

    To start working with HAP, you should install NuGet package named HtmlAgilityPack.

    You can also download it at https://www.nuget.org/packages/Fizzler.Systems.HtmlAgilityPack/.

    Steps to parse Html data:

    1. Create an HtmlWeb object. It is a utility tool to get the HTML over HTTP.
    2. Create an HtmlDocument object to accept the Html data.
    3. Find a HtmlNode object through getElementById() method.
    4. Use node's properties such as ChildNodes, FirstChild, NextSibling and ParentNode to navigate the nodes. Or, use Ancestors() and Descendants() methods to get a list of the node's ancestors or descendants.
    5. Create HtmlAttribute objects from nodes and extract the data by node's Attributes property or extract the text using innerText and innerHtml property.

Sample code:

// Create an HtmlDocument object from URL
//HtmlWeb htmlWeb = new HtmlWeb();
//HtmlDocument htmlDocument =
//	htmlWeb.Load("https://en.wikipedia.org/wiki/List_of_unit_testing_frameworks");
// Create an HtmlDocument object from a html file
HtmlDocument document = new HtmlDocument();
doc.Load("file.htm");
// Find a specific node
HtmlNode myNode = document.GetElementbyId("mynode");
// Identify all links within that node
foreach(HtmlNode link in myNode.Descendants("//a[@href"])
{
    // Extract data from HtmlAttribute objects
    HtmlAttribute attr = link.Attributes["href"];
    Console.WriteLine(attr.Value);
}

In order to extract the tracking event data from the following table, you need to loop each row and get data from each column.

Sample Html code:

<div class="ServicesResults">
    ...
    <table width=498 border=0 class='textTracing'>
        <tr id='TableTitle'>
            <td colspan=4 id='ProbillHeader'>
                Shipment Timeline for  3009000&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;
			Delivery ETA: 09-Oct-2015&nbsp;(Appointment)
            </td>
        </tr>
        <tr>
            <td class='ColumnHeader' id='DateHeader'>Date</td>
            <td class='ColumnHeader' id='TimeHeader'>Time</td>
            <td class='ColumnHeader' id='StatusHeader'>Status</td>
            <td class='ColumnHeader' id='LocHeader'>Location</td>
        </tr>
        <form id='FindPOD' name='FindPOD' action='findpod.asp' method='post'>
            <tr>
                <td class='ColumnValue'>Wed 07-Oct-2015</td>
                <td class='ColumnValue'>01:08Hrs</td>
                <td class='ColumnValue'>Bill Entered</td>
                <td class='ColumnValue'>Toronto, ON</td>
            </tr>
            <tr>
                <td class='ColumnValue'>&nbsp</td>
                <td class='ColumnValue'>05:10Hrs</td>
                <td class='ColumnValue'>Loaded-Tor-Mtl</td>
                <td class='ColumnValue'>Toronto, ON</td>
            </tr>
            <tr>
                <td class='ColumnValue'>&nbsp</td>
                <td class='ColumnValue'>06:05Hrs</td>
                <td class='ColumnValue'>Enroute to Montreal ex-Toronto</td>
                <td class='ColumnValue'>Toronto, ON</td>
            </tr>
            <tr>
                <td class='ColumnValue'>Thu 08-Oct-2015</td>
                <td class='ColumnValue'>13:05Hrs</td>
                <td class='ColumnValue'>Appointment Set 09-Oct-2015  08:00 - 12:00Hrs</td>
                <td class='ColumnValue'>Toronto, ON</td>
            </tr>
            ...
        </tr>
    </table>
</div>

Note that the table has a CSS class "textTracing" and is wrapped inside a div with another CSS class "ServicesResults". In order to get the nodes and extract data by identifying nodes through CSS, you can install another library Fizzler which is implemented as the extension of HtmlNode in HTML Agility Pack. Fizzler is a light .NET CSS Selector Engine and enables you to select items from a node tree through a CSS selector.

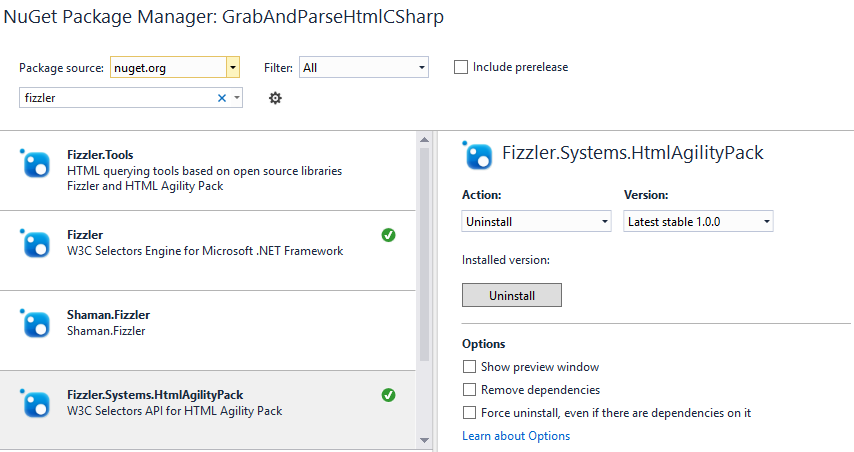

To install Fizzler, you should install NuGet package named Fizzler.Systems.HtmlAgilityPack.

You can also install at https://www.nuget.org/packages/Fizzler.Systems.HtmlAgilityPack/.

You can call QuerySelectorAll() method (accept class name as parameter) to get nodes and extract data from nodes. Until now, you already grab the Html data, the next is to pass the data to HtmlDocument object and go further to extract the data.

private List<EventLog> ParseData(string htmlData)
{
    var logs = new List<EventLog>();
    // load data
    var document = new HtmlAgilityPack.HtmlDocument();
    document.LoadHtml(htmlData);
    // find the log table
    var resultNode = document.DocumentNode.QuerySelector(".ServicesResults .textTracing");
    // extract data
    String date = null;
    String time = null;
    String status = null;
    String location = null;
    foreach (var rowNode in resultNode.Descendants("tr").Skip(2))
    {
        var colNodes = rowNode.Descendants("td");
        if (colNodes.Count() != 4)
        {
            throw new InvalidOperationException("The website modify the format result results");
        }
        var colList = colNodes.ToList();
        if (colList[0].InnerText != "&nbsp;")
            date = colList[0].InnerText;
        time = colList[1].InnerText;
        status = colList[2].InnerText;
        location = colList[3].InnerText;
        var log = new EventLog()
        {
            EventDate = DateTime.Now,
            EventName = status,
            EventLocation = location
        };
        logs.Add(log);
    }
    return logs;
}

Final Demo

After compiling the project, you will get the gridview filled with parsed event logs:

History

  • October 11, 2015: First version posted
  • October 20, 2015: Add screenshot of final project
