Parsing XSD Schema with SOM

Rate me:
Please Sign up or sign in to vote.
5.00/5 (9 votes)
13 Oct 2008CPOL
Pull metadata from a schema or generate XML mappers


This article shows how to use a Schema Object Model(SOM) navigator as an arbitrary schema. This is useful when you have a schema and want to generate your own mapping or want to build a custom XML generator or XSD based code generator.

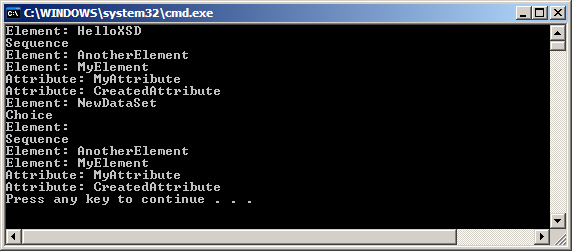

Using the Code

First read schema and "compile", this will validate the schema.

private static XmlSchema
ReadAndCompileSchema(string fileName)
    XmlTextReader tr = new XmlTextReader(fileName,
                        new NameTable());

    // The Read method will throw errors encountered
    // on parsing the schema
    XmlSchema schema = XmlSchema.Read(tr,
           new ValidationEventHandler(ValidationCallbackOne));

    XmlSchemaSet xset = new XmlSchemaSet();

    xset.ValidationEventHandler += new ValidationEventHandler(ValidationCallbackOne);

    // The Compile method will throw errors
    // encountered on compiling the schema

    return schema;

private static void ValidationCallbackOne(object sender, ValidationEventArgs args)
    Console.WriteLine("Exception Severity: " + args.Severity);

Start traversing at the highest level...

private static void TraverseSOM(string xsfFilename)
    XmlSchema custSchema = ReadAndCompileSchema(xsfFilename);

    foreach (XmlSchemaElement elem in

Only an element can contain attributes... so it's handled in a little special way:

private static void ProcessElement(XmlSchemaElement elem)
    Console.WriteLine("Element: {0}", elem.Name);

    if (elem.ElementSchemaType is XmlSchemaComplexType)
	XmlSchemaComplexType ct =
		elem.ElementSchemaType as XmlSchemaComplexType;

	foreach (DictionaryEntry obj in ct.AttributeUses)
		Console.WriteLine("Attribute: {0}  ",
		(obj.Value as XmlSchemaAttribute).Name);


Process the Choice & Sequence elements generically (this handles the type casting required):

private static void ProcessSequence(XmlSchemaSequence sequence)

private static void ProcessChoice(XmlSchemaChoice choice)

The Schema objects are processed generically, but uniformly:

private static void ProcessItemCollection(XmlSchemaObjectCollection objs)
    foreach (XmlSchemaObject obj in objs)

private static void ProcessSchemaObject(XmlSchemaObject obj)
    if (obj is XmlSchemaElement)
        ProcessElement(obj as XmlSchemaElement);
    if (obj is XmlSchemaChoice)
        ProcessChoice(obj as XmlSchemaChoice);
    if (obj is XmlSchemaSequence)
        ProcessSequence(obj as XmlSchemaSequence);

Points of Interest

There's a lot of type checking and casting. That's inherent in the data model used in the SOM. It's not a strongly typed data structure. So you have to check, cast, then use. It would be an interesting exercise to generate a strongly typed XSD model, but I'll leave that for another article.


  • 2008-10-10: Article created
