WPF Controls Tester

, 30 Jan 2012
Rate this:
Please Sign up or sign in to vote.
WPF Controls Tester is a small application written to test several WPF controls and panels in order to study their behavior. Beginning WPF programmers may benefit by studying techniques used within this application.


This article will introduce you to a sample application I wrote called "WPF Control Tester." The purpose of the application is to study and demonstrate the behavior of the control panels that come as a part of WPF and several other important controls.


I began studying WPF on a hit or miss basis since the technology was introduced several years ago; unfortunately the time spent was more miss than hit. After working with .NET Forms control for so long, and similar technologies before that, I found it difficult to get my head around the xaml way of doing things. The old familiar properties are either missing altogether or behave in entirely new ways.

Having some available time recently I to the opportunity to immerse myself in a study of WPF, and I am thankful to say that not only am I starting to get a handle on things now, but I am enjoying WPF and I can see how it is superior to the old ways in many different ways.

As a part of my recent study of WPF I wrote the application that accompanies this article. Most of the application was purposely written in Xaml. Except for a few old fashioned event handlers written in C# for convenience, I wanted to see how things could be done in Xaml without writing code. Once the logic begins to make sense, there is a good bit you can do by writing Xaml. I am sure that some of the code that I wrote could have been done in better ways, but I decided sometimes it is better to finish a project, than to do everything just write.

In the following article I will briefly describe the application, and then point out a number of interesting discoveries I made while programming the application.

Using WPF Control Tester

You can download WPF Control Tester from this page in either of two packages. The compiled version will run "out of the box" by simply extracting it and its support files and folders into any folder on your computer. Otherwise you can download the source code in order to peruse and make your own modifications, and then compile and run the application from the source.

Six test windows are created by the application to illustrate various features of several WPF controls. All of those windows are available from the main Launch Window. Thumbnail images of each window are presented here (plus two others), and a description of each follows.

Margins and Panels window StackPanels window WrapPanels window DockPanels window
Margins & Paddings StackPanels WrapPanels DockPanels
Grids window Canvas Panels window Help Window Context Menu
Grids Canvas Panels Help Window Context Menu

Margins and Paddings

The Margins and Paddings window demonstrates the use of the

and Padding properties on all WPF controls. It demonstrates how these properties behave when one number, two numbers, and four numbers are used to set the properties. By comparing the output shown in the top, middle and bottom rows, it is easy to see the difference between a Margin setting, and a Padding setting.

For the demonstration I used Labels wrapped in Borders to make it easy to distinguish between the areas defined by Margin (outside of the red Border in green) and the area defined by Padding (inside the red Border surrounding the text of a Label.

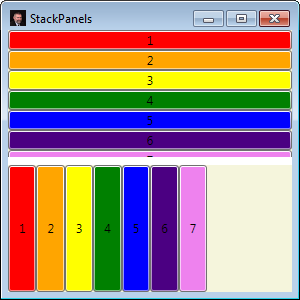

The next window is StackPanels. In this window two StackPanel objects are presented to demonstrate the difference between

and Orientation="Horizontal." This is perhaps the simplest test window of the six. As a point of interest I decided to use a Grid in this window to organize and separate the to
s. This could have been done with other panels, including
, so sometimes choosing between one and another kind of panel is just a matter of preference.

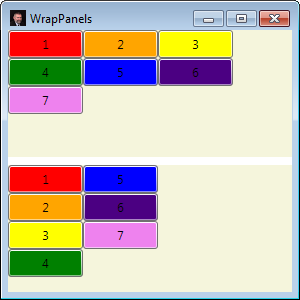

The WrapPanels window is very much like the StackPanels window. Comparing the xaml of the two windows shows very little difference in the visual elements other than the WrapPanel and

tags. In the Style I created in the Resources section I added two Setter tags for the WrapPanel that were not part of the StackPanel Style, one for ItemWidth, and another for ItemHeight.

Like the StackPanels window WrapPanels has two

objects demonstrating both Horizontal and
settings for Orientation.

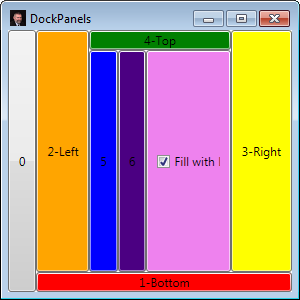

The DockPanels window demonstrates perhaps the most useful WPF panel. When adding a control to a DockPanel you specify the side to which the control should dock with an attached property, DockPanel.Dock. This window shows how the order in which controls are added affects the amount of room given to it. The window also illustrates the effect of setting LastChildFill either True or False.

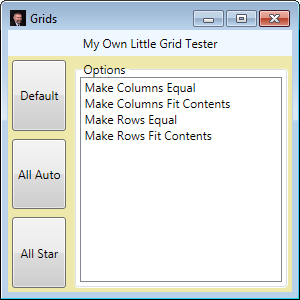

The last two windows are the most interesting of the six. The Grids window illustrates how that rows and columns are setup within a Grid, and the sizing effects of setting the Height of a

or the Width of a
either to "Auto" or to "*".

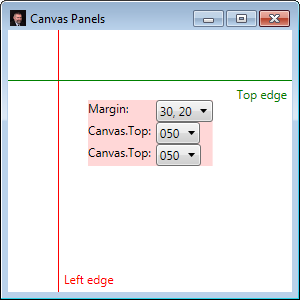

Canvas Panels

The last test window is called Canvas Panels, and it illustrates how the attached properties Canvas.Left and Canvas.Top and normal Margin property combine to effect the placement of controls on a Canvas.

I Need Help! No problem.

Additional information about the controls illustrated is available in a help window by clicking on those windows with the right mouse button. This will open a context menu. Clicking on the top menu option will open a new window with information about that window and the controls demonstrated there.

Points of Interest

Besides the demonstrations presented in the test windows there are other interesting aspects in the code for the application. In order to make it easy to open the test windows I added an instance of each window as a resource within

of the Launch Window, and then used Binding to bind each window to its Button, and a Button Style to set each Button's Content property to its window's Title property, and the window itself to the Button's Tag property. (See LaunchWindow.xaml for the markup for this.)

Launching a window then was as simple as casting Sender to Window and using its methods to make it appear. In order to keep a window from being disposed while the program was still running, LaunchWindow's button_Click event handler attached an event handler to any window it launched. Then when LaunchWindow detected that a window was trying to close, it intercepted that and simply made the window invisible. Subsequent requests to open the same window were honored by making the window visible and then making it the active window.

I discovered while debugging that when I exited the program (by closing all of the windows), the program would not actually stop running. This confused me at first because during my tests I had always closed the test windows before closing the Launch Window. I had assumed that closing that window would cause its resources to be disposed which would have closed all of the test windows automatically. My thinking erred.

Perhaps making LaunchWindow the Owner of each of the test windows would have made the program work as I expected, but I did not test that. Instead I used an override of OnClosing to close each of the test windows when LaunchWindow closed. The other technique however probably would not have worked without doing something to remove the event handler created to prevent the test windows from closing, and might have caused additional problems when the test windows called the even handler of a object that had been disposed. (See LaunchWindow.xaml.cs for the code discussed here.)

There are several other items that may be of interest to programmers. One is the use of a Frame element within HelpWindow to show the html help files created for the project. Look in HelpWindow.xaml and HelpWindow.xaml.cs for the markup and code behind to make that work.

Another is the simplicity of adding a splash screen to appear while the application is opening. (Just add an image to the project, and set its

Build Action
property to SplashScreen.) At first this application started so quickly that there was not enough time for the splash screen, so I added a short delay in the App() constructor before showing the first window in App.xaml.cs.

Finally you may like to take a look at the event handler for the context menu that is also found in App.xaml.cs. Because the same ContextMenu is used in all of the windows where it is available, I had to find a way to determine which window was involved in the request. I know there are better ways in WPF to handle this problem, but for this quick application I wrote code to find the ContextMenu object from the MenuItem generating the event, and then from the ContextMenu the PlacementTarget property gave me a control within the window from which the event was invoked. Once I had that I only needed to follow a path of Parent items until the appropriate Window was found, and with that I could determine which help file to load within the help window.

I have enjoyed putting this application together, and writing about it here. My purpose has been mostly selfish, hoping that following this path I might better understand this technology. However, I hope also that this might help others come to understand WPF a little faster than they might without it.



January 29, 2012 - Original submission.


This article, along with any associated source code and files, is licensed under The Code Project Open License (CPOL)


About the Author

Gil Yoder
Yoder's List
United States United States
Gil Yoder is an application performance analyst at Chevron. He has been working in their IT organization for about fifteen years. Before Chevron computer technology was more hobby than profession for him. He still considers it a hobby and enjoys learning about all of its aspects.

He starting learning how to program on a TRS-80 Model I computer with 4K RAM and 4K ROM. Those who can remember those days know that the 4K ROM contained all of the "OS" for the computer, and somewhat crippled version of Microsoft BASIC.

After a while he was able to upgrade the computer so that eventually he had a fully loaded 64K system, 48K RAM, and 16K ROM. With that he learned to program in BASIC and Z80 Assembly Language. He sold his first machine language program to 80-Micro Magazine (shortly before it folded) for $500. The program was a Z80 Debugger that sported a feature allowing single stepping within ROM.

At this time most of Yoder's free time is spent programming and learning about C#, WPF, SilverLight, MVVM, and other related technologies.

Mr. Yoder lives in a small suburb of Houston, TX with his wife. He and his wife have one daughter who is married and has two wonderful boys. Yoder looks forward to the day he can teach his grandsons how to design and create WPF controls.
