How to create a Custom Data reference in PI AF for access to historical data

, 21 Aug 2012
Rate this:
Please Sign up or sign in to vote.
To get the Historical values within a requested Time Range from AF Table

Editorial Note

This article appears in the Third Party Products and Tools section. Articles in this section are for the members only and must not be used to promote or advertise products in any way, shape or form. Please report any spam or advertising.


The reason behind to write this article was scarcity of information about custom data reference on web and limited access to PI resources, so that others who are trying to implement something similar don’t have to go through the head scratching sessions. Though there is a lot of stuff available on VCampus but my mere intention was to ease out things by integrating all the information at a single place.

Why on earth do we need to connect to a relational database when we have a real time management system?

Let’s consider the following scenario of an Oil and Gas industry. Suppose there are ten wells and we need to check the outlet flow. The company can’t place a Flow meter with each well as it would cost them a lot, so they decide to place a Flow meter between 10 wells and the wells are connected to it via pipelines, with a valve attached in each. Now say we need to check the outlet flow of the Well 1, we close the valves of all the other wells, and as Well 1 is already connected to the Flow meter, we can easily get the outlet Flow value.

Now we can infer two things from the above scenario, that it would add to the cost, if we place a Flow meter with each Well and it is pointless to archive this data in PI when we don’t even want to monitor it on a daily basis. Say there are 100 Wells and we only check the outlet flow of the Well 1 once in two weeks only, so there is no point maintaining this data in PI, since it would completely defy its main purpose of real time data management. In such cases it’s wise to maintain data in some relational database.

The question here arises is, if the data is fragmented i.e. some in PI System and some of it in relational DB’s, so how is PI Managing the data? PI provides the facility to show the data from the PI Server as well as the relational database. It displays the data from relational database in the form of Tables which could be customized according to the user’s needs. Tables could be found under the Library section of PI System.


(Fig 1.1)

Now the next big question is, why do we need a custom data reference when PI already provides ways to refer to the relational databases.

Usually PI AF fetches historical data from PI tags referenced as PI Point in AF, data can also be retrieved from other data sources like relational data from Oracle, SQL, etc., which is brought to AF using library tables. AF doesn’t provides an option for the retrieval of historical data within a specific Time Range from a relational database, it only provides the current value of the attribute when referenced through AF TableLookup Data Reference. But what If, we need historical data of a specific date time range for analysis, trending purpose in the application. Therefore we are going to make this My_Table_Lookup custom data reference in AF to get the Historical Data from relational database (e.g. SQL) within a specific time range.


I assume that the user reading this article is familiar with the PI System Explorer, still let’s have a quick overview of the AF terminology before jumping to the implementation part.

PI System: An OSIsoft product for management of real time data and events.

PI AF: PI Asset Framework allows the representation of data in reference to the physical assets like equipment, devices that exists within the plant. It displays data in hierarchical and structured form as Elements and attributes.

Elements: Elements generally represents the physical objects like Equipment, Wells etc. within the plant.

Attributes: Attributes are used to store information about the elements such as the Flow rate, temperature etc.

Data Reference:  Data Reference is one which allows getting attribute value from a data source that could be a PI Point (from PI Server), a relational database .PI AF also provides

PI SDK: OSIsoft has provided OSIsoft has provided PI Software Development Kit, a Microsoft .NET assembly to access the OSIsoft data or simply a programming library to access the PI Servers.

Using the code

As we need to fetch data from alternate sources, the custom data reference (My_Table_Lookup) will act as a lookup, similar to the Table lookup, to retrieve data from relational database for a specific time range. My_Table_Lookup will be configured using the AF Data Reference. It inherits from the AF Data Reference object and uses the standard functions available. This custom data reference can be registered using the command line which we will talk about later. Once registered it could be viewed in the data reference list in the AF Client (Fig 1.3). My_Table_Lookup will then be associated with an AF Table that will provide the required data from the database. After the association we will be using the same dialog box as that of the Table Lookup Data Reference to allow the user to configure the attribute value. It make dynamic query to the relational database and pulls the data. Here the GetValues function gets overridden to return the historical values from the AF Table.

You need PI SDK (v.1.3.8 or later) which is based on Microsoft’s Component Object Model and AF Client 2010 R2, for building the custom data reference. Once you install the PI System, PI SDK is installed with all the necessary libraries and services required to access the data stored within the PI historian.

This could be better understood by the following figure.


(Fig 1.2)

The basic idea is to override the existing GetValue and GetValues functions of the data reference and add required implementation to fetch the current/historical value(s) as required.


By default, this method returns the current value of the attribute and since we need value at a particular timestamp, we will override this function to get the required result.

If the value is not available at requested timestamp, we might need to return the value at the closest timestamp by interpolating the results.

GetValue(object context, object timeContext, AFAttributeList inputAttributes, AFValues inputValues)

First of all we are going to override the GetValue method

public override AFValue GetValue(object context, object timeContext,
           AFAttributeList inputAttributes, AFValues inputValues)
   // Code

Now the next thing is to get the Filter, here Filter in base.Filter, is the query which we get after configuring a particular attribute

Filter could look like "SELECT ProducedOil FROM [WellDailyData] WHERE ProducedOil = @[Production Rate]".

string filter = base.Filter.Replace("[", "");
filter = filter.Replace("]", "");

We need to retrieve the attribute name from the filter by parsing the filter

index = filter.IndexOf("@");
if (index > 0)
   for (int i = index + 1; (i < filter.Length); i++)
      if ((filter[i].ToString() != " "))
         attributeName += filter[i].ToString();

Create an object of AFAttribute, as we have already retrieved the attribute name. We get the attribute object by the GetAttribute method

AFAttribute attribute; = base.GetAttribute(attributeName);
string val = attribute.GetValue();
string temp = "@" + attributeName;
string value = "'" + val.ToString() + "'";
filter = filter.Replace(temp, value);
filterInterpolation= filter.Replace(temp, value); // for later reference

Now the crux of the article comes here. Since we only get the Current/Latest value, we need to modify and retrieve value at a particular TimeStamp

So we are going to tweak the Filter (Query), in order to get the value at a requested TimeStamp.

if (filter != null && timeContext != null)
  filter = filter.Trim();
  filter = filter + " AND START_DATETIME ='" + timeContext.ToString() + "'";
else if (filter == null && timeContext != null) // This is in case when there is no filter
  filter = "START_DATETIME ='" + timeContext.ToString() + "'";

As we have got the required filter with the Timestamp now we need to get the database and the Tables which the Lookup is referring to and query the table

AFDatabase afDB = base.Database;
AFTable t = afDB.Tables[base.Table];
DataRow[] foundRows = t.Table.Select(filter);

Returning the last value i.e. is the last value of foundRows (as it is in ascending order)

Field: The Field which holds the value to be returned

AFValue item = item = new AFValue(foundRows[foundRows.Length - 1][base.Field],
       new AFTime(Convert.ToDateTime(foundRows[foundRows.Length - 1]["START_DATETIME"])));

Now the question arises what if there is no matching value in the AF table at the requested timestamp. In such cases we need to interpolate the result.

Interpolation is creating new data points within the range of known data points, i.e. we need to the get the value at the just before and next timestamp to the requested Timestamp.

And we'll use the most basic way of interpolating by finding the slope between the two values, where Timestamp will represent the Y-Axis and the values the X-Axis


First of all retrieve all the rows fulfilling the filter condition in ascending order of DateTime

   retrievedRows = t.Table.Select(filterInterpolation, "START_DATETIME ASC");
// Or in case there is no filter
   retrievedRows = t.Table.Select();

Now finding the values at the respective Timestamps

for (int i = 0; i < retrievedRows.Length; i++)
  if ((DateTime)retrievedRows[i]["START_DATETIME"] > ((AFTime)timeContext).UtcTime)
    t2 = (DateTime)retrievedRows[i]["START_DATETIME"];
    valueAttribute2 = retrievedRows[i][base.Field].ToString();
  else if ((DateTime)retrievedRows[i]["START_DATETIME"] < ((AFTime)timeContext).UtcTime)
    t1 = (DateTime)retrievedRows[i]["START_DATETIME"];
    valueAttribute1 = retrievedRows[i][base.Field].ToString();

Finding the slope between the two points i.e. between valueAttribute2 and valueAttribute1

if (valueAttribute1 != "" && valueAttribute2 != "")
 slope = ((Convert.ToDouble(valueAttribute2)) -
        (Convert.ToDouble(valueAttribute1))) / ((t2 - t1).TotalHours);
 difference = ((AFTime)timeContext - t2).TotalHours;
 interpolatedValue = (Convert.ToDouble(valueAttribute2)) + (difference * slope);
 item = new AFValue(interpolatedValue, new AFTime ((AFTime)timeContext).UtcTime);

We should also handle the boundary conditions when record associated to the requested TimeStamp is the first record in the table or the last record in the table. In this case we do not get the two points to find the slope as it is the first or the last record.

// for the first record which is not available
else if (valueAttribute1 == "" && valueAttribute2 != "")
 interpolatedValue = 0;
 interpolatedValue = (Convert.ToDouble(valueAttribute2));
 item = new AFValue(interpolatedValue, new AFTime((AFTime)timeContext).UtcTime);
//For latest record, if there is no value
else if (valueAttribute2 == "" && valueAttribute1 != "")
 interpolatedValue = 0;
 interpolatedValue = (Convert.ToDouble(valueAttribute1));
 item = new AFValue(interpolatedValue, new AFTime((AFTime)timeContext).UtcTime);

Finally we return the desired AFValue

return item;


This method retrieves the historical values of attributes and returns all the values within a time range i.e. start time and end time. It also interpolate the results according to the number of values requested

GetValues(object context, AFTimeRange timeContext, int numberOfValues, AFAttributeList inputAttributes, AFValues[] inputValues)

As done in GetValue method, similarly we are going to override the GetValues method, the get the Filter and find the attribute name.

If the numberOfValues is less than 0 then we need to interpolate the result and return values according to the numberOfValues otherwise we are going to return all the values within the TimeRange

public override AFValues GetValues(object context,
       AFTimeRange timeContext, int numberOfValues,
       AFAttributeList inputAttributes, AFValues[] inputValues)
	// Code

Once we get the attribute name we'll find the startTime and endTime, i.e., the TimeRange within which we need to retrieve values

startTime = timeContext.StartTime.ToString();
endTime = timeContext.EndTime.ToString();
attribute = base.GetAttribute(attributeName);
val = attribute.GetValue();
temp = "@" + attributeName;
value = "'" + val.ToString() + "'";
filter = filter.Replace(temp, value);
tempfilter = filter.Replace(temp, value);
// as filter would modified therefore we need to maintain it in another variable

Now we'll customize the filter

if (filter != null)
  filter = filter.Trim();
  filter = filter + " AND START_DATETIME >='" + startTime +
      "' AND START_DATETIME <='" + endTime + "'";
  filter = "START_DATETIME >='" + startTime + "' AND START_DATETIME <='" + endTime + "'";

We are going to check if numberOfValues is negative or not. If numberOfValues is less than 0 then we will interpolate the result.

DataRow[] retrievedRows;
retrievedRows = t.Table.Select(filter);
if (numberOfValues < 0)
  for (int i = 0; i < retrievedRows.Length; i++)
      item = new AFValue(retrievedRows[i][base.Field],
             new AFTime(Convert.ToDateTime(retrievedRows[i]["START_DATETIME"])));
afValues.Insert(i, item);     // item is the AFValue


First we'll interpolate the Timestamps and then the values.

Initialize a Timestamp array against the numberOfValues and find the time difference between the startTime and endTime so that we can create Timestamps within the TimeRange. The interpolated time would be the time difference divided by the number of values requested.

numberOfValues = numberOfValues * (-1);
DateTime[] Timestamps = new DateTime[numberOfValues];
Timestamps[0] = Convert.ToDateTime(startTime);
Timestamps[numberOfValues - 1] = Convert.ToDateTime(startTime);
timeDifference = (Convert.ToDateTime(startTime) - Convert.ToDateTime(endTime)).TotalSeconds;
if (timeDifference < 0)         //if negative
timeDifference = timeDifference * (-1);
interpolatedTime = (timeDifference / (numberOfValues - 1));  //numberOfValues-1 as starttime and endtime are included
for (int i = 1; i < (numberOfValues - 1); i++)
  Timestamps[i] = Timestamps[i - 1].AddSeconds(interpolatedTime);

Now we'll interpolate the values by first checking if the values are available for the interpolated Timestamps in the retrieved records and if not then interpolating the values

We find the results with the Timecontext(with start time and end time)

DataRow[] retrievedRows;
retrievedRows = t.Table.Select(filter, "START_DATETIME ASC");

tempFilter is the filter i.e. without the timecontext(all the records in the ascending order od DateTime)

We can get exact values from retrievedRows but we'll find interpolated values using foundRows

DataRow[] foundRows;
foundRows = t.Table.Select(tempfilter, "START_DATETIME ASC");

First we'll check if the interpolated Timestamp matches the Timestamp of the retrieved row, if it matches then we get the first exact value otherwise we need to interpolate the value

if (Convert.ToDateTime(retrievedRows[_index]["START_DATETIME"]) == Timestamps[j])
  // Code to get the record from the retrieved rows and insert it to the AFValues list

In other case when the Timestamp doesn't match the interpolated Timestamp, we first compare if the Timestamp of the retrieved record is less than the Interpolated Timestamp, if so then we again check whether it is less than timestamp of the foundRow record, we get the first time and its value, otherwise we get the second time and value for interpolation.

if ((DateTime)foundRows[i]["START_DATETIME"] > Convert.ToDateTime(Convert.ToDateTime(Timestamps[j])))
  t2 = (DateTime)foundRows[i]["START_DATETIME"];
  valueAttribute2 = foundRows[i][base.Field].ToString();
else if ((DateTime)foundRows[i]["START_DATETIME"] < Convert.ToDateTime(Convert.ToDateTime(Timestamps[j])))
  t1 = (DateTime)foundRows[i]["START_DATETIME"];
  valueAttribute1 = foundRows[i][base.Field].ToString();

Find the slope and get the interpolated value

slope = ((Convert.ToDouble(valueAttribute2)) - (Convert.ToDouble(valueAttribute1))) / ((t2 - t1).TotalHours);
difference = ((AFTime)Timestamps[j] - t2).TotalHours;
interpolatedValue = (Convert.ToDouble(valueAttribute2)) + ((difference * slope));
item = new AFValue(interpolatedValue, new AFTime((AFTime)Timestamps[j]));
afValues.Insert(j, item);

Repeat the above steps for all the retrieved records and interpolated timestamps and return the all the AFValues

return afValues;

How to register and unregister the Custom Data Reference

We need to register our data reference in order to use it.


Place the OSIsoft.AF.Asset.DataReference.TableLookup.dll and My_Table_Lookup.dll at the following location “C:\Program Files (x86)\PIPC\AF”

For Registering

Go to Command prompt and type cd C:\Program Files (x86)\PIPC\AF\

Type the following command

regplugin "C:\Program Files (x86)\PIPC\AF\My_Table_Lookup.dll" /owner:"C:\Program Files (x86)\PIPC\AF\OSIsoft.AF.Asset.DataReference.TableLookup.dll"

If you are not able to register the data reference then give the following command to register it forcefully.

regplugin "C:\Program Files (x86)\PIPC\AF\My_Table_Lookup.dll" /owner:"C:\Program Files (x86)\PIPC\AF\OSIsoft.AF.Asset.DataReference.TableLookup.dll" /F

RegPlugIn.exe and is located in the following folder: \PIPC\AF

For Unregistering

Go to Command Prompt and type cd C:\Program Files (x86)\PIPC\AF\

Type the following command

regplugin /u /Files:C:\ProgramData\OSIsoft\AF\Custom_Table_Lookup.dll

NOTE: Do close the PI AF Client and PI Server if installed, before registering and unregistering.

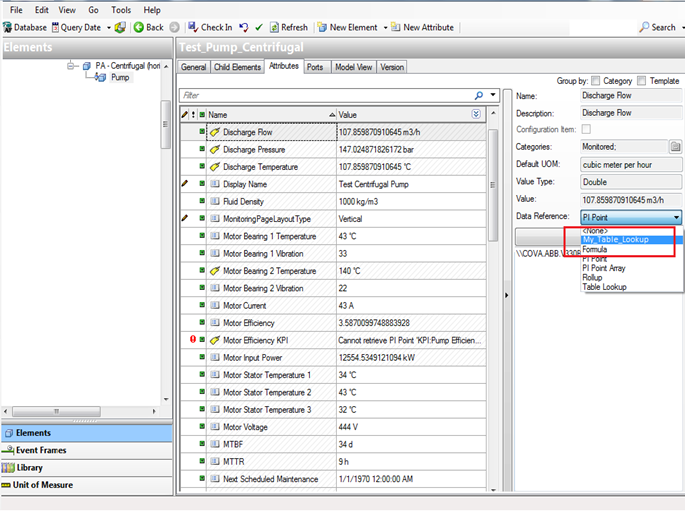

After registering we would be able to see it in the AF Client as shown below.

(Fig 1.3)


The custom data reference could be used in various applications like Processbook and Datalink, for a graphical representation, for trending purpose etc., to retrieve the historical values from the relational databases. This was one type of data reference which was specifically built to cater a particular requirement. Anyone can create a data reference by inheriting the Table Lookup and customize it according to their needs.


This article, along with any associated source code and files, is licensed under The Code Project Open License (CPOL)


About the Author

Anumeha Shukla
Software Developer
India India
No Biography provided

You may also be interested in...


Comments and Discussions

GeneralMy vote of 5 Pin
Timv25630-Nov-12 6:34
memberTimv25630-Nov-12 6:34
GeneralRe: My vote of 5 Pin
Anumeha Shukla30-Nov-12 6:56
memberAnumeha Shukla30-Nov-12 6:56
GeneralMy vote of 5 Pin
Ami Trivedi27-Sep-12 22:00
memberAmi Trivedi27-Sep-12 22:00
GeneralRe: My vote of 5 Pin
Anumeha Shukla27-Sep-12 22:34
memberAnumeha Shukla27-Sep-12 22:34
GeneralMy vote of 5 Pin
prishita pandey5-Sep-12 6:05
memberprishita pandey5-Sep-12 6:05
GeneralRe: My vote of 5 Pin
Anumeha Shukla5-Sep-12 8:20
memberAnumeha Shukla5-Sep-12 8:20
GeneralMy vote of 5 Pin
prishita pandey5-Sep-12 5:57
memberprishita pandey5-Sep-12 5:57
GeneralMy vote of 5 Pin
Paahi28-Aug-12 23:25
memberPaahi28-Aug-12 23:25
GeneralRe: My vote of 5 Pin
Anumeha Shukla2-Sep-12 9:55
memberAnumeha Shukla2-Sep-12 9:55
Questionhow to use created custom data reference Pin
Member 936661425-Aug-12 8:51
memberMember 936661425-Aug-12 8:51
AnswerRe: how to use created custom data reference Pin
Anumeha Shukla26-Aug-12 19:45
memberAnumeha Shukla26-Aug-12 19:45
GeneralMy vote of 5 Pin
Christian Amado22-Aug-12 6:24
memberChristian Amado22-Aug-12 6:24
GeneralRe: My vote of 5 Pin
Anumeha Shukla22-Aug-12 8:09
memberAnumeha Shukla22-Aug-12 8:09
Generalnice article Pin
khan mohd faizan17-Aug-12 1:19
memberkhan mohd faizan17-Aug-12 1:19
GeneralRe: nice article Pin
Anumeha Shukla17-Aug-12 2:39
memberAnumeha Shukla17-Aug-12 2:39
Generalvery nice article bis :) Pin
prank_ster15-Aug-12 21:18
memberprank_ster15-Aug-12 21:18
GeneralRe: very nice article bis :) Pin
Anumeha Shukla15-Aug-12 21:22
memberAnumeha Shukla15-Aug-12 21:22
QuestionMy vote of 5 Pin
HiteshSharma14-Aug-12 10:12
memberHiteshSharma14-Aug-12 10:12
AnswerRe: My vote of 5 Pin
Anumeha Shukla16-Aug-12 2:33
memberAnumeha Shukla16-Aug-12 2:33
GeneralMy vote of 5 Pin
ThatsAlok13-Aug-12 22:18
memberThatsAlok13-Aug-12 22:18
GeneralRe: My vote of 5 Pin
Anumeha Shukla13-Aug-12 23:38
memberAnumeha Shukla13-Aug-12 23:38

General General    News News    Suggestion Suggestion    Question Question    Bug Bug    Answer Answer    Joke Joke    Praise Praise    Rant Rant    Admin Admin

Use Ctrl+Left/Right to switch messages, Ctrl+Up/Down to switch threads, Ctrl+Shift+Left/Right to switch pages.

Permalink | Advertise | Privacy | Terms of Use | Mobile
Web02 | 2.8.180111.1 | Last Updated 22 Aug 2012
Article Copyright 2012 by Anumeha Shukla
Everything else Copyright © CodeProject, 1999-2018
Layout: fixed | fluid
