Multiple Database Connection File Manager

Rate me:
Please Sign up or sign in to vote.
3.40/5 (3 votes)
31 Jul 2008CPOL
Utility to manage multiple DB connection strings for an application.


This application is intended to be integrated with an existing program, or become the shell of a new project that will utilize multiple database connections to Oracle and SQL Server database platforms.


Many applications use a database as a backend source of data. In doing so, connecting to multiple databases is required, especially from a QA perspective. Customers also enjoy the ability to edit connections without having to edit XML or text configuration files due to the complexity of the files and lack of technical knowledge. I created this originally as a shell for a Data Generation utility for a software package I am testing. I ended up using an existing DAL that we had, so I shelved this. I decided that the effort I put into may save someone else time, so here it is.

Using the code

The code is straightforward in most areas, and is documented pretty well. I will say the XML / XPath portion is a little more complex. I want to thank Michael Chao as I used one of his programs from CodeProject as a starting base for editing the XML connection file. His article can be found here:

Here is a snippet for creating a new connection (string):

// Here is an example of the Create Connection Method using XML
private void CreateConnectionInXML()
    string FileNameNew = DataConnection.ConnectionFileLocation;
    // Determine Selected DB Type and set variable to write to xml
    int dbtypenew;
    if (comboBoxDBType.SelectedIndex == 0)
        dbtypenew = 1;
        dbtypenew = 2;

        // Create an XML Reader, Open Document, Read, Close Reader
        XmlTextReader reader = new XmlTextReader(FileNameNew);
        XmlDocument docnew = new XmlDocument();
        XmlNode currNode;

        XmlDocumentFragment docFrag = docnew.CreateDocumentFragment();
        docFrag.InnerXml = "<connection>" +
            "<title>" + textBoxConnTitle.Text + "</title>" +
            "<server>" + textBoxServerName.Text + "</server>" +
            "<database>" + textBoxDatabaseName.Text + "</database>" +
            "<dbtype>" + dbtypenew  + "</dbtype>" +
            "<username>" + textBoxUsername.Text + "</username>" +
            "<password>" + textBoxPassword.Text + "</password>" +
        currNode = docnew.DocumentElement;
        currNode.InsertAfter(docFrag, currNode.LastChild);
        //save the output to a file
        this.DialogResult = DialogResult.OK;
    catch (Exception ex)
        MessageBox.Show("Exception: {0}", ex.ToString());
        this.DialogResult = DialogResult.Cancel;

This program was written with Visual Studio 2008 for .NET 3.5. I am sure it could be modified to work with lower versions.

Here are some screenshots:

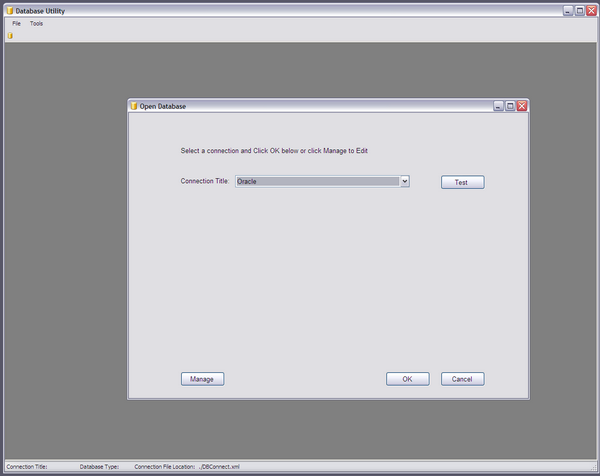

Main Form

Image 1

Edit Form

Image 2

Points of interest

I will say this is my very first coding project outside of school. I am still working on the main tool I am creating, and wish I could show it here, but cannot for business reasons. I hope this helps someone, and welcome any feedback as I am just getting started in the software development field.


  • Version 1.0.
