CSplitURL - split a URL into component parts

Rate this:
4.17 (9 votes)
Please Sign up or sign in to vote.
4.17 (9 votes)
10 Nov 2002
Wrapper class for the WinInet InternetCrackUrl function

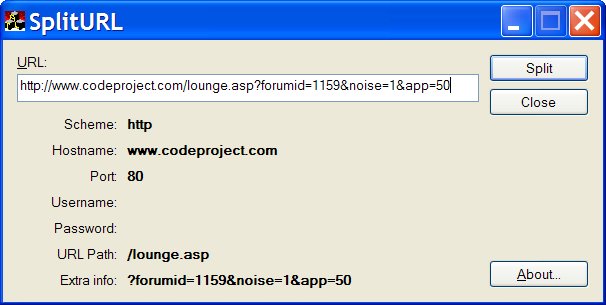

Sample Image - SplitURL.jpg


Recently I needed some code that would split a URL into component parts (scheme, host, folder, etc.) and I came across a WinInet function called InternetCrackUrl which does the job. The function itself is fairly straighforward, but I thought the demo supplied on the MSDN might be a tad confusing for new users - so I have created CSplitURL to wrap the call.

This class is not going to win any prizes, but it is very easy to use - first include the header:

#include "url.h"

Then, to use the class, simply declare a CSplitURL object, passing the URL to split, e.g.:

CSplitURL url(_T(""));

Once you have created a CSplitURL, you can access the various URL components using the following methods:

  • GetScheme
  • GetPort
  • GetSchemeName
  • GetHostName
  • GetUserName
  • GetPassword
  • GetURLPath
  • GetExtraInfo

All pretty self-explanatory. Note that using this class in your application will create a dependency on WININET.DLL, which hopefully won't be a problem. Note also that this class can be used with any framework that includes a CString class - including MFC, WTL and ATL7.


// Implementation of the CURLComponents and CSplitURL classes.

#pragma once
#pragma comment(lib, "wininet.lib")

#include "wininet.h"

// Class to wrap the Win32 URL_COMPONENTS structure
class CURLComponents : public URL_COMPONENTS
        memset(this, 0, sizeof(URL_COMPONENTS));
        dwStructSize = sizeof(URL_COMPONENTS);

// Class used to split a URL into component parts.
// Note: Uses WININET InternetCrackUrl function.
class CSplitURL
    CString m_strScheme;
    INTERNET_SCHEME m_nScheme;
    CString m_strHostName;
    INTERNET_PORT m_nPort;
    CString m_strUserName;
    CString m_strPassword;
    CString m_strURLPath;
    CString m_strExtraInfo;
        : m_nScheme(INTERNET_SCHEME_DEFAULT)
        , m_nPort(0)
    CSplitURL(LPCTSTR lpsz)
        : m_nScheme(INTERNET_SCHEME_DEFAULT)
        , m_nPort(0)


    // Split a URL into component parts
    bool Split(LPCTSTR lpsz)
        // Be defensive
        ATLASSERT(lpsz != NULL && *lpsz != '\0');
        // Get the URL length
        DWORD dwLength = _tcslen(lpsz);

        CURLComponents url;
        // Fill structure
        url.lpszScheme = m_strScheme.GetBuffer(dwLength);
        url.dwSchemeLength = dwLength;
        url.lpszHostName = m_strHostName.GetBuffer(dwLength);
        url.dwHostNameLength = dwLength;
        url.lpszUserName = m_strUserName.GetBuffer(dwLength);
        url.dwUserNameLength = dwLength;
        url.lpszPassword = m_strPassword.GetBuffer(dwLength);
        url.dwPasswordLength = dwLength;
        url.lpszUrlPath = m_strURLPath.GetBuffer(dwLength);
        url.dwUrlPathLength = dwLength;
        url.lpszExtraInfo = m_strExtraInfo.GetBuffer(dwLength);
        url.dwExtraInfoLength = dwLength;
        // Split
        bool bRet = InternetCrackUrl(lpsz, 0, 0, &url) != FALSE;
        // Release buffers
        // Get the scheme/port
        m_nScheme = url.nScheme;
        m_nPort = url.nPort;
        // Done
        return bRet;

    // Get the scheme number
    inline INTERNET_SCHEME GetScheme(void) const { return m_nScheme; }
    // Get the port number
    inline INTERNET_PORT GetPort(void) const { return m_nPort; }
    // Get the scheme name
    inline LPCTSTR GetSchemeName(void) const { return m_strScheme; }
    // Get the host name
    inline LPCTSTR GetHostName(void) const { return m_strHostName; }
    // Get the user name
    inline LPCTSTR GetUserName(void) const { return m_strUserName; }
    // Get the password
    inline LPCTSTR GetPassword(void) const { return m_strPassword; }
    // Get the URL path
    inline LPCTSTR GetURLPath(void) const { return m_strURLPath; }
    // Get the extra info
    inline LPCTSTR GetExtraInfo(void) const { return m_strExtraInfo; }


This article has no explicit license attached to it but may contain usage terms in the article text or the download files themselves. If in doubt please contact the author via the discussion board below.

A list of licenses authors might use can be found here
