tCNode template: An indexed multi-node data tree using STL containers

Introduction

In this article, I'm going to present tCNode template. It is a template class that allows programmers to organize data in memory in an indexed multi-node data tree. Internally, it uses STL containers like map and vector. It is portable. That means it will compile in Windows and Unix systems. Sample apps were tested on Windows, Linux and MacOS.

At end of this article, you will find summarized syntax and description of all methods available in tCNode template.

Let us start seeing how to apply tCNode template by using real cases.

Introduction to tCNode
Multi-Thread and Synchronization Tip
Do Not Copy it, Reference it
Keys, Addresses and Shortcuts
Data Sorters: Sorting Values Regardless Keys
Explaining Article Sample
tCNode Reference
Conclusion

1. Introduction to tCNode

tCNode template allows you to handle data in a multi-node data tree. Each node can have sub nodes and those sub nodes are indexed by a key.

The graphical representation and main properties of a node is shown in Figure 1:

Figure 1: tCNode graphical representation

Let us come straight to the point. The following piece of code show the basics of how to use tCNode template. Notice I've coded by using VS2010. Of course, tCNode is portable to any UNIX flavor (Linux, for example).

#include "stdafx.h" // REMOVE IF COMPILE UNDER LINUX/UNIX

// INCLUDE THIS!
#include "tcnode.h"

#ifdef _DEBUG           // REMOVE IF COMPILE UNDER LINUX/UNIX
#define new DEBUG_NEW   // REMOVE IF COMPILE UNDER LINUX/UNIX
#endif                  // REMOVE IF COMPILE UNDER LINUX/UNIX

void print_tree(int &_data, std::string &_key, long _deep);

// FIRST, LET US CREATE THE DATA TYPES
//             NAME   DATA  KEY
TNODE_SET_TYPE(Basic, int,  std::string)

// Three new types are created
// TBasic      : tCNode<int, std::string>
// TBasicRef   : tCNode<int, std::string> &
// TBasicPtr   : tCNode<int, std::string> *
// TBasicNodes : tCNode<int, std::string>::tcnode_subnodes
int main(int _argc, char* _argv[])
{
   TBasic root;

   root.setDataAndKey(0, "root");
   root.createNode(1, "A");
   root.createNode(3, "C");
   root.createNode(2, "B");

   TBasicRef sub1 = root.createNode(4, "D");
   sub1.createNode(10, "A");
   sub1.createNode(20, "B");

   TBasicRef sub2 = sub1.createNode(30, "C");
   sub2.createNode(100, "A");
   sub2.createNode(200, "B");
   sub2.createNode(300, "C");

   root.createNode(5, "E");
   root.createNode(6, "F");

   root.transverse(print_tree);

   std::cout << "Press enter to continue ...";
   std::cin.get();

   return  0;
}

void print_tree(int &_data, std::string &_key, long _deep)
{
   int ident =_deep;

   if ( _deep )
      std::cout << "  ";

   while(ident--)
      std::cout << "   ";

   std::cout <<  _key << "=[" << _data << "]\n";
}

Compile and run the sample. You will get the output shown in Figure 2. Also it is described type declaration and the use of TNODE_SET_TYPE.

Figure 2: tCNode type definition

To run sample on Linux, just comment or remove indicated lines and build exec with g++:
```
g++ -o sample sample.cpp
```
Did you notice transverse function? It is called from root instance. Change the line to:
```
sub1.transverse(print_tree);
```
Notice keys like "A" and "B" appear at three different levels. As stated before: keys are unique per level.

2. Multi-Thread and Synchronization Tip

tCNode template is not thread safe. You should create synchronization routines to guarantee data integrity when a tCNode instance is a shared resource. That is not a problem at all. Operating Systems offer support APIs to synchronization (Win32 on Windows, POSIX on UNIX). For example, on Windows OS:

#include "tcnode.h"
using namespace std;

TNODE_SET_TYPE(Node, string, string)

CRITICAL_SECTION CriticalSection;
TNode allnodes;

int main( void )
{
    ...
}

DWORD WINAPI ThreadProc( LPVOID lpParameter )
{
    ...

    // Request ownership of the critical section.
    EnterCriticalSection(&CriticalSection);

    allnodes.createNode("John", "Name")

    // Release ownership of the critical section.
    LeaveCriticalSection(&CriticalSection);

    ...
    return 1;
}

3. Do Not Copy it, Reference it

For most C++ programmers, the next lines seem too obvious but for those who are new to C++ programming or even C programmers who are learning C++ references, it may be a trap!

The following code shows clearly what C++ reference is:

#include <stdlib.h>
#include <iostream>

using namespace std;

int main(int _argc, char *_argv[])
{

        int X = 10;
        int Y = 99;

        int &A = X; // A became an alias of X

        A = Y; // In fact, X = Y

        cout << "X=" << X << "   Y=" << Y << "\n";

        return 0;
}

Compile and test it. You will see X and A are the same variable.

Now, let us see a complete example that shows the right way to access data into a specific node and change it. Of course, "right way" depends upon what you want to achieve.

In the following sample, we have a tree with 3 levels where key is a std::string and data is a typedef struct (tCPERSON). tCPERSON instance holds basic information like full name, age and gender. It has meaning only in the last level (level 2). Level 0 is the root, level 1 is the occupation and nodes in level 2 hold personal information.

The goal is change age information of two people: Sarah Neutron and Mark Mandarin.

    <a name="#T001">// INCLUDE THIS!
#include "tcnode.h"

using namespace std;

typedef struct _CPERSON_
{
   string name;
   int    age;
   string gender;

   _CPERSON_() : name(""), age(0), gender("") { }

   _CPERSON_(string _name, int _age, string _gender) : name(_name), age(_age), gender(_gender) { }

} tCPERSON;

void print_tree(tCPERSON &_data, string &_key, long _deep);

TNODE_SET_TYPE(Person, tCPERSON,  string)

int main(int _argc, char* _argv[])
{
   TPerson rnode;  // deep/level 0

   // DATA DOES NOT MATTER IN THIS LEVEL
   rnode.setDataAndKey(tCPERSON(), "ROOT");
   // deep/level 1
   TPersonRef ref_man = rnode.createNode(tCPERSON(), "MANAGERS");

   // deep/level 2
   ref_man.createNode(tCPERSON("John Nobody", 45, "MALE"), "M0001");
   ref_man.createNode(tCPERSON("Billy Something", 51, "MALE"), "M0002");
   ref_man.createNode(tCPERSON("Mary Hidden", 38, "FEMALE"), "M0003");

   // deep/level 1
   TPersonRef ref_emp = rnode.createNode(tCPERSON(), "EMPLOYEES");

   // deep/level 2
   ref_emp.createNode(tCPERSON("Ed Storm", 28, "MALE"), "E0001");
   ref_emp.createNode(tCPERSON("Sarah Neutron", 33, "FEMALE"), "E0002");
   ref_emp.createNode(tCPERSON("Peter Pandora", 38, "MALE"), "E0003");
   ref_emp.createNode(tCPERSON("Mark Mandarin", 29, "MALE"), "E0004");

   // LET'S PRINT THE TREE
   rnode.transverse(print_tree);

   std::cout << "Press enter to continue ...";
   std::cin.get();

   // LET'S CHANGE THE AGE OF SARAH NEUTRON
   TPersonPtr person_ptr = rnode.getFirstSubNodeByKey("E0002");
   if ( person_ptr == NULL )
      exit(-1); // OPS! SHOULD NOT HAPPEN

   // LET'S USE REFERENCES!
   TPersonRef person_ref = TNODE_PTR_TO_REF(person_ptr); // POINTER TO REFERENCE
   person_ref.getData().age = 34;

   rnode.transverse(print_tree);

   std::cout << "Press enter to continue ...";
   std::cin.get();

   // WRONG WAY! UNLESS YOU WANT A COPY
   person_ptr = rnode.getFirstSubNodeByKey("E0004");
   if ( person_ptr == NULL )
      exit(-1); // OPS! SHOULD NOT HAPPEN
   TPerson person_cpy = TNODE_PTR_TO_REF(person_ptr); // THIS IS A COPY!
   person_cpy.getData().age = 44;

   // IN THE ORIGINAL TREE DATA WAS NOT CHANGED
   // person_cpy retains a copy of node returned by getFirstSubNodeByKey
   rnode.transverse(print_tree);

   std::cout << "Press enter to continue ...";
   std::cin.get();

   return  0;
}

void print_tree(tCPERSON &_data, string &_key, long _deep)
{
   switch(_deep)
   {
      case 0:
         cout << "*** PEOPLE LIST\n";
         break;
      case 1:
         cout << "\t" << _key << ":\n";
         break;
      case 2:
         cout << "\t\tCode  : " << _key << "\n" ;
         cout << "\t\tName  : " << _data.name << "\n";
         cout << "\t\tAge   : " << _data.age << "\n";
         cout << "\t\tGender: " << _data.gender << "\n\n";
         break;
      default:
         break;
   }
}

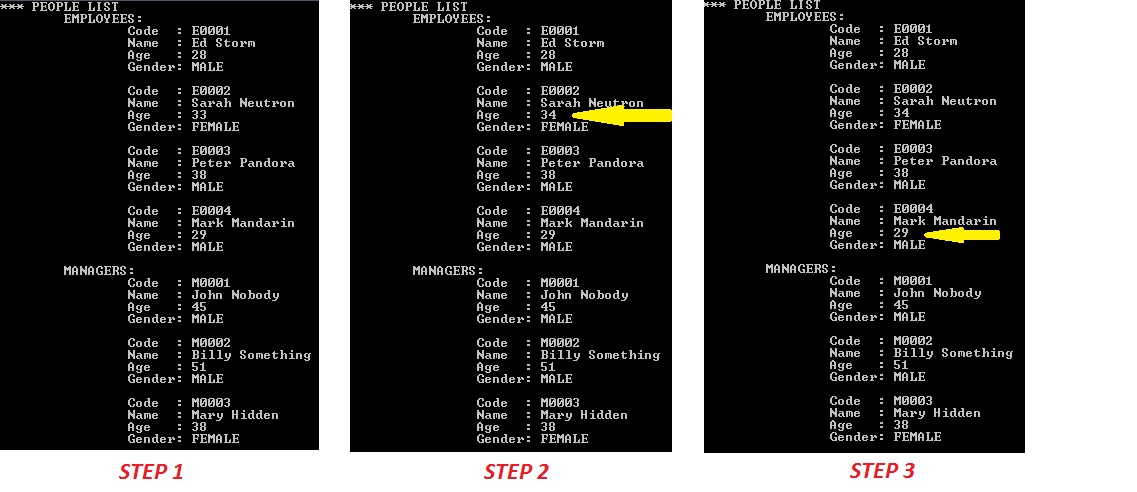

See the result:

See in STEP 2, Sarah has her age really changed by referencing the original data:

 // LET US CHANGE THE AGE OF SARAH NEUTRON
   TPersonPtr person_ptr = rnode.getFirstSubNodeByKey("E0002");
   if ( person_ptr == NULL )
      exit(-1); // OPS! SHOULD NOT HAPPEN

   // LET US USE REFERENCES!
   TPersonRef person_ref = TNODE_PTR_TO_REF(person_ptr); // POINTER TO REFERENCE
   person_ref.getData().age = 34;

Mark, on the other hand, got his age changed too but on a copy of his node! Nothing happened on the original data tree.

4. Keys, Addresses and Shortcuts

A specific node in tCNode data tree can be directly accessed by 3 ways:

By a Key at parent level (getNodeByKey, getFirstSubNodeByKey)

Recall sample code at previous topic and let us see the first way to access a node by its key:

The following piece of code shows the use of getFirstSubNodeByKey function. Notice it is being called from root node and returns a pointer to a node at 2^nd level. We know a key is unique in its level but in this case there is only one key with value E0002 on entire tree. Root node is level 0 but this sample will work if getFirstSubNodeByKey was called from level 1 because it walks down the tree from node it is being called to last level.

        // LET'S CHANGE THE AGE OF SARAH NEUTRON
        TPersonPtr person_ptr = rnode.getFirstSubNodeByKey("E0002");
        if ( person_ptr == NULL )
            exit(-1); // OPS! SHOULD NOT HAPPEN

However, if you want to point to a child-node of the current node, you will prefer getNodeByKey.

By an Address from any node (getNodeByFullAddress, getNodeFullAddress)

An address is a full path from root to target node. It is represented by a vector of keys. An example:

  // LET'S CHANGE THE AGE OF SARAH NEUTRON
   TPersonPtr person_ptr = rnode.getFirstSubNodeByKey("E0002");
   if ( person_ptr == NULL )
      exit(-1); // OPS! SHOULD NOT HAPPEN

// GET FULL PATH
   std::vector<TPerson::tcnode_key> vkeys;
   person_ptr->getNodeFullAddress(vkeys);

   std::cout << "\n\nLEVEL\t KEY\n";

   for ( int x = 0; x < vkeys.size(); x++ )
      std::cout << "  " << x << "\t " << vkeys[x] << "\n";

After calling getNodeFullAddress, a vector containing all keys that makes the full path is returned:

In a real situation, vkeys can be saved and used later to get the same node by using getNodeByFullAddress.

By a Shortcut from root node (addShortcut, getNodeByShortcut)

A shortcut is a string that allows fast access to one specific node. An example:

   // LET'S CHANGE THE AGE OF SARAH NEUTRON
   TPersonPtr person_ptr = rnode.getFirstSubNodeByKey("E0002");
   if ( person_ptr == NULL )
      exit(-1); // OPS! SHOULD NOT HAPPEN

   TPersonRef pref = TNODE_PTR_TO_REF(person_ptr);

   std::vector<tperson::tcnode_key> xkeys;
   pref.getNodeFullAddress(xkeys);

   pref.addShortcut("SARAH", xkeys);

   // LATER ...
   TPersonPtr psarah = rnode.getNodeByShortcut("SARAH");
   if ( psarah == NULL )
      exit(-1);

   std::cout << "\nNAME: " << psarah->getData().name << "\n";

You create a shortcut by calling addShortcut and passing a string plus the full address of node. Notice shortcuts are not related to current node but the entire tree. Shortcut structured is kept in root node to be accessible independent upon node application is point to. Thus a second call to addShortcut from a different node passing the same string will replace the first one.

5. Data Sorters: Sorting Values Regardless Keys

Data Sorter is a mechanism where you can create rules to sort data in nodes regardless of the keys. The functions to handle data sorter operation are addDataSorter, getDataSorterByName and selectDataEqualsTo. You can create as many data sorters you want. Unlike shortcuts, a single node can keep its own data sorters list.

Let us see a complete sample:

 // INCLUDE THIS!
#include "tcnode.h"

using namespace std;

typedef struct _CPERSON_
{
   string name;
   int    age;
   string gender;

   _CPERSON_() : name(""), age(0), gender("") { }

   _CPERSON_(string _name, int _age, string _gender) : name(_name), age(_age), gender(_gender) { }

} tCPERSON;

TNODE_SET_TYPE(Person, tCPERSON,  string)

// DATA SORTER TO GROUP FEMALES
bool females_sorter(TPersonPtr _ref1, TPersonPtr _ref2)
{
   TPersonRef sub1 = TNODE_PTR_TO_REF(_ref1);
   TPersonRef sub2 = TNODE_PTR_TO_REF(_ref2);

   int res1 =  sub1.getData().gender == "FEMALE" ? 1 : 0;
   int res2 =  sub2.getData().gender == "FEMALE" ? 1 : 0;

   if ( res1 == res2 == 1 )
      return (sub1.getData().name < sub2.getData().name);

   return (res1 > res2);
}

// DATA SORTER TO GROUP MALES IN EMPLOYEES NODE
bool males_employees_sorter(TPersonPtr _ref1, TPersonPtr _ref2)
{
   TPersonRef sub1 = TNODE_PTR_TO_REF(_ref1);
   TPersonRef sub2 = TNODE_PTR_TO_REF(_ref2);

   int res1 =  sub1.getData().gender == "MALE" ? 1 : 0;
   int res2 =  sub2.getData().gender == "MALE" ? 1 : 0;

   if ( res1 == res2 == 1 )
      return (sub1.getData().name < sub2.getData().name);

   return (res1 > res2);
}

// DATA SORTER TO GRUPO AGES FROM OLDER TO YOUNGER
bool ages_sorter(TPersonPtr _ref1, TPersonPtr _ref2)
{
   TPersonRef sub1 = TNODE_PTR_TO_REF(_ref1);
   TPersonRef sub2 = TNODE_PTR_TO_REF(_ref2);

   return (sub1.getData().age > sub2.getData().age);
}

int main(int _argc, char* _argv[])
{
   TPerson rnode;  // deep/level 0

   // DATA DOES NOT MATTER IN THIS LEVEL
   rnode.setDataAndKey(tCPERSON(), "ROOT");
   // deep/level 1
   TPersonRef ref_man = rnode.createNode(tCPERSON(), "MANAGERS");

   // deep/level 2
   TPersonRef reftoJohn = ref_man.createNode(tCPERSON("John Nobody", 45, "MALE"), "M0001");
   std::vector<std::string> keysx;
   reftoJohn.getNodeFullAddress(keysx);
   reftoJohn.addShortcut("POINTER-TO-JOHN", keysx);

   ref_man.createNode(tCPERSON("Billy Something", 51, "MALE"), "M0002");
   ref_man.createNode(tCPERSON("Mary Hidden", 38, "FEMALE"), "M0003");
   ref_man.createNode(tCPERSON("Eva Unah", 38, "FEMALE"), "M0004");

   // deep/level 1
   TPersonRef ref_emp = rnode.createNode(tCPERSON(), "EMPLOYEES");

   // deep/level 2
   ref_emp.createNode(tCPERSON("Ed Storm", 28, "MALE"), "E0001");
   ref_emp.createNode(tCPERSON("Sarah Neutron", 33, "FEMALE"), "E0002");
   ref_emp.createNode(tCPERSON("Peter Pandora", 38, "MALE"), "E0003");
   ref_emp.createNode(tCPERSON("Mark Mandarin", 29, "MALE"), "E0004");

   //  LET'S create females data sorter from root
   rnode.addDataSorter("FEMALES", females_sorter, TRUE);

   // LET'S create males employees data sorter from EMPLOYEES NODE
   TPersonPtr pemployees = rnode.getFirstSubNodeByKey("EMPLOYEES");
   pemployees->addDataSorter("MALE_EMPLOYESS", males_employees_sorter, TRUE);

   // LET'S create AGE data sorter to get all ages from older to younger
   rnode.addDataSorter("AGES", ages_sorter, TRUE);

   // LET'S run data sorter to group/sort data
   // It s usual to run refreshDataSorter after tree has been filled or after any change
   pemployees->refreshDataSorters();
   rnode.refreshDataSorters();

   // SHOW RESULTS
   BOOL bValid = FALSE;
   std::cout << "*** FEMALES LIST (ALL)\n\n";
   std::vector<TPersonPtr> &fem = rnode.getDataSorterByName("FEMALES", bValid);
   for ( size_t x = 0; x < fem.size(); x++ )
      if ( fem[x]->getData().gender == "FEMALE" )
         std::cout << fem[x]->getData().name << "\n";

   std::cout << "\n\n*** MALES LIST (EMPLOYEES NODE)\n\n";
   pemployees = rnode.getFirstSubNodeByKey("EMPLOYEES");
   std::vector<TPersonPtr> &mal = pemployees->getDataSorterByName("MALE_EMPLOYESS", bValid);
   for ( size_t x = 0; x < mal.size(); x++ )
      if ( mal[x]->getData().gender == "MALE" )
         std::cout << mal[x]->getData().name << "\n";

   std::cout << "\n\n*** AGES FROM OLDER TO YOUNGER\n\n";
   std::vector<TPersonPtr> &age = rnode.getDataSorterByName("AGES", bValid);
   for ( size_t x = 0; x < age.size(); x++ )
      if ( age[x]->getData().age > 0 )
         std::cout << age[x]->getData().name << "\t\t" << age[x]->getData().age << " years old\n";

   std::cout << "\n\n";

   system("pause");

   return  0;
}

In the sample, three data sorters are created: The first to group only female employees independent upon job; The second to group only male in EMPLOYEES node; and the last data sorter sorts everyone by age. The expected output:

6. Explaining Article Sample

Demo application in this tutorial shows a practical use to tCNode. The demo app named dirreader does exactly what the name suggests.

Given a root path, dirreader will transverse all sub-directories and contents saving each object (file or directory) data as nodes of tCNode. The syntax is as follows:

dirreader <path>   [--print-tree]<path> </path>

You have both versions to Windows and Unix. Unix version was tested on Linux and MacOS.

For example:

dirreader C:\Windows or ./dirreader /home will read recursively all objects in those paths and in the end will execute 2 data sorters: first shows top 10 largest files and second shows top 10 longest file names.

--print-tree option bypasses data sorter execution and print all tree to standard output. In this case, if you want to log all tree, you should use:

./dirreader /home --print-tree >result.txt

The Windows version is both VS2005 and VS2010 projects. Unix/Linux version can be compiled:

g++ -o dirreader dirreader.cpp

tcnode.h is the same source independent upon OS. In fact, you can try to use it on Android or iOS projects. There is no reason not to work!

7. tCNode Reference

This section is a quick reference to methods in tCNode template class. It is recommended you read the entire article before referring to this section.

Construction

Recall figure 2 - tCNode type definition and you clearly see you do not have to use the original template declaration to create a data-type. In fact, the macro TNODE_SET_TYPE is by far the best way.

The macro creates some types you can use in your code. Thus, if you want a type DataTree where int type as key and char * type as data you should use this way:

TNODE_SET_TYPE(DataTree, char *, int)

Automatically the following types are created:

TDataTree (tCNode<char *,int>)
TDataTreeRef (tCNode<char *,int>::tcnode_ref)
TDataTreePtr (tCNode<char *,int>::tcnode_ptr) and
TDataTreeNodes (tCNode<char *,int>::tcnode_subnodes)

void addDataSorter(_IN std::string _name, _IN _SORTER _receiver, _IN BOOL _recursive = FALSE)

Create a new data sorter in current node. A data sorter can include all tree nodes below it (_recursive = TRUE) or just the child nodes. Data sorter are executed in current node when refreshDataSorters is called.

Parameters

_name [in, required]: A string that identifies a single data sorter
_receiver [in, required]: A sort function pointer with prototype bool function(tcnode_ptr _p1, tcnode_ptr _p2)
_recursive [in, optional]: Set TRUE to include all nodes and subnodes below current node.

Return Value

None

tcnode_ref addShortcut(_IN std::string _label, _IN std::vector<tcnode_key> &_parm)

Create a string shortcut to a node in the tree.

Parameters

_label [in, required]: A string that identifies the shortcut
_parm [in, required]: A vector that contains the full address of the node described by an array of keys

Return Value

A reference to the current node.

tcnode_ref createNode(_IN tcnode_data _data, _IN tcnode_key _key)

Create a new child node indexed by _key. If node already exists, the node data is replaced by new _data.

Parameters

_data [in, required]: The data itself defined at template declaration
_key [in, required]: The key itself defined at template declaration

Return Value

A reference to new child node or the existing one if the key already exists.

std::vector<tcnode_ptr> &getAllSubNodesByKey(_OUT std::vector<tcnode_ptr> &_parm, _IN tcnode_key _key)

Select all subnodes from current node where _key matches. It is recursive.

Parameters

_parm [out, required]: Pointers to nodes that matches _key
_key [in, required]: The search key

Return Value

_parm is returned filled with pointers to nodes that matches _key. If _key not found, _parm is returned as was passed.

long getCount(void)

Count all subnodes from current node recursively.

Parameters

None

Return Value

Total subnodes

tcnode_data &getData(void)

Get a reference to DATA in current node.

Parameters

None

Return Value

Reference to DATA

std::vector<tcnode_ptr> &getDataSorterByName(_IN std::string _name, _OUT BOOL &_is_valid)

Return a reference to full data sorter data, the complete array of pointers. _is_valid must be tested to know if data sorter is valid.

Parameters

_name [in, required]: Data sorter name
_is_valid [out, required]: TRUE if data sorter returned is valid otherwise FALSE

Return Value

A reference to data sorter. An array of pointers to nodes. TNODE_PTR_TO_REF converts PTR to REF.

long getDeep(void)

Get current node deep or level. root has deep = 0.

Parameters

None

Return Value

Long integer representing current deep

tcnode_ptr getFirstSubNodeByKey(_IN tcnode_key _key)

Return a node given a KEY. The search starts in current node and it is recursive.

Parameters

_key [in, required]: key to execute the search

Return Value

A pointer to subnode if found. NULL if not found. Application can use TNODE_PTR_TO_REF macro to convert pointer into reference.

long getId(void)

Get a number that is unique to identify a node.

Parameters

None

Return Value

Long integer representing node identifier

tcnode_key &getKey(void)

Get a reference to KEY in current node.

Parameters

None

Return Value

Reference to KEY

std::vector<tcnode_ptr> &getNextDataSorterInfo(_IN BOOL _begin, _OUT std::string &_name, _OUT BOOL &_recursive, _OUT _SORTER &_sortfunc, _OUT BOOL &_is_valid)

List one by one data sorters in a node.

Parameters

_begin[in, required]: TRUE indicates first data sort. FALSE list next one
_name[out, required]: the data sorter name
_recursive[out, required]: TRUE indicates data sorter was set as recursive
_sortFunc[out, required]: Sort function run by data sort. A variable to be passed must be declared as T<type name>::SortPredCall
_is_valid[out, required]: TRUE indicates data returned is valid. Application should test _is_valid to know when data sort list finished

Return Value

A reference to data sorter data itself. An array of pointers to nodes. TNODE_PTR_TO_REF converts PTR to REF.

tcnode_ptr getNodeByFullAddress(_IN std::vector<tcnode_key> &_parm)

Return a node given an address. See getNodeFullAddress to know how to get a node address.

Parameters

_parm [in, required]: array of nodes representing an address

Return Value

A pointer to subnode if found. NULL if not found. If you want, you can use TNODE_PTR_TO_REF macro to convert pointer into reference.

tcnode_ptr getNodeByKey(_IN tcnode_key _key)

Return the child node given a KEY. It is not recursive, only child nodes level is searched. The recursive version is getFirstSubNodeByKey.

Parameters

_key [in, required]: key to execute the search

Return Value

A pointer to subnode if found. NULL if not found. If you want, you can use TNODE_PTR_TO_REF macro to convert pointer into reference.

tcnode_ptr getNodeByShortcut(_IN std::string _parm)

Return a node given a shortcut name.

Parameters

_parm [in, required]: the shortcut name

Return Value

A pointer to subnode if found. NULL if not found. If you want, you can use TNODE_PTR_TO_REF macro to convert pointer into reference.

std::vector<tcnode_key> &getNodeFullAddress(_OUT std::vector<tcnode_key> &_parm)

Get full address of current node representing by an array of keys. You can use returned array to create shortcuts.

Parameters

_parm [out, required]: receives array of keys.

Return Value

A reference to _parm.

tcnode_ref getParent(void)

Get a reference to parent node.

Parameters

None

Return Value

Reference to parent node. root returns a reference to itself.

tcnode_ref getRoot(void)

Get a reference to root node.

Parameters

None

Return Value

Reference to root node

tcnode_shortcuts &getShortcuts(void)

Get a map containing all list of defined shortcuts. The type tcnode_shorcuts is a typedef of:

std::map<std::string, std::vector<tcnode_key> >

Shortcuts are not related to a single node but all tree. Thus, you can call this function from any part or level of tree.

Parameters

None

Return Value

A reference to tcnode_shortcuts

tcnode_subnodes &getSubNodes(void)

Return all child nodes from current node. tcnode_subnodes is a map<key, tCNode>.

Parameters

None

Return Value

tcnode_subnodes that contain child nodes of current node

BOOL hasSubNodes(void)

Return TRUE if node has subnodes (child nodes).

Parameters

None

Return Value

TRUE if node has subnodes or FALSE if it has not

bool isRoot(void)

Return TRUE if node is root node.

Parameters

None

Return Value

TRUE if node is root node or FALSE if it is not

void refreshDataSorters(void)

Run all data sorters defined in the current node.

Parameters

None

Return Value

None

bool removeSubNodeByKey(_IN tcnode_key _key)

Find a child node that matches key and remove it. If application has data sorters defined, it must call refreshDataSorters to update internal references.

Parameters

_key [in, required]: key to search specific node

Return Value

TRUE if child node found and removed. FALSE otherwise

tcnode_ref removeSubNodes(void)

Remove ALL child nodes of current node recursively. If application has data sorters defined, it must call refreshDataSorters to update internal references.

Parameters

None

Return Value

None

std::vector<tcnode_ptr> &selectDataEqualsTo(_IN std::string _name, _OUT std::vector<tcnode_ptr> &_parm, _IN const tcnode_data _value)

Select data sorter nodes that matches _value. You must pass an empty std::vector<tcnode_ptr> to be filled with result.

Parameters

_name [in, required]: data sorter name to select nodes
_parm [out, required]: array filled with results
_value [in, required]: value to be searched

Return Value

A reference to _parm. An array of pointers to nodes. TNODE_PTR_TO_REF converts PTR to REF.

std::vector<tcnode_ptr> &selectDataEqualsTo(_IN std::string _name, _OUT std::vector<tcnode_ptr> &_parm, _IN const std::vector<tcnode_data> &_vals)

Select data sorter nodes that matches _vals array. You must pass an empty std::vector<tcnode_ptr> to be filled with result.

Parameters

_name [in, required]: data sorter name to select nodes.
_parm [out, required]: array filled with results.
_vals [in, required]: array of values to be searched.

Return Value

A reference to _parm. An array of pointers to nodes. TNODE_PTR_TO_REF converts PTR to REF.

tcnode_ref setData(_IN tcnode_data _data)

Change the DATA in current node.

Parameters

_data [in, required]: data to replace current one

Return Value

A reference to current node

tcnode_ref setDataAndKey(_IN tcnode_data _data, _IN tcnode_key _key)

Change the DATA and KEY in current node.

Parameters

_data [in, required]: data to replace in current one
_key [in, required]: key to replace in current one

Return Value

A reference to current

tcnode_ref setKey(_IN tcnode_key _key)

Change the KEY in current node.

Parameters

_key [in, required]: key to replace in current one

Return Value

A reference to current

tcnode_ref setShortcut(_IN std::string _label)

Set a string shortcut to current node.

Parameters

_label [in, required]: a string to name the shortcut

Return Value

A reference to current node

BOOL subNodeExists(_IN tcnode_key _key)

Find a subnode starting search from current node. The search is recursive.

Parameters

_key [in, required]: key to search

Return Value

TRUE if found, otherwise FALSE

template<class _RECV> void transverse(_IN _RECV _receiver)

Execute a callback function with prototype void function(DATA _data, KEY _key, long _deep). From current node, transverse will call the callback for every subnode passing DATA, KEY and DEEP (or level).

Parameters

_receiver [in, required]: The callback function

Return Value

None

operators ==, != and =

== and != are used to compare single nodes. What makes a node equal or different from other is the internal id (getId). In the tCNode tree, each node has its own Id.

So, these two operators make sense when application keeps many references or pointers to a single node and needs to know if that pointer or reference means that node.

The copy assignment operator (=) copies everything: nodes, data sorters, shortcuts.

7. Conclusion

I have used tCNode template in some projects and I hope it be useful to you. I have others like tMemSection for memory allocation. If you want to know more, check out the following article:

http://www.codeproject.com/Articles/38353/tMemSection-Class-Keep-track-of-thousands-of-point

The tCNode class reference in this article is very summarized so if you have a question about how to implement/use it, you can email me @ developer@dataaction.com.br with Subject: tCNode Help.

Enjoy!

C++ tCNode template: An Indexed Multi-node Data Tree using STL Containers

Introduction

Contents

1. Introduction to tCNode

2. Multi-Thread and Synchronization Tip

3. Do Not Copy it, Reference it

4. Keys, Addresses and Shortcuts

5. Data Sorters: Sorting Values Regardless Keys

6. Explaining Article Sample

7. tCNode Reference

Construction

void addDataSorter(_IN std::string _name, _IN _SORTER _receiver, _IN BOOL _recursive = FALSE)

Parameters

Return Value

tcnode_ref addShortcut(_IN std::string _label, _IN std::vector<tcnode_key> &_parm)

Parameters

Return Value

tcnode_ref createNode(_IN tcnode_data _data, _IN tcnode_key _key)

Parameters

Return Value

std::vector<tcnode_ptr> &getAllSubNodesByKey(_OUT std::vector<tcnode_ptr> &_parm, _IN tcnode_key _key)

Parameters

Return Value

long getCount(void)

Parameters

Return Value

tcnode_data &getData(void)

Parameters

Return Value

std::vector<tcnode_ptr> &getDataSorterByName(_IN std::string _name, _OUT BOOL &_is_valid)

Parameters

Return Value

long getDeep(void)

Parameters

Return Value

tcnode_ptr getFirstSubNodeByKey(_IN tcnode_key _key)

Parameters

Return Value

long getId(void)

Parameters

Return Value

tcnode_key &getKey(void)

Parameters

Return Value

std::vector<tcnode_ptr> &getNextDataSorterInfo(_IN BOOL _begin, _OUT std::string &_name, _OUT BOOL &_recursive, _OUT _SORTER &_sortfunc, _OUT BOOL &_is_valid)

Parameters

Return Value

tcnode_ptr getNodeByFullAddress(_IN std::vector<tcnode_key> &_parm)

Parameters

Return Value

tcnode_ptr getNodeByKey(_IN tcnode_key _key)

Parameters

Return Value

tcnode_ptr getNodeByShortcut(_IN std::string _parm)

Parameters

Return Value

std::vector<tcnode_key> &getNodeFullAddress(_OUT std::vector<tcnode_key> &_parm)

Parameters

Return Value

tcnode_ref getParent(void)

Parameters

Return Value

tcnode_ref getRoot(void)

Parameters

Return Value

tcnode_shortcuts &getShortcuts(void)

Parameters

Return Value

tcnode_subnodes &getSubNodes(void)

Parameters

Return Value

BOOL hasSubNodes(void)

Parameters

Return Value

bool isRoot(void)

Parameters

Return Value

void refreshDataSorters(void)

Parameters

Return Value
