Save An Image Into SQL Server 2000 Database

Rate me:
Please Sign up or sign in to vote.
4.56/5 (92 votes)
24 Feb 2005CPOL2 min read 694.5K   14.1K   175   85
How to upload files to Web pages in ASP.NET? How to read an image from a database using ADO.NET and display it in a Web page?

Image 1

Abstract

.NET is the new distributed computing platform developed by Microsoft and ASP.NET is its programming model for web development. The intent of this article is to get a good experience in developing data driven ASP.NET Web Forms applications by means of a real world application. This application will teach you how to save an image file into a database and how to retrieve it from the database. It uses ADO.NET as the data access mechanism, C# as the development language, and SQL Server 2000 as the backend database.

Overview of the Solution

Normally, images are saved in the web server folder, not in the database; this is for larger file size category. In some cases like, in bank, for example, they scan the user signatures as image files and save that file into the database.

  • Database schema

    MS SQL Server 2000 is used as the backend database for this small demonstration. And I used a special data type in SQL Server called image. The image data type is used to save the image into the database.

  • Controls used in this application
    • System.Web.UI.HtmlControls.HtmlInputFile
    • System.Web.UI.WebControls.TextBox
    • System.Web.UI.WebControls.Button
  • Namespaces used in this application:
    C#
    using System.Data.SqlClient;
    using System.Drawing;
    using System.Data;
    using System.IO;
    using System.Drawing.Imaging;

Solution with Code

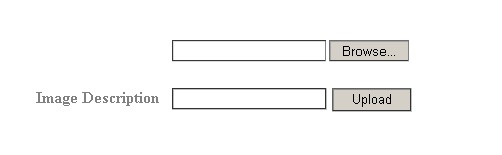

Use the HtmlInputFile class, which you can declare an instance of with an <input type="file" runat="server"/> tag. The following example is a complete ASPX file that lets a user upload an image file and a comment describing the image. The OnUpload method writes the image and the comment to a table named Pictures in a SQL Server database named iSense.

C#
// Source Code for Save the image file into the database

public void OnUpload(Object sender, EventArgs e)
{
    // Create a byte[] from the input file
    int len = Upload.PostedFile.ContentLength;
    byte[] pic = new byte[len];
    Upload.PostedFile.InputStream.Read (pic, 0, len);
    // Insert the image and comment into the database
    SqlConnection connection = new
      SqlConnection (@"server=INDIA\INDIA;database=iSense;uid=sa;pwd=india");
    try
    {
        connection.Open ();
        SqlCommand cmd = new SqlCommand ("insert into Image "
          + "(Picture, Comment) values (@pic, @text)", connection);
        cmd.Parameters.Add ("@pic", pic);
        cmd.Parameters.Add ("@text", Comment.Text);
        cmd.ExecuteNonQuery ();
    }
    finally
    {
        connection.Close ();
    }
}

The above created function is called using the onClick property of a button.

How do I read an image from a database using ADO.NET and display it in a Web page?

Here, I used the web page to display the image and not any other control. The following is the code for displaying the image from the database.

C#
private void Page_Load(object sender, System.EventArgs e)
{
    // Put user code to initialize the page here
    MemoryStream stream = new MemoryStream ();
    SqlConnection connection = new
      SqlConnection (@"server=INDIA\INDIA;database=iSense;uid=sa;pwd=india");
    try
    {
        connection.Open ();
        SqlCommand command = new
          SqlCommand ("select Picture from Image", connection);
        byte[] image = (byte[]) command.ExecuteScalar ();
        stream.Write (image, 0, image.Length);
        Bitmap bitmap = new Bitmap (stream);
        Response.ContentType = "image/gif";
        bitmap.Save (Response.OutputStream, ImageFormat.Gif);
    }
    finally
    {
        connection.Close ();
        stream.Close ();
    }
}

The GDI+ functions offer a rich set of features for managing and modifying image data. This article's examples offer only a glimpse into the functionality you can leverage using the classes available in the System.Drawing and System.Drawing.Imaging namespaces. For example, you can develop applications for storing and managing image files on the Web, or you can provide a simple, easily deployed application that enables users to manipulate images.

How to run this application? First, create a virtual directory and put the project files into the virtual directory. And then change the server name, database name, and table name in the following statement.

C#
SqlConnection connection = new SqlConnection
        ("server=localhost;database=mypictures;uid=sa;pwd=");

and publish the project to get the best results.
