ESJ: Extremely Simple JSON for C++

, 22 Sep 2015
Rate this:
Please Sign up or sign in to vote.
Adding cross-platform round-trip JSON serialization to C++ classes

Introduction

ESJ is a JSON mapper for C++ with modest compiler requirements (No C++11) and zero reliance on 3rd party libraries. It is a very light-weight, easy to use system for inter-operating with web and database services. ESJ can be quickly added to existing code thus generating robust and well-formed JSON data.

JSON (Javascript Object Notation) has become the format of choice for Web based data exchange. JSON is very expressive, easy to parse and read, and of course, has an extremely good fit with the JavaScript language itself. In addition to its ubiquity in AJAX (or more accurately AJAJ) contexts, JSON is also a great fit with Web-socket based communication.

Less obviously perhaps, JSON is also very useful for persistent storage in suitably enabled databases. See PostgreSQL and MonetDB for two excellent examples of JSON database support.

Possibly more unusually, the code has been deployed in embedded environments (via mbed on Freescale ARM Cortex-M4 K64F parts), greatly simplifying Web-socket data exchange for 'Internet of Things' devices.

The attached ZIP file includes projects for Visual Studio (2012) and XCode (Clang). The code is also warning free with g++, the on-line mbed compiler, as well as with the Keil ARM compiler

The code is also hosted on Github. If you have any contributions or fixes you'd like to share, please do so via the ESJ repository.

Background

For those unfamiliar with JSON, do visit http://www.json.org to see the language specification and links to a great variety of other resources, including language bindings, useful documentation, tools and the like.

Another extremely useful web resource is the JSON "lint" tool at http://jsonlint.com/. This proved invaluable during the development of ESJ, so thanks to all concerned.

The motivation for this project was the need to be able to quickly and accurately generate JSON from existing C++ code for both JavaScript and database consumers. There are a number of libraries which attempt to mimic JavaScript's dynamic typing and flexible object structure in C++, providing bi-directional JSON serialization via the same. This is quite the reverse of the approach taken by ESJ - here the intention is to maximize the benefits of C++'s strong, static typing in providing well-formed, highly strongly structured content.

Using the Code

Let us start with the canonical example for JSON serialization.

//-----------------------------------------------------------------------------
// Code support required for serialization.
class JSONExample
{
public:
    // to be JSON'ised
    std::string text;
public:
    // each class requires a public serialize function
    void serialize(JSON::Adapter& adapter)
    {
        // this pattern is required
        JSON::Class root(adapter,"JSONExample");
        // this is the last member variable we serialize so use the _T variant
        JSON_T(adapter,text);
    }
};
  1. #include "json_writer.h"
  2. #include "json_reader.h"
  3. For each class you wish to serialize, add a public member function with a signature identical to that below: void serialize(JSON::Adapter& adapter)
  4. Inside serialize(), add a single declaration: JSON::Class root(adapter,"JSONExample");
  5. For each member variable, you wish to serialize, add a single declaration using the JSON_E or JSON_T macro. Given a std::string member called text, we have JSON_T(adapter,text);
  6. Finally use the templated JSON::producer() and JSON::consumer() functions as below:
// demonstrate how to first produce and then consume JSON strings
int main(int argc,char* argv[])
{
    // try/catch omitted for brevity
    // The JSON enabled class as above
    JSONExample source;
    source.text = "Hello JSON World";
    // create JSON from a producer
    std::string json = JSON::producer<JSONExample>::convert(source);
    // and then create a new instance from a consumer ...
    JSONExample sink = JSON::consumer<JSONExample>::convert(json);
    // we are done ...
}

and that is it. The results of the serialization process can be seen below:

{"JSONExample":{"text":"Hello JSON World"}}

That pretty much covers the essentials. Now allow me to draw a somewhat more detailed picture of the code snippets so far.

In-box support is provided for the following C++ types:

  1. std::string maps to JSON string.
  2. std::wstring maps to JSON string with support for \UXXXX encoding and decoding.
  3. int maps to JSON number (ignores the fractional part when de-serializing).
  4. double also maps to JSON number.
  5. bool maps to JSON true or false.
  6. std::vector<T> maps directly to a JSON array. If T implements the correct serialize() function, then the serializer will work as expected for vectors of T.
  7. The serializer will also correctly handle nested serializable instances, thus allowing fairly complex constructs to be easily transformed to and from JSON.

As stated previously, the class needs to implement the serialize function. Members will be serialized when this function is called, with order, not surprisingly, following the order of the declarations. It is imperative that the JSON::Class instance always appears first as it controls some behind the curtains magic required to get object declarations out in the correct JSON format. As ever the use of macros is restricted to one-liners which are used for brevity. Somewhat annoyingly, there are 2 macros which are used to add the serialization code for member variables and one needs to ensure they are ordered correctly. The JSON_E (JSON Element) is used for serialization support for all members save the last. Why? A quick look at the resulting JSON shows that code called by JSON_E generates a trailing comma character whilst the JSON_T (JSON Terminator) does not. Thus the requisite pattern of declarations is:

JSON::Class root(adapter,"name of C++ class");
JSON_E(adaptor,first_member_variable);
JSON_E(adaptor,...);
JSON_T(adaptor,last_member_variable);

Any code which uses the JSON functions should be wrapped in try/catch blocks to ensure correct exception recovery.

Finally, note that all directly relevant classes and functions are in the JSON namespace.

Security

Very little contemporary code that is Internet related can ignore security issues. In this particular case, predictable attack vectors would be malformed or overlong strings for 'buffer-busting' or illegal character sequences that might end up as executable code.

The JSON scanner can be set to accept a maximum length string which helps mitigate resource-exhaustion type attacks. Character conversions, notably those from escaped hexadecimal \uXXXX to UTF16 or UTF32 are carefully handled, with the decoder throwing exceptions if there are illegal codepoints or truncated sequences.

The JSON parser, which uses the recursive descent idiom, will obviously consume increasing amounts of stack when presented with a very deeply nested set of encodings. Although this condition is not explicitly checked in the parser, it is extremely easy to add: The JSON::Class constructor actually monitors the nesting of scopes and could throw an exception if an application-specific limit is reached.

No warnings or errors are generated when the test bed is compiled using Visual Studio's Code Analysis mode.

Points of Interest

ESJ is implemented as a set of C++ header files. This significantly reduces the complexities of cross-platform tool-chain management and the like. The principle files are of interest are:

  • json_adapter.h Contains the definition of the interface to, and key streaming functions for the JSON::Adapter serializer code.
  • json_writer.h Contains the implementations of the primitives for writing the supported types into a UTF8 string.
  • json_reader.h Implements the primitives for the reader.
  • json_lexer.h Contains a complete, stand-alone JSON tokeniser (useful in its own right, especially if you are operating in a really resource constrained environment).
  • stringer.h Light-weight and type-safe replacement for sprintf and friends which overloads operator << for creating formatted strings.

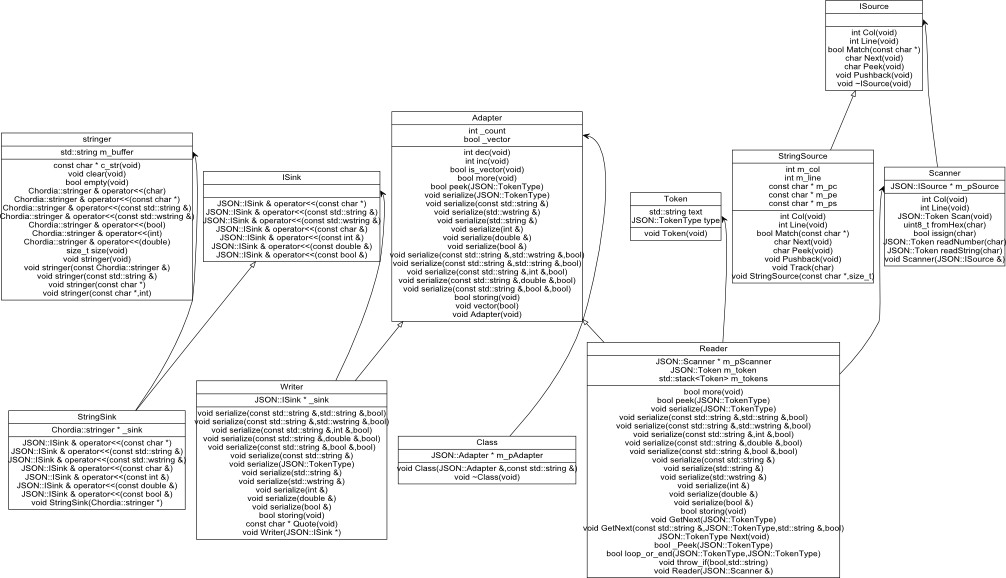

Principal components with associations rendered in slightly non-standard UML (These diagrams are included in the source distribution as SVG files for better viewing).

Structurally speaking, JSON is written to a ISink derived class by the Writer, in the hierarchy to hand, the sink is a StringSink. JSON is read from an ISource derived class, in this case a StringSource. As their names imply, the internal containers for the JSON content are actually std::strings which will be a very good fit in many cases. However, it is worth pointing out that this architecture is also pretty flexible. If, for example, you wish to write your JSON direct to a socket or a file (let us say to avoid potentially large amounts of buffering), then you simply need to inherit from the JSON::ISink class and implement the relevant operator<<() functions as shown in the UML class diagram above.

Subsidiary components:

The main principle at work here is combining a set of free functions, (generically called stream() and all implemented within the adapter class), with another set of overloaded virtual functions implemented within the Reader and Writer classes, both of which inherit from Adapter.

There are overloaded stream() functions for all of the core data types. Then there is a catch-all templated stream which expects its value parameter to implement the serialize() function. It is with this pattern of decomposition that the mechanism works.

// overloaded types for streaming primitives
void stream(Adapter& adapter,std::string& value)
void stream(Adapter& adapter,int& value);
void stream(Adapter& adapter,double& value);
void stream(Adapter& adapter,bool& value);

// templated stream function for all types implementing serialize()
template <typename T> void stream(Adapter& adapter,T& arg)
{
    // will fail if not implemented.
    arg.serialize(adapter);
}

Along with functions of one-arity, there is another overloaded set which will stream key/value pairs. In the case of the writer, the implementations are trivial, simply creating a correctly quoted string when required and appending (or outputting) the result to the destination. For example:

//---------------------------------------------------------------------
// write a key/value pair with optional continuation
virtual void serialize(const std::string& key,std::string& value,bool more)
{
    m_content << "\"" << key << Quote() << ':' << Quote();
    m_content << Chordia::escape(value) << Quote() << (more ? "," : "");
}

The equivalent read function works in concert with the JSON scanner like so:

//-----------------------------------------------------------------------------
// primitive to read type-checked key/value pair
virtual void serialize(const std::string& key,std::string& value,bool more)
{
    // see implementation details in next snippet
    GetNext(key,T_STRING,value,more);
}

//-----------------------------------------------------------------------------
// primitive to read type-checked key/value pair as in "count" : 123
void GetNext(const std::string& key,TokenType type,std::string& value,bool more)
{
    // expecting a string token for "key"
    GetNext(T_STRING);
    // checked key name matches parsed value
    throw_if(key != m_token.text,"key does not match");
    // next token
    GetNext(T_COLON);
    // get the next token and match type
    GetNext(type);
    // conversions from text are performed one level further up the stack
    value = m_token.text;
    // this has to be one of ,]}
    if (more)
    {
        Next();
    }
}

//-----------------------------------------------------------------------------
// core type checking primitive. throws if token type not matched
virtual void GetNext(TokenType type)
{
    // get the next token from the scanner
    TokenType next = Next();
    // does the expected token type match? throw if not
    throw_if(next != type,"GetNext: type mismatch");
}

The only really tricky bit in the implementation is the code required to support JSON arrays. This is again handled in the adapter and uses the primitives shown in the previous snippets. This is the only case in which reading and writing are asymmetric. Firstly, the reader has to correctly handle the case where it encounters an empty array [], so the reader uses the lexer/scanner's peek capabilities to check the next token and proceed accordingly:

// expecting "key"
adapter.serialize(key);
// expecting ':'
adapter.serialize(T_COLON);
// and next the opening '['
adapter.serialize(T_ARRAY_BEGIN);
// cope with empty arrays so we need look-ahead here
if (adapter.peek(T_ARRAY_END))
{
    // ']'
    adapter.serialize(T_ARRAY_END);
}
else
{
    // read the contents of the array
}

In Conclusion

It is useful to see how the C++ derived JSON is (correctly) represented within a JavaScript environment. The image below shows a JSON string that has been pasted into a Chrome console. The resulting JavaScript object (j) is shown in the debugger. Note that the Hiragana string has been correctly translated from its UNICODE representation.

None of the code should be controversial or compiler unfriendly. However users of older versions of Visual Studio may require a stdint.h clone to handle some of the uintN_t typedefs, which appear in some of the UTF8/UTF16/UTF32 conversion functions.

A final word on the example code: This is essentially a set of modest unit tests for each component. There is also a somewhat more complex example test_nesting() that demonstrates and tests the serialization of a pair of more complex classes, one containing a vector of the other. It is the output of this test which generates the JSON shown in the Chrome console above.

Links

History

  • 1.01 - 24th December, 2014
  • 1.02 - 24th January, 2014: Update to sync to Github. Fix problem with malformed quoting of unary int and double values
  • 1.03 - An updated tarball which fixes a nesting issue can be downloaded here: https://github.com/g40/esj/archive/master.zip
  • 1.04 - Fix to handle std::vector<T> of JSON primitive types (string/number/bool) available here: https://github.com/g40/esj/archive/master.zip
  • 1.05 - Updated ZIP to mirror the latest code on Github. Adds another test case suggested by Sebastian F.

License

This article, along with any associated source code and files, is licensed under The MIT License
